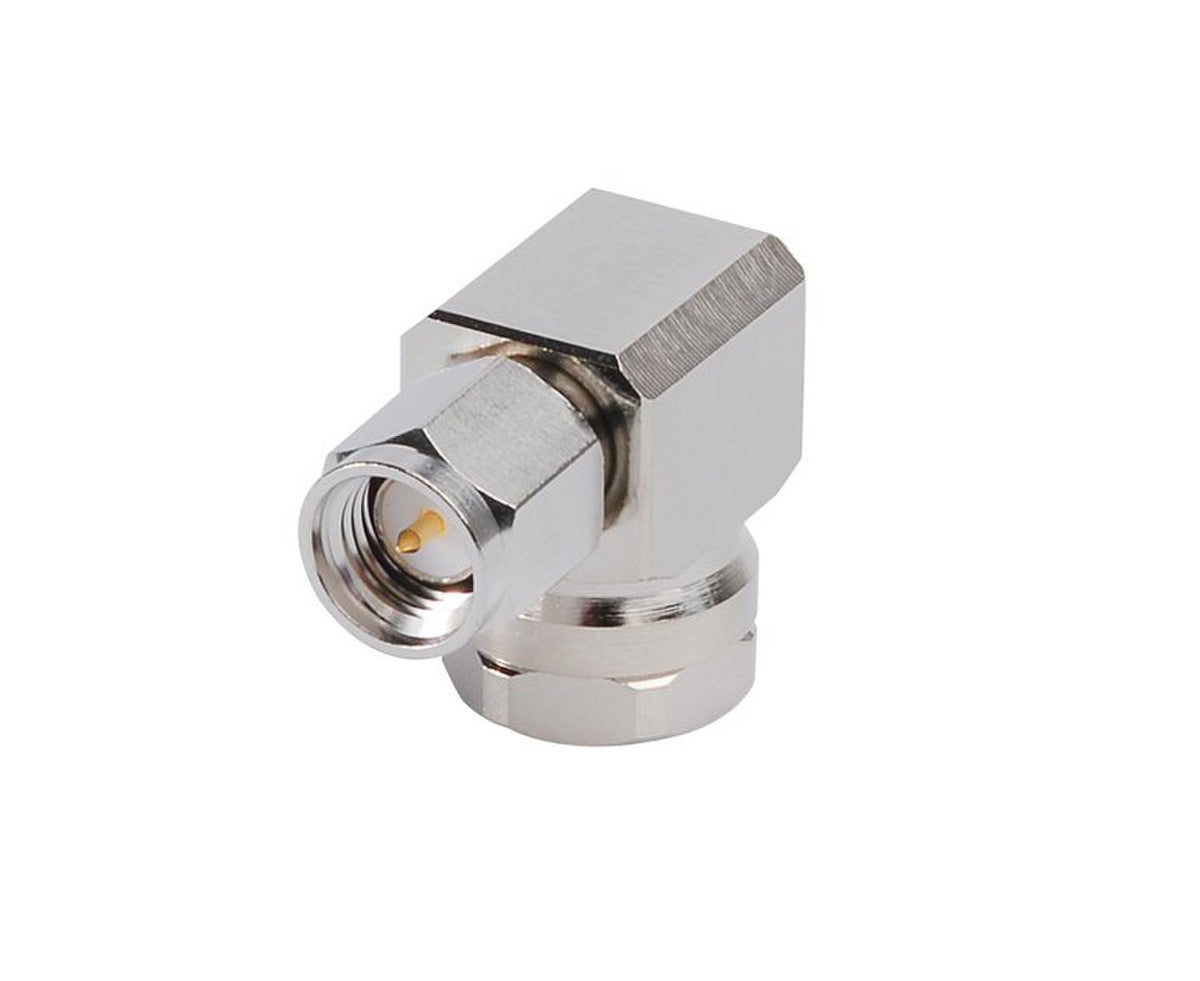

CommScope F1TSR Right Angle SMA-Male Connector for 1/4'' FSJ1-50A Cable

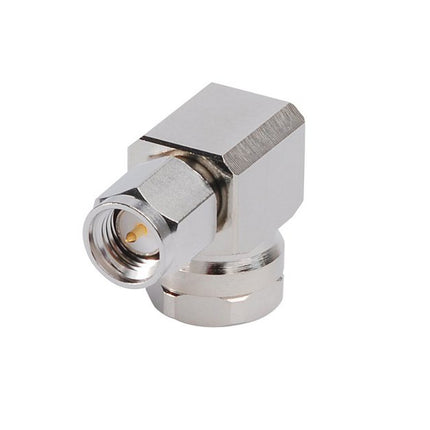

CommScope F1TSR Right Angle SMA-Male Connector for 1/4'' FSJ1-50A Cable

Sold out

Item ID:
168018439
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
F1TSR
The CommScope F1TSR is a high-quality right angle SMA-Male Connector designed specifically for 1/4'' FSJ1-50A cable. With its robust construction and superior electrical properties, the F1TSR connector guarantees dependable connectivity and signal integrity.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

The CommScope F1TSR is a high-quality right angle SMA-Male Connector designed specifically for 1/4'' FSJ1-50A cable. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the F1TSR connector guarantees dependable connectivity and signal integrity.

Product Features:

  • The inner contact is attached using a solder method and gold plating on the inner contact.
  • This connector features an SMA Male interface and has a right-angle mounting angle.
  • The outer contact is attached using a tab-flare method and has trimetal plating on the outer contact.
  • This connector provides an average power of 0.4 kW at 900 MHz.
  • The cable impedance is 50 ohms and can handle a DC test voltage of 1000 V.
  • The maximum inner contact resistance is 3 mOhm and a minimum insulation resistance of 5000 MOhm.
  • This connector operates in the frequency band of 0 – 12000 MHz.
  • The maximum outer contact resistance is 2.5 mOhm and can handle a peak power of up to 5 kW.
  • The maximum RF operating voltage is 500 V (vrms) and the connector retention tensile force is 449.27 N.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope F1TSR Right Angle SMA-Male Connector

Documents:

CommScope F1TSR Connector - Datasheet CommScope F1TSR Connector - Installation Guide

Videos:

CommScope F1TSR Connector - Installation Guide

Product Specifications

MPN F1TSR
Brands CommScope
Cable supported FSJ1-50A
Cable type FSJ1-50A
Component type Connector
Connector SMA(M)
Connector end a SMA (M)
Height 1.14
Impedance ohm 50
Inner attachment Other
GTIN/EAN 729198761394
Length 2.11
Max frequency mhz 12000
Min frequency mhz 0
Mounting angle Right Angle
Prep toolset MCPT-1412
Width 1.7
