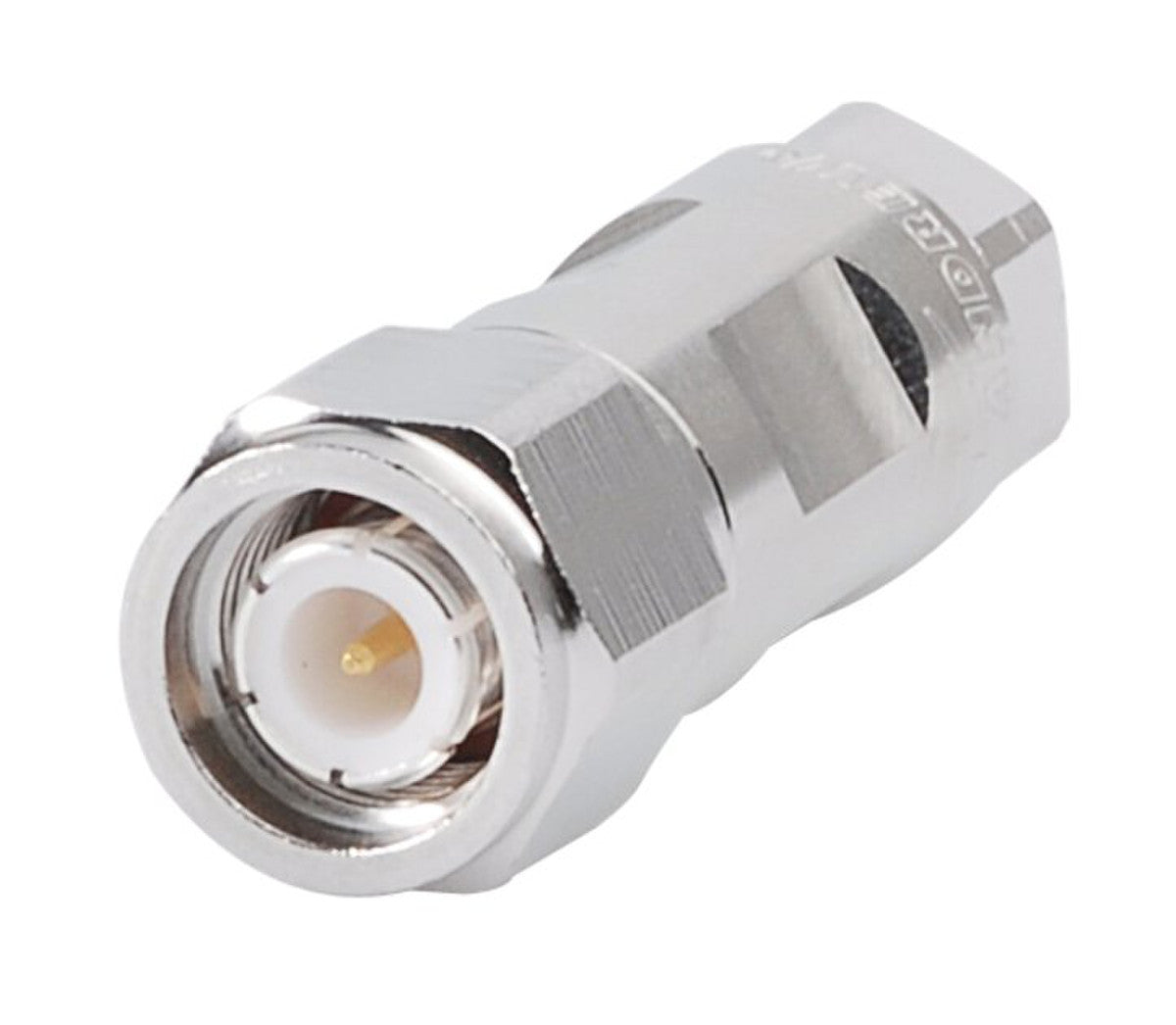

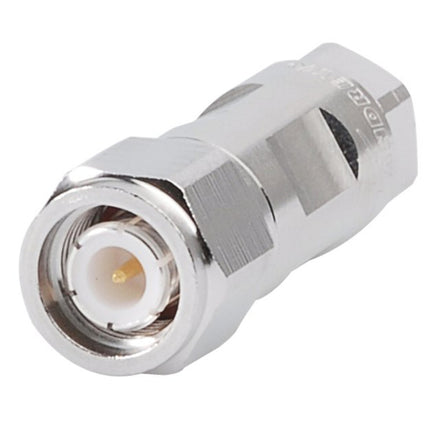

CommScope F1TTM-C TNC-Male Connector for 1/4'' FSJ1-50A Cable

CommScope F1TTM-C TNC-Male Connector for 1/4'' FSJ1-50A Cable

Sold out

Item ID:
168018440
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
F1TTM-C
Send Request for Quote (RFQ)
The CommScope F1TTM-C is a high-quality TNC-Male Connector designed specifically for 1/4'' FSJ1-50A cable. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the F1TTM-C connector guarantees dependable connectivity and signal integrity.
Regular price $0.00
Regular price $0.00 Sale price $0.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope F1TTM-C is a high-quality straight TNC-Male Connector designed specifically for 1/4'' FSJ1-50A cable.  The inner contact is captivated and gold plating on the inner contact while outer contact is self-clamping and has trimetal plating on the outer contact.With its robust construction and superior electrical properties, the F1TTM-C connector guarantees dependable connectivity and signal integrity.

Product Features:

  • This connector is not pressurizable and it provides a 3rd order IMD at frequency of -112 dBm at 910 MHz.
  • It provides an average power of 0.4 kW at 900 MHz.
  • The cable impedance is 50 ohms and can handle a DC test voltage of 1500 V.
  • The maximum inner contact resistance is 1.5 mOhm and minimum insulation resistance of 5000 MOhm.
  • This connector operates in the frequency band of 0 – 10000 MHz.
  • The maximum outer contact resistance is 0.4 mOhm and can handle a peak power of up to 5 kW.
  • The maximum RF operating voltage is 500 V (vrms).
  • It provides shielding effectiveness of -110 dB.
  • The connector retention tensile force is 449.27 N and it has a coupling nut proof torque of 1.7 N-m.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope F1TTM-C TNC-Male Connector

Documents:

CommScope F1TTM-C Connector - Datasheet CommScope F1TTM-C Connector - Installation Guide
