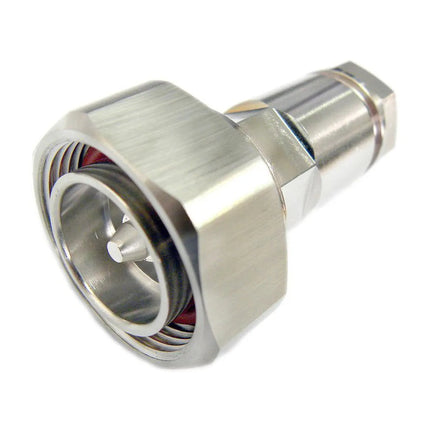

CommScope F2TDM-PL 7-16 DIN-Male Positive Lock Connector for 3/8" FSJ2-50 Cable

CommScope F2TDM-PL 7-16 DIN-Male Positive Lock Connector for 3/8" FSJ2-50 Cable

Sold out

Item ID:
168018239
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
F2TDM-PL
Send Request for Quote (RFQ)
The CommScope F2TDM-PL is a high-quality 7-16 DIN Male Positive Lock Connector designed for 3/8" FSJ2-50 cable. The inner contact is captivated and plated with silver, while the outer contact is attached by crush-flare and plated with trimetal.
Regular price $46.80
Regular price $0.00 Sale price $46.80
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope F2TDM-PL is a high-quality 7-16 DIN Male Positive Lock Connector designed for 3/8" FSJ2-50 cable. The inner contact is captivated and plated with silver, while the outer contact is attached by crush-flare and plated with trimetal.

Product Features:

  • The body style is straight, and the cable family is FSJ2-50.
  • The interface is a 7-16 DIN Male connector with a straight mounting angle.
  • The typical insertion loss coefficient is 0.05, and the average power at 900 MHz is 0.7 kW.
  • Both the cable and connector have an impedance of 50 ohms.
  • The DC test voltage is 2300 V, with a maximum RF operating voltage of 813 V (vrms).
  • The maximum inner contact resistance is 0.4 mOhm, and the maximum outer contact resistance is 1.5 mOhm.
  • The minimum insulation resistance is 10000 MOhm and operating frequency band ranges from 0 to 8000 MHz.
  • The peak power is a maximum of 13.2 kW, and the shielding effectiveness is -110 dB.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1 x CommScope F2TDM-PL 7-16 DIN Male Positive Lock Connector for 3/8" FSJ2-50 Cable.

Documents:

CommScope F2TDM-PL Connector - Datasheet CommScope F2TDM-PL Connector - Installation Guide
