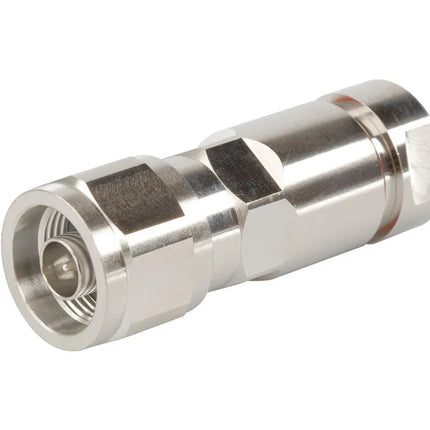

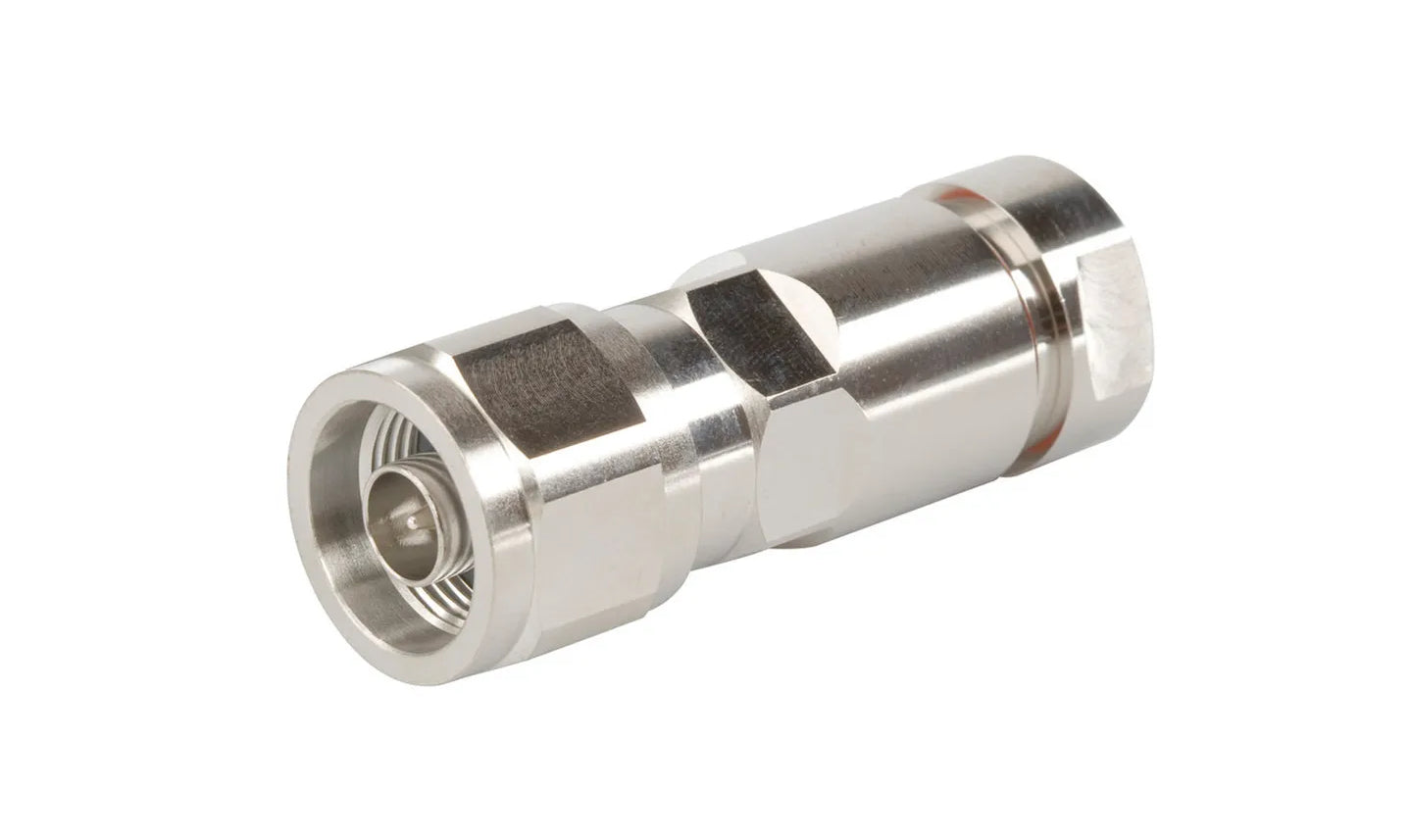

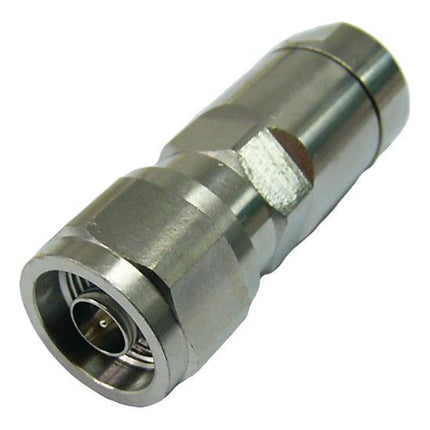

The CommScope N-Male Positive Lock Connector for use with 3/8" FSJ2-50 cables is engineered to provide reliable and efficient connectivity in various demanding environments. It is designed for use with the FSJ2-50 cable family.

Product Features:

• This high-performance RF connector features a straight body style.
• It has a captivated inner contact attachment with silver plating.
• The connector interface is N Male, with a straight mounting angle.
• Engineered for optimal impedance matching, both the cable and connector maintain a 50-ohm impedance.
• It operates within a 0–6000 MHz frequency band, with a DC test voltage of 2300 V.
• A maximum peak power handling of 10 kW.
• Built for durability, the connector offers -110 dB shielding effectiveness.
• It meets immersion standards, supporting depths of 1 meter when mated.

Application Areas:

• Ideal for use in telecom networks and infrastructure.
• Suitable for broadcasting applications requiring reliable signal transmission.
• Perfect for industrial environments where robust connectivity is crucial.
• Ensures reliable connections in data center applications.

In the Box:

• 1 x CommScope F2TNM-PL N-Male Positive Lock Connector for 3/8" FSJ2-50 Cable

Documents:

CommScope F2TNM-PL Connector - Datasheet CommScope F2TNM-PL Connector - Installation Guide
