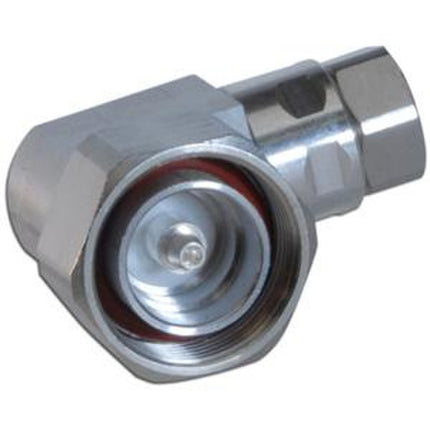

The CommScope F4DR-C is a high-quality right angle 7-16 DIN-Male Connector designed specifically for 1/2'' FSJ4-50B cable. The inner contact is captivated and gold-silver plating on the inner contact while outer contact is self-clamping and has trimetal plating on the outer contact. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the F4DR-C connector guarantees dependable connectivity and signal integrity.

Product Features:

• This connector is not pressurizable and it provides a 3rd order IMD at frequency of -120 dBm at 910 MHz.
• It provides an average power of 01 kW at 900 MHz.
• The cable impedance is 50 ohms and can handle a DC test voltage of 2500 V.
• The maximum inner contact resistance is 0.8 mOhm and minimum insulation resistance of 5000 MOhm.
• This connector operates in the frequency band of 0 – 7500 MHz.
• The maximum outer contact resistance is 1.5 mOhm and can handle a peak power of up to 15.6 kW.
• The maximum RF operating voltage is 884 V (vrms).
• It provides shielding effectiveness of -110 dB.
• The connector retention tensile force is 444.82 N and it has a coupling nut proof torque of 24.86 N-m.

Application Areas:

• This connector is ideal for use in telecom networks and infrastructure.
• It provides reliable signal transmission for broadcasting applications.
• It is perfect for industrial environments where robust connectivity is crucial.
• This connector ensures reliable connections in data center applications.

In the Box:

• 1x CommScope F4DR-C Right Angle 7-16 DIN-Male Connector
