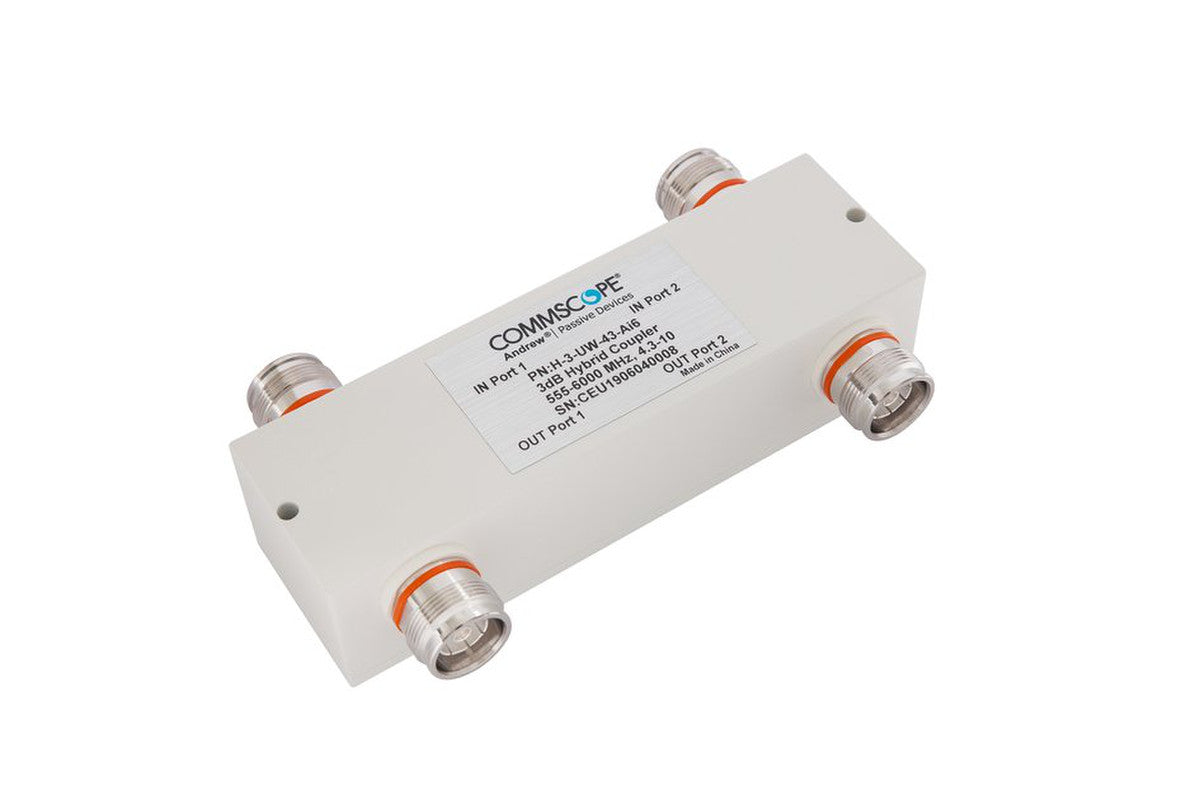

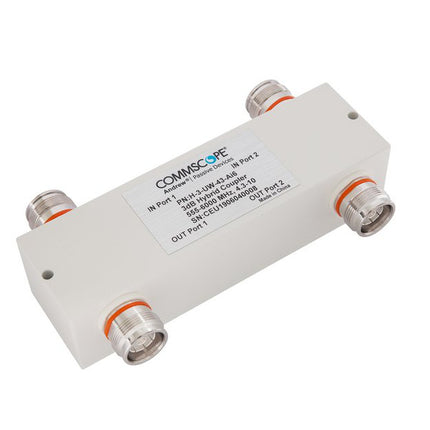

The CommScope H-3-UW-43-AI6 Low PIM Air Dielectric Hybrid Coupler is a versatile, high-performance device designed for a frequency range of 555-6000 MHz. This hybrid coupler is suitable for both indoor and outdoor applications, ensuring reliable performance in various environments.

Product Features:

• The inner contact is plated with silver.
• The outer contact is plated with trimetal.
• The device can handle an average power of up to 200 W.
• It has a coupling value of 3.1 dB.
• The impedance is 50 ohms and VSWR is 1.25.
• The operating frequency band ranges from 555 to 6000 MHz.
• The peak power handling capacity is 1 kW.
• The maximum reflected power is 500 W.

Application Areas:

• This hybrid coupler is ideal for use in telecom networks and infrastructure.
• It is suitable for broadcasting applications that require low PIM and high power handling.
• The device is perfect for industrial environments where robust connectivity is crucial.
• It ensures reliable connections in data center applications.
• It is applicable in outdoor installations where environmental protection is essential.

In the Box:

• 1x CommScope H-3-UW-43-AI6 Low PIM Air Dielectric Hybrid Coupler

Documents:

CommScope Hybrid Matrix - Datasheet
