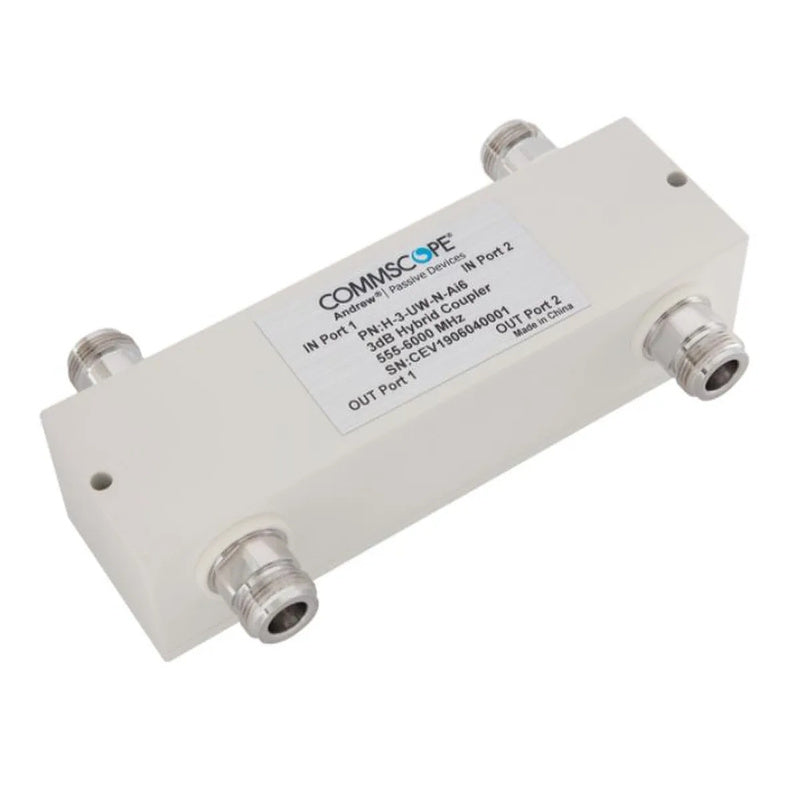

The CommScope H-3-UW-N-AI6 Air Dielectric Hybrid Coupler is a versatile, high-performance device designed for a frequency range of 555-6000 MHz. This hybrid coupler is suitable for both indoor and outdoor applications, ensuring reliable performance in various environments.
Product Features:
- The inner contact is plated with silver.
- The outer contact is plated with trimetal.
- The device can handle an average power of up to 200 W.
- It has a coupling value of 3.1 dB.
- The impedance is 50 ohms.
- The operating frequency band ranges from 555 to 6000 MHz.
- The peak power handling capacity is 1 kW.
- The VSWR is 1.25.
Application Areas:
- This hybrid coupler is ideal for use in telecom networks and infrastructure.
- It is suitable for broadcasting applications that require low PIM and high power handling.
- The device is perfect for industrial environments where robust connectivity is crucial.
- It ensures reliable connections in data center applications.
- It is applicable in outdoor installations where environmental protection is essential.
In the Box:
- 1x CommScope H-3-UW-N-AI6 Hybrid Coupler
Documents:
CommScope Hybrid Matrix - Datasheet
