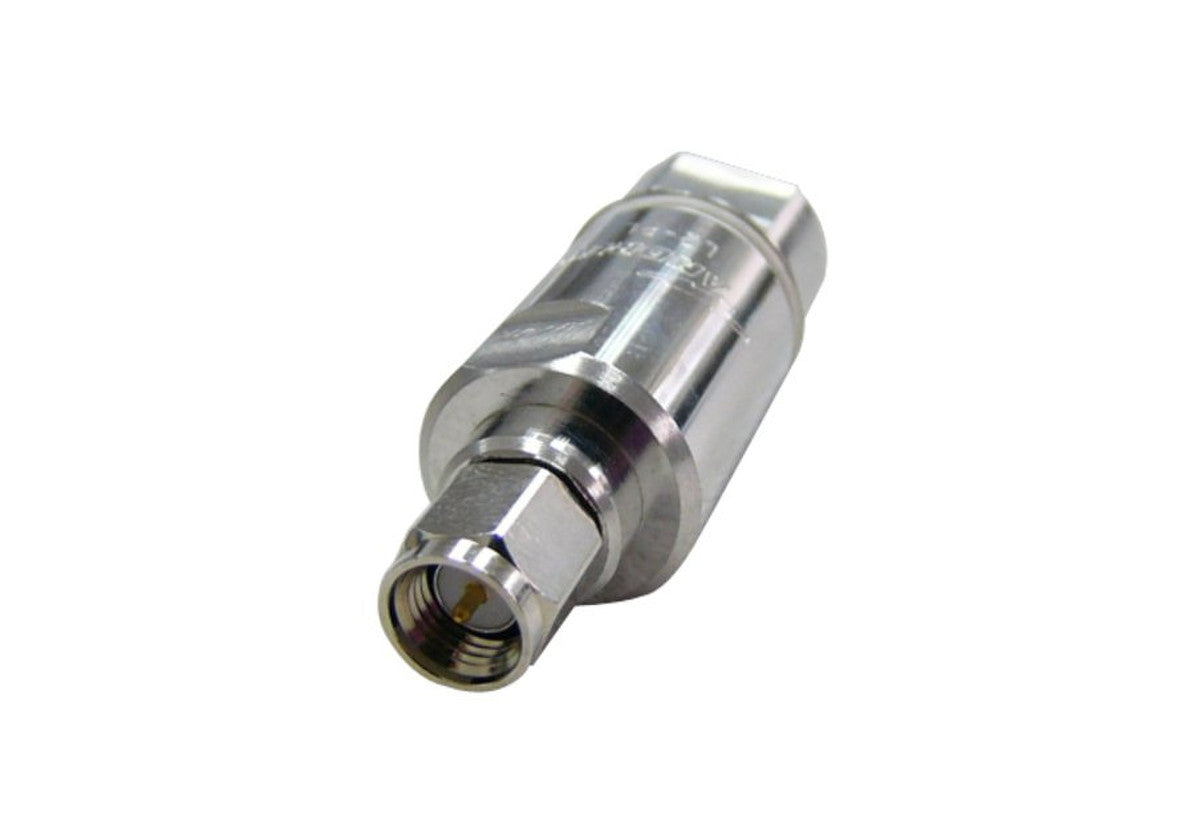

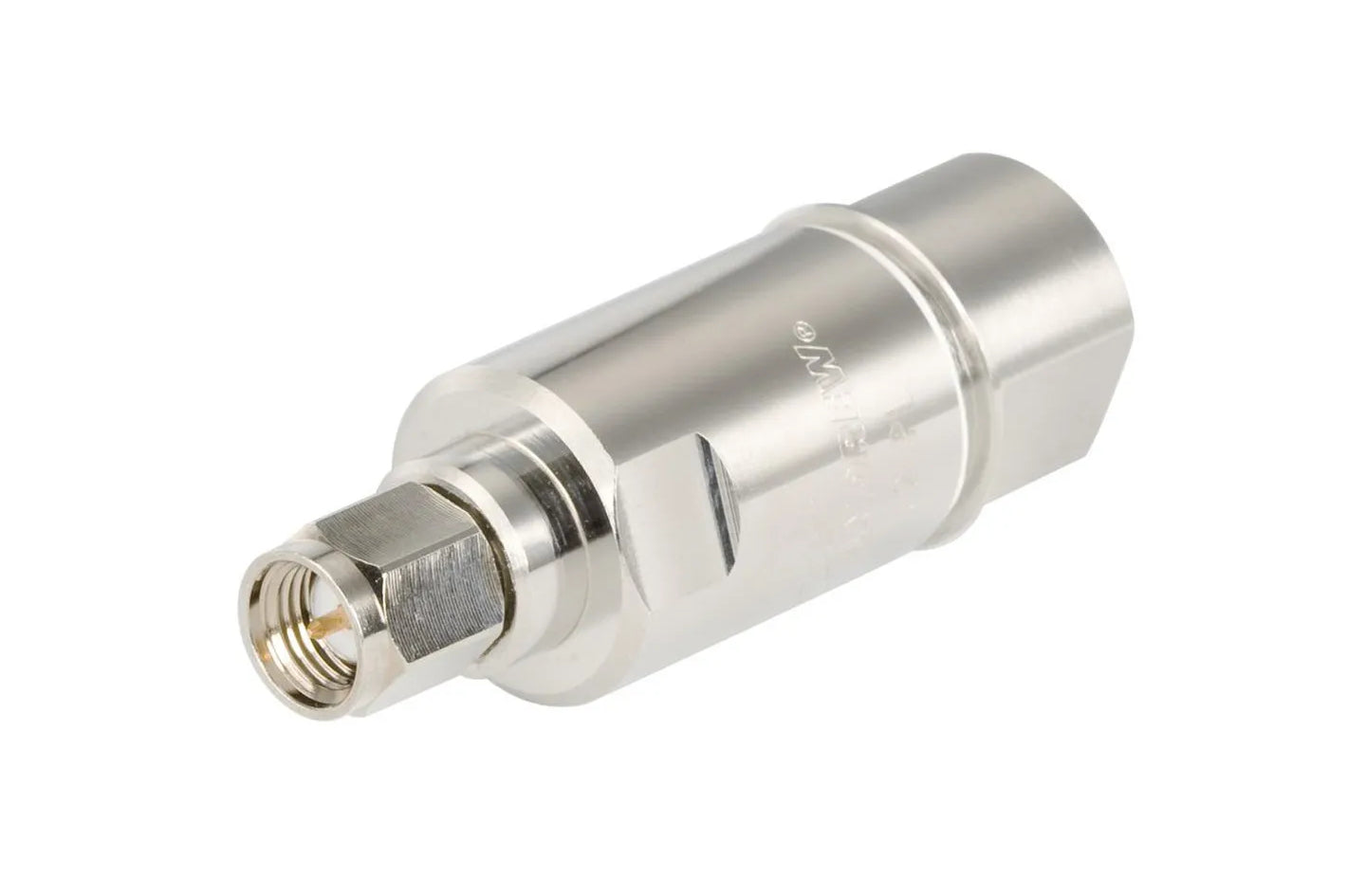

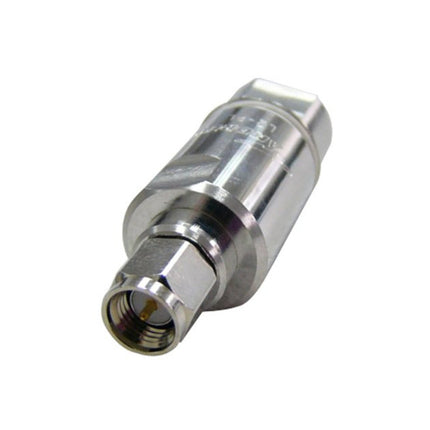

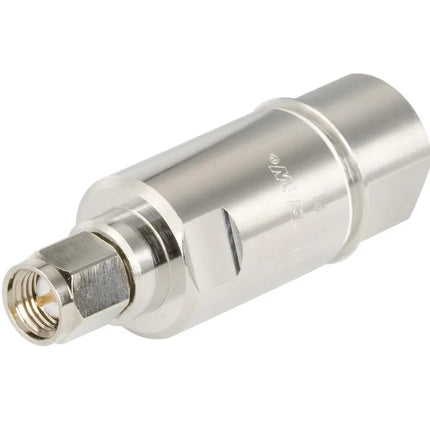

CommScope L2TSM-PL SMA-Male Positive Lock Connector for 3/8'' LDF2-50 Cable

    CommScope L2TSM-PL SMA-Male Positive Lock Connector for 3/8'' LDF2-50 Cable

      Product form
      Item ID:
      168018241
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      L2TSM-PL

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The CommScope SMA-Male Positive Lock Connector for LDF2-50 Cable, model L2TSM-PL, is a high-quality RF connector engineered for seamless compatibility with 3/8'' LDF2-50 cables. Featuring an SMA Male interface with a straight mounting angle, this connector offers easy integration into various RF applications.

      Price on Application

      Product Description

      The CommScope SMA-Male Positive Lock Connector for LDF2-50 Cableis a high-quality RF connector engineered for seamless compatibility with 3/8'' LDF2-50 cables. Featuring an SMA Male interface with a straight mounting angle, this connector offers easy integration into various RF applications.

      Product Features:

      • The body style is straight, and the cable family is LDF2-50.
      • The inner contact is captivated and plated with gold.
      • The outer contact is attached by ring-flare and plated with trimetal.
      • The interface is an SMA Male connector with a straight mounting angle.
      • The typical insertion loss coefficient is 0.05, and the average power at 900 MHz is 0.7 kW.
      • Both the cable and connector have an impedance of 50 ohms.
      • The minimum insulation resistance is 5000 MOhm and operating frequency band ranges from 0 to 13500 MHz.
      • The peak power is a maximum of 5 kW, and the shielding effectiveness is -110 dB.

      Application Areas:

      • Ideal for use in telecom networks and infrastructure.
      • Suitable for broadcasting applications requiring reliable signal transmission.
      • Perfect for industrial environments where robust connectivity is crucial.
      • Ensures reliable connections in data center applications.

      In the Box:

      • 1 x CommScope L2TSM-PL SMA-Male Positive Lock Connector for LDF2-50 Cable.

      Documents:

      CommScope L2TSM-PL Connector - Datasheet CommScope L2TSM-PL Connector - Installation Guide

      Product Specifications

      MPN L2TSM-PL
      Brands CommScope
      Cable supported LDF2-50
      Component type Wireless and radiating connector
      Connector end a SMA (M)
      Durability 25 cycles
      Height 1.626
      Impedance ohm 50
      Inner attachment Other
      Insertion loss db 0.05
      GTIN/EAN 888063242939
      Length 4.47
      Max frequency mhz 13500
      Min frequency mhz 0
      Mounting angle Straight
      Nominal size 3/8 in
      Operating temperature c -55 to +85
      Prep toolset CPT-E2L2N
      Pressurizable No
      Torque nm 2.7
      Width 1.626
