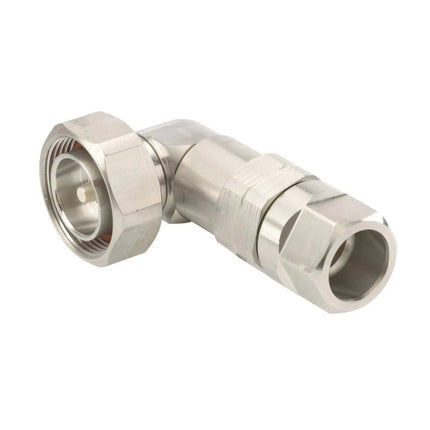

CommScope L4DR-PS Right Angle 7-16 DIN-Male Positive Stop Connector for 1/2'' LDF4-50A Cable

CommScope L4DR-PS Right Angle 7-16 DIN-Male Positive Stop Connector for 1/2'' LDF4-50A Cable

Available

Item ID:
168018251
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
L4DR-PS
Send Request for Quote (RFQ)
The CommScope Right Angle 7-16 DIN-Male Positive Stop Connector for 1/2'' LDF4-50A Cable is a high-quality RF connector engineered for seamless compatibility with 1/2'' LDF4-50A cables. Featuring an R/A 7-16 DIN-Male interface with a straight mounting angle, this connector offers easy integration into various RF applications.
Regular price $50.75
Regular price $0.00 Sale price $50.75
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope Right Angle 7-16 DIN-Male Positive Stop Connector for 1/2'' LDF4-50A Cable is a high-quality RF connector engineered for seamless compatibility. The body style is right angle, and the cable family is LDF4-50A. Featuring an R/A 7-16 DIN-Male interface with a straight mounting angle, this connector offers easy integration into various RF applications.

Product Features:

  • The inner contact is captivated and plated with gold or silver.
  • The outer contact is attached by self-flare and plated with trimetal.
  • The interface is a 7-16 DIN Male connector with a right-angle mounting, and it is not pressurizable.
  • The 3rd order IMD at 910 MHz is -120 dBm, tested with two +43 dBm carriers.
  • The typical insertion loss coefficient is 0.05, and the average power at 900 MHz is 1.0 kW.
  • Both the cable and connector have an impedance of 50 ohms.
  • The DC test voltage is 2500 V, with a maximum RF operating voltage of 884 V (vrms).
  • The minimum insulation resistance is 5000 MOhm and operating frequency band ranges from 0 to 7500 MHz.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1 x CommScope L4DR-PS Right Angle 7-16 DIN Male Positive Stop Connector for 1/2'' LDF4-50A Cable

Documents:

CommScope L4DR-PS Connector - Datasheet CommScope L4DR-PS Connector - Installation Guide
