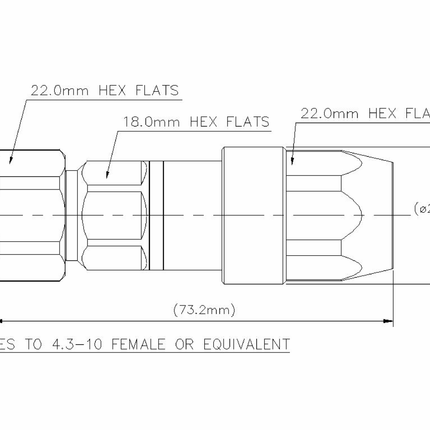

CommScope L4HM-D 4.3-10-Male Connector for 1/2'' AL4RPV-50, LDF4-50A and HL4RPV-50 Cables

CommScope L4HM-D 4.3-10-Male Connector for 1/2'' AL4RPV-50, LDF4-50A and HL4RPV-50 Cables

On backorder

Item ID:
168018458
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
L4HM-D
Send Request for Quote (RFQ)
The Commscope L4HM-D is a high-quality 4.3-10 Male Connector designed specifically for 1/2'' AL4RPV-50, LDF4-50A, and HL4RPV-50 cables.
Regular price $25.35
Regular price $0.00 Sale price $25.35
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

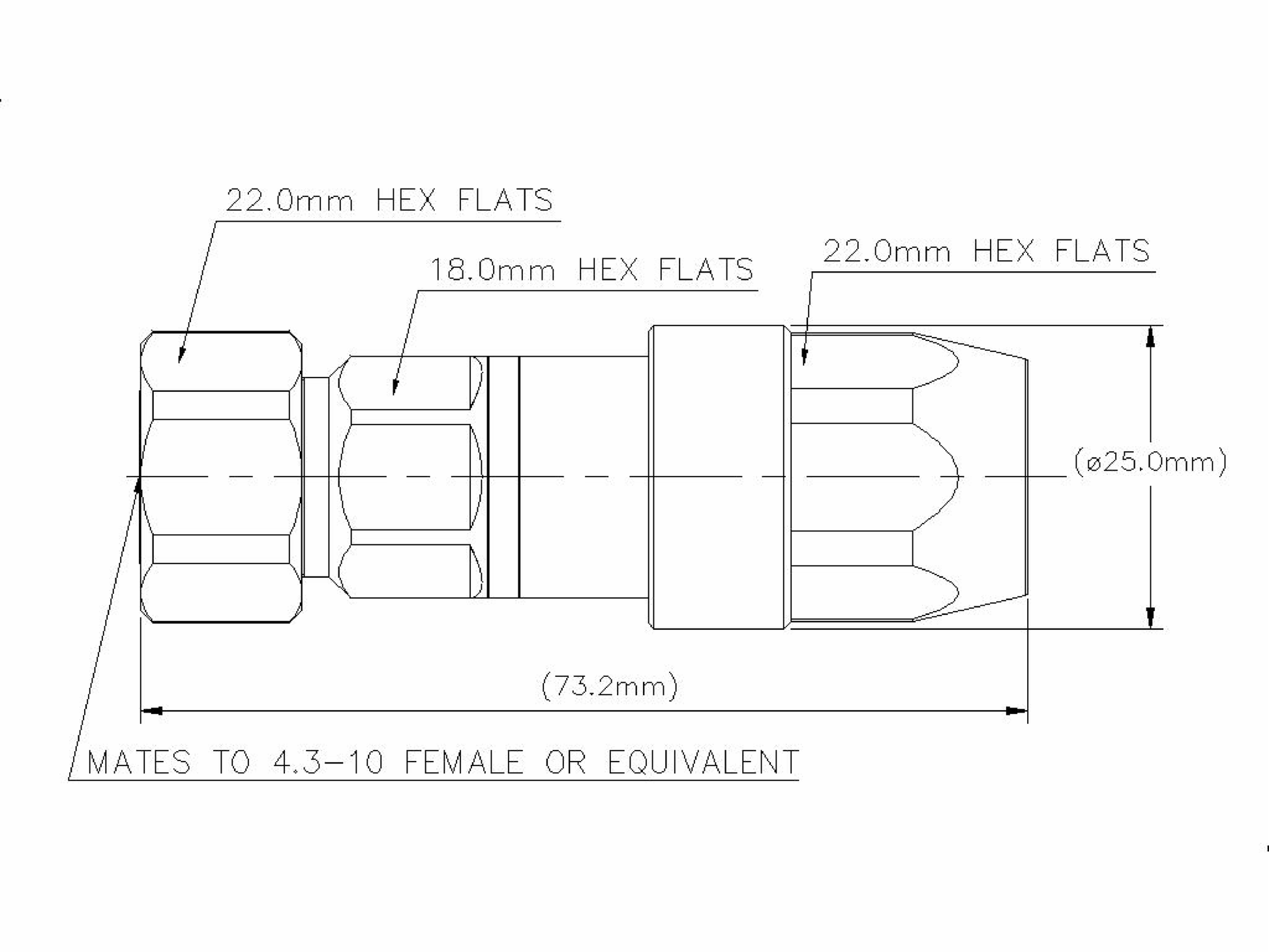

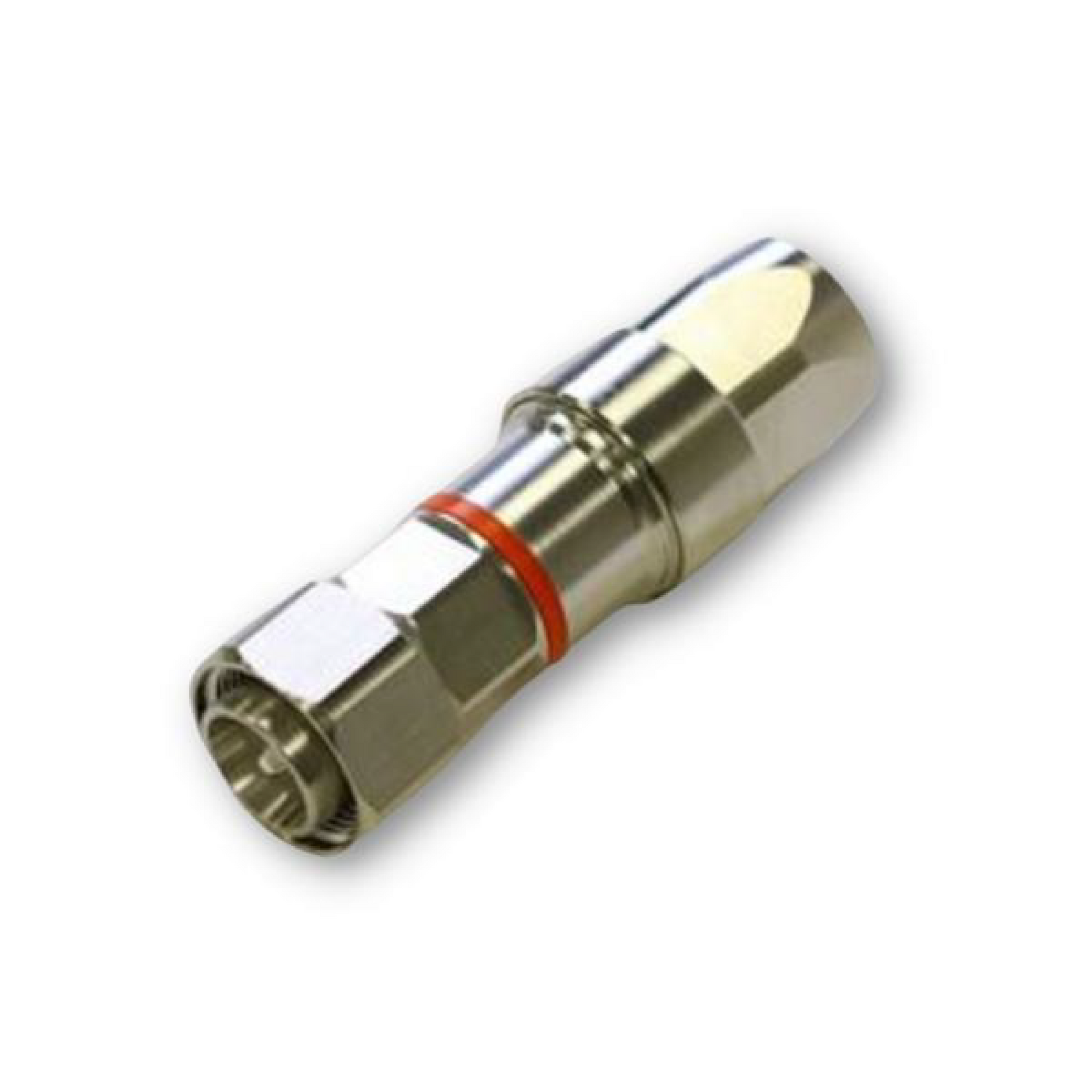

The CommScope L4HM-D is a high-quality, straight body style 4.3-10 Male Connector designed specifically for 1/2'' AL4RPV-50, LDF4-50A, and HL4RPV-50 cables. The inner contact is captivated and silver plating on the inner contact while the outer contact is attached using a clamp method and trimetal plating on the outer contact. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the L4HM-D connector guarantees dependable connectivity and signal integrity.

Product Features:

  • It has a typical insertion loss coefficient of 0.05 and provides an average power of 0.6 kW at 900 MHz.
  • The cable impedance is 50 ohms and can handle a DC test voltage of 2500 V.
  • The maximum inner contact resistance is 1 mOhm and minimum insulation resistance of 5000 MOhm.
  • This connector operates in the frequency band of 0 – 8800 MHz.
  • The maximum outer contact resistance is 1 mOhm and it can handle a peak power of up to 22.5 kW.
  • The maximum RF operating voltage is 884 V.
  • The connector retention tensile force is889.64 N and coupling nut proof torque is 5.42 N-m.
  • It has an immersion depth of 1 m and this test is conducted with the connector mated.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope L4HM-D 4.3-10 Male Connector

Documents:

CommScope L4HM-D Connector - Datasheet CommScope L4HM-D Connector - Installation Guide

Videos:

CommScope L4 Connector installation for HELIAX LDF4 50A cable CommScope L4HM-D Connector - Installation Guide

Product Specifications

MPN L4HM-D
Brands CommScope
Cable supported LDF4-50A, AL4RPV-50, HL4RPV-50
Cable type LDF4-50A
Cable type connectors FXL780
Component type Connector
Connector 4.3-10(M)
Connector end a 4.3-10 (M)
Height 5
Impedance ohm 50
Inner attachment Other
GTIN/EAN 729198323264
Length 7.31
Max frequency mhz 8800
Min frequency mhz 0
Mounting angle Straight
Prep toolset CPT-L4-D
Width 2.49
