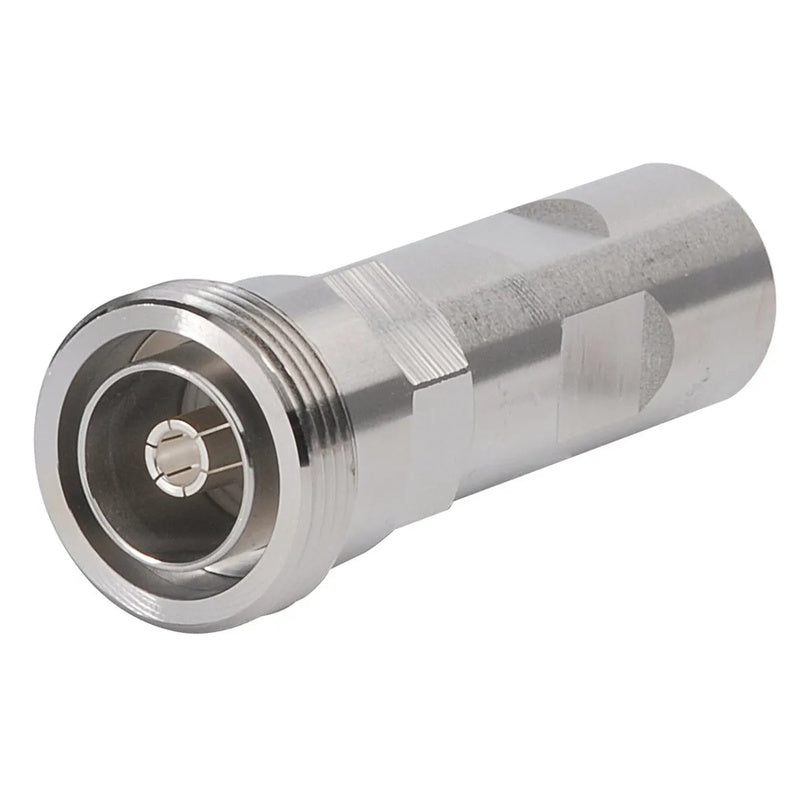

The CommScope L4TDF-PSA is a high-quality, straight body style 7-16 DIN-Female Positive Stop Connector designed specifically for 1/2" AL4RPV-50, LDF4-50A, and HL4RPV-50 cables. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the L4TDF-PSA connector guarantees dependable connectivity and signal integrity.

Product Features:

• This connector is not pressurizable and provides a 3rd order IMD at frequency of -120 dBm at 910 MHz.
• It has a typical insertion loss coefficient of 0.05 and provides an average power of 1.1 kW at 900 MHz.
• The cable impedance is 50 ohms and it can handle a DC test voltage of 4000 V.
• The maximum inner contact resistance is 0.8 mOhm and minimum insulation resistance of 5000 MOhm.
• This connector operates in the frequency band of 0 – 8800 MHz.
• The maximum outer contact resistance is 1.5 mOhm and can handle a peak power of up to 40 kW.
• The connector retention tensile force is 889.64 N and connector retention torque is 5.42 N-m.
• It has an immersion depth of 1 m and it is conducted with the connector unmated.

Application Areas:

• This connector is ideal for use in telecom networks and infrastructure.
• It provides reliable signal transmission for broadcasting applications.
• It is perfect for industrial environments where robust connectivity is crucial.
• This connector ensures reliable connections in data center applications.

In the Box:

• 1x CommScope L4TDF-PSA 7-16 DIN-Female Positive Stop Connector

Documents:

CommScope L4TDF-PSA Connector - Datasheet CommScope L4TDF-PSA Connector - Installation Guide

Videos:

L4 Connector installation for HELIAX LDF4 50A cable CommScope Positive Stop Series Connectors - Installation by using an Automated Cable Preparation Tool CommScope Positive Stop Series Connectors - Installation by using a Manual Cable Preparation Tool
