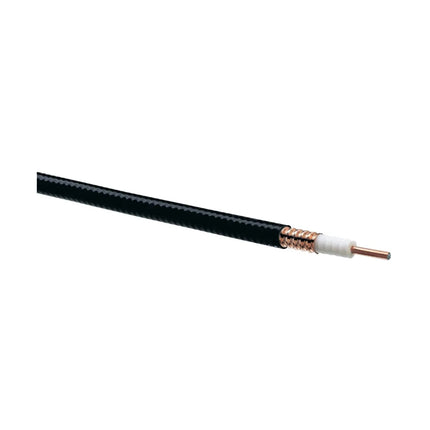

CommScope LDF4.5RK-50 Heliax Super Flexible Coaxial Cable, 5/8" - Black NH/FR

CommScope LDF4.5RK-50 Heliax Super Flexible Coaxial Cable, 5/8" - Black NH/FR

Sold out

Item ID:
168021262
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LDF4.5RK-50
Send Request for Quote (RFQ)
CommScope LDF4.5RK-50, HELIAX® Super flexible Coaxial Cable, corrugated copper, 5/8. It is jacketed in a black NH/FR material for enhanced fire resistance.
Regular price $23.10
Regular price $0.00 Sale price $23.10
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope LDF4.5RK-50 HELIAX Super Flexible Coax Cable in 5/8" size is engineered for high-performance RF signal transmission across a broad frequency range. Designed with flexibility and durability in mind, this cable is ideal for demanding environments requiring superior attenuation control, consistent impedance, and reliable mechanical properties.

Product Features:

  • Precision construction with an inner conductor diameter of 7.112 mm and outer conductor diameter of 19.812 mm.
  • Nominal impedance of 50 ohms ±1 ohm ensures consistent RF performance.
  • Low DC resistance: 0.722 ohms/km (inner), 1.378 ohms/km (outer) for efficient signal transfer.
  • High dielectric strength with 5000 V DC test voltage and 8000 V jacket spark test voltage.
  • Wide frequency range support from 1 MHz to 6100 MHz.
  • Capacitance: 76 pF/m ensures minimal signal loss and better signal integrity.
  • Peak power handling up to 62 kW with a velocity factor of 88%.
  • Insulation resistance rated at 100,000 MOhms-km for superior electrical isolation.

Application Areas:

  • Wireless communication systems including 4G/5G networks.
  • Base station and antenna feeder cable installations.
  • Distributed antenna systems (DAS) in commercial buildings or transport infrastructure.
  • High-frequency signal transmission in defense and broadcast applications.

In the Box:

  • 1 x CommScope LDF4.5RK-50 HELIAX Super Flexible Coax Cable, 5/8" Black NH/FR (cut to length as required)

Documents:

CommScope LDF4.5RK-50 - Datasheet
