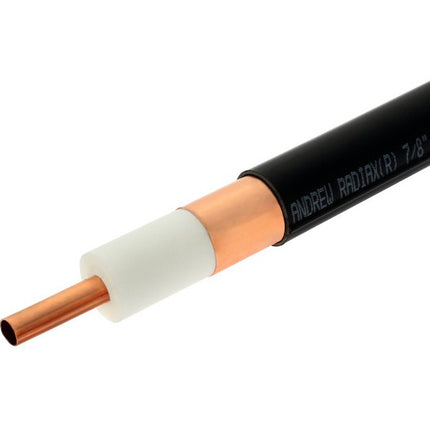

The CommScope RCT5 radiating cable is a high-performance cable designed for enhanced RF signal distribution across a wide frequency range of 50-2800 MHz. With vertical polarization, a low attenuation rate, and a robust design, this 7/8" radiating cable is ideal for indoor and outdoor wireless communication applications requiring reliable signal transmission. Its non-halogen, flame-retardant (NH/FR) jacket enhances safety and durability for mission-critical installations.
Product Features:
- Wide Frequency Range: Operates between 50 – 2800 MHz, covering multiple RF applications.
- Low Attenuation: Attenuation tolerance of ±5%, ensuring stable signal transmission.
- High Power Handling: Peak power rating of 91 kW for demanding RF environments.
- Superior Impedance Control: Maintains 50 ohm ±2-ohm impedance for consistent performance.
- Durable Construction: Non-halogen, flame-retardant (NH/FR) jacket for enhanced safety.
- Optimized Signal Integrity: VSWR installed (typical): 1700–2700 MHz: 1.38, 50–960 MHz: 1.30
- Reliable Testing Standards: Attenuation tested per IEC 61196-4.
Application Areas:
- Indoor and outdoor distributed antenna systems (DAS).
- Underground tunnels and mining communications.
- Railway and subway RF coverage solutions.
- Stadiums, airports, and large venue wireless networks.
- Public safety and emergency communication systems.
In the Box:
- 1 × CommScope RCT5 7/8" Radiating Cable (custom length).
Documents:
CommScope RCT5 -WBC-1X-RNA Cable - Datasheet
