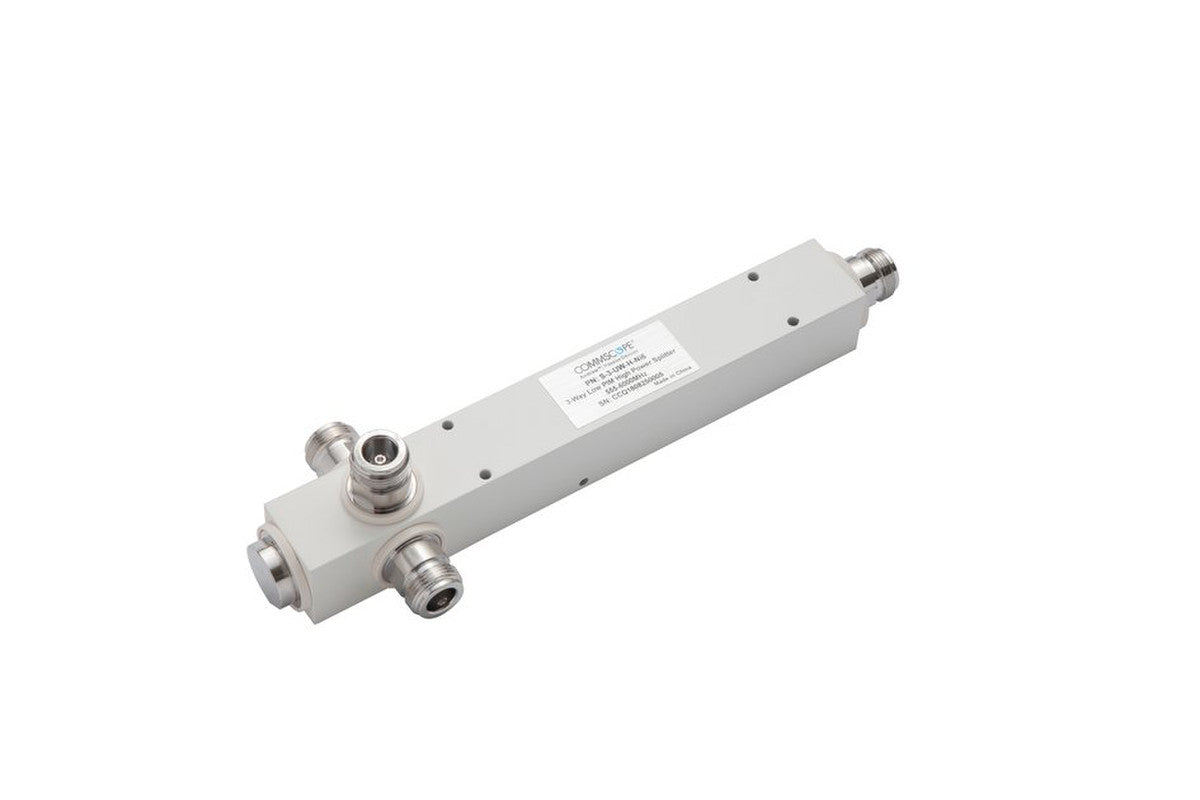

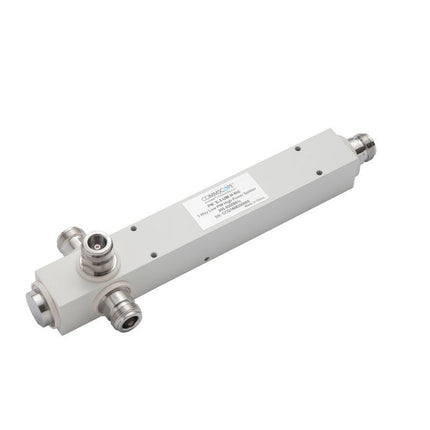

CommScope S-3-UW-H-NI6 3-Way, High Power Splitter, 555-6000 MHz, N-Female

CommScope S-3-UW-H-NI6 3-Way, High Power Splitter, 555-6000 MHz, N-Female

Sold out

Item ID:
168021601
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
S-3-UW-H-NI6
Discount Offers
CommScope S-3-UW-H-NI6 3-Way High Power Splitter is an ultra-wideband, low PIM reactive high power splitter designed for a frequency range of 555–6000 MHz.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

The CommScope S-3-UW-H-NI6 3-Way High Power Splitter is an ultra-wideband, low PIM reactive high-power splitter designed for a frequency range of 555–6000 MHz. This splitter is suitable for both indoor and outdoor applications, ensuring reliable performance in various environments. An additional mounting bracket (PN: 42396A-17) is sold separately.

Product Features:

  • Ultra-wideband support from 555 to 6000 MHz, compatible with 4G, 5G, and Wi-Fi systems.
  • Low Passive Intermodulation (PIM) for enhanced signal integrity in dense RF environments.
  • High power handling capability: 300 W average and 3 kW peak power.
  • 3-way splitter design with a power rating of 300 W and split loss of 4.8 dB.
  • VSWR: 1.25 for minimized signal reflections and improved system efficiency.
  • Return Loss: Minimum of 19.1 dB for superior signal performance.
  • 50-ohm impedance for seamless integration with standard RF systems.
  • N Female connectors with silver-plated inner contact and trimetal-plated outer contact.
  • Wide operating temperature range: -35 °C to 85 °C for extreme environments.

Application Areas:

  • Indoor and outdoor Distributed Antenna Systems (DAS).
  • Public safety communication networks.
  • Multi-band 4G/5G and private LTE deployments.
  • Commercial and enterprise wireless infrastructure requiring high-power signal distribution.

In the Box:

  • 1 x CommScope S-3-UW-H-NI6 3-Way High Power Splitter
  • N-Female connectors
  • Mounting bracket sold separately (Part Number: 42396A-17)

Documents:

CommScope 3-way High Power Splitter - Datasheet

Product Specifications

MPN S-3-UW-H-NI6
Brands CommScope
Component type Splitter/Combiner
Connector N(F)
Coupled loss db 4.8
Frequency band UHF, Cellular
Height 4.3
GTIN/EAN 646444837521
Length 20.2
Technology type 5G, 4G, UMTS
Width 6.1
