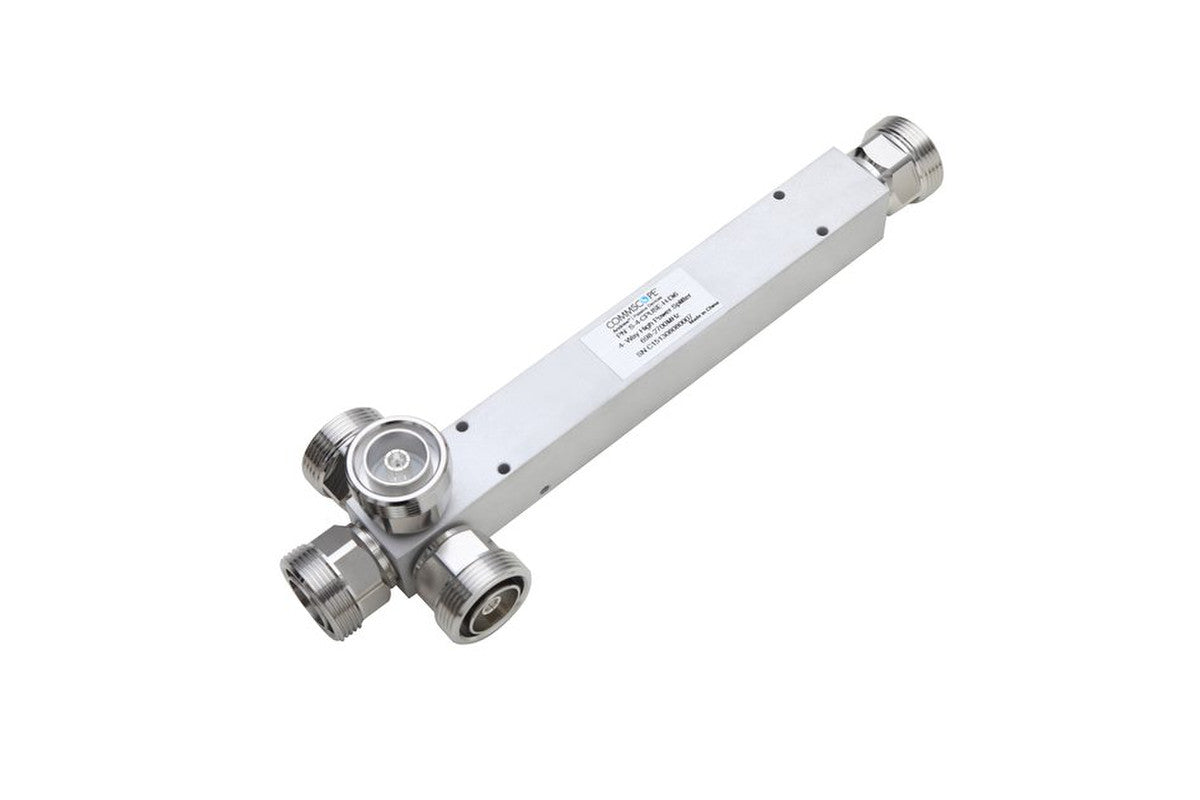

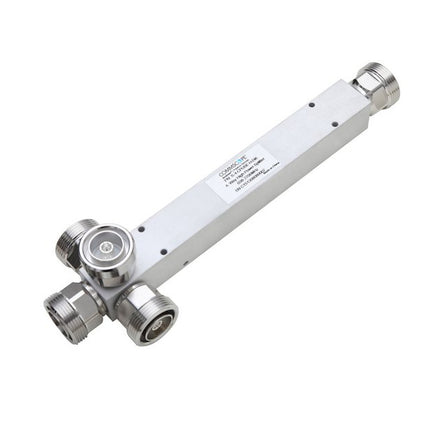

CommScope S-4-CPUSE-H-DI6 4-Way, High Power Splitter, 555-2700 MHz, 7-16 DIN-Female

CommScope S-4-CPUSE-H-DI6 4-Way, High Power Splitter, 555-2700 MHz, 7-16 DIN-Female

Sold out

Item ID:
168021603
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
S-4-CPUSE-H-DI6
Send Request for Quote (RFQ) Discount Offers
The CommScope S-4-CPUSE-H-DI6 4-Way High Power Splitter is a versatile, high-performance device designed for a frequency range of 555–2700 MHz.
Regular price $545.00
Regular price $0.00 Sale price $545.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope S-4-CPUSE-H-DI6 4-Way High Power Splitter is a robust and high-performance RF device engineered to operate within the 555–2700 MHz frequency range. Suitable for both indoor and outdoor deployments, this 4-way splitter supports a wide range of RF systems and ensures efficient signal distribution across multiple bands. Its durable design, high power handling, and low insertion loss make it an ideal choice for mission-critical communication networks.

Product Features:

  • Wide operating frequency range: 555 to 2700 MHz, supporting 4G, LTE, and sub-6 GHz 5G bands.
  • High power handling capability: 300 W average and 3 kW peak power.
  • Low insertion loss: 0.3 dB at 698–2700 MHz and 0.4 dB at 555–698 MHz for minimal signal degradation.
  • Split loss: 6 dB, ensuring balanced signal distribution across all output ports.
  • VSWR: 1.3:1 at 698–2700 MHz and 1.93:1 at 555–698 MHz, optimizing signal reflection performance.
  • 7-16 DIN female connectors provide secure, high-power RF connections.
  • Silver-plated inner contacts and trimetal-plated outer contacts for excellent conductivity and corrosion resistance.
  • Standard 50-ohm impedance ensures compatibility with most RF systems.
  • Built to withstand demanding environments with reliable performance in indoor and outdoor settings.

Application Areas:

  • This high power splitter is ideal for use in telecom networks and infrastructure.
  • It is suitable for broadcasting applications that require low PIM and high power handling.
  • The device is perfect for industrial environments where robust connectivity is crucial.
  • It ensures reliable connections in data center applications.
  • It is applicable in outdoor installations where environmental protection is essential.

In the Box:

  • 1 x CommScope S-4-CPUSE-H-DI6 4-Way High Power Splitter
  • 7-16 DIN Female connector

Product Specifications

MPN S-4-CPUSE-H-DI6
Brands CommScope
Component type Splitter/Combiner
Connector 7-16 DIN(F)
Coupled loss db 6
Frequency band UHF, Cellular
Height 29
Length 7.5
Technology type 5G, 4G, UMTS
Width 9.8
