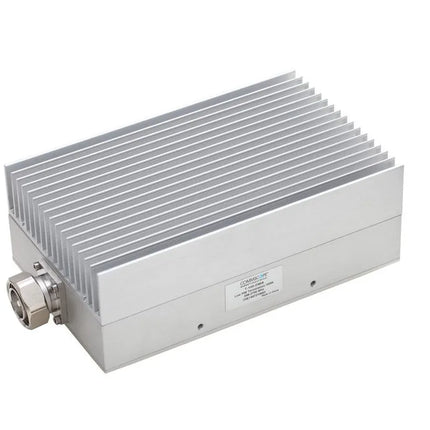

The CommScope T-100-DMI6 is a premium 100W Low PIM Termination Load engineered for use in high-performance RF systems. Operating across a broad frequency range of 555 to 2700 MHz, this device provides stable and reliable termination with minimal signal interference. Designed for both indoor and outdoor use, it features a robust 7-16 DIN Male connector and superior contact plating to ensure long-term durability and optimal conductivity.

Product Features:

• Rated for 100 watts of continuous power, making it suitable for high-power RF applications.
• Operates efficiently across a wide frequency band from 555 MHz to 2700 MHz.
• Engineered with low Passive Intermodulation (PIM) performance to maintain signal clarity and reduce interference.
• Includes a 7-16 DIN Male interface with silver-plated inner contact and trimetal-plated outer contact for excellent corrosion resistance and conductivity.

Application Areas:

• Ideal for use in telecommunications infrastructure such as DAS, base stations, and RF testing environments.
• Suitable for both indoor and outdoor installations requiring reliable RF load termination.
• Commonly used in low PIM environments where high signal integrity is crucial.

In the Box:

• 1 x CommScope T-100-DMI6 Low PIM Termination Load (7-16 DIN Male)
