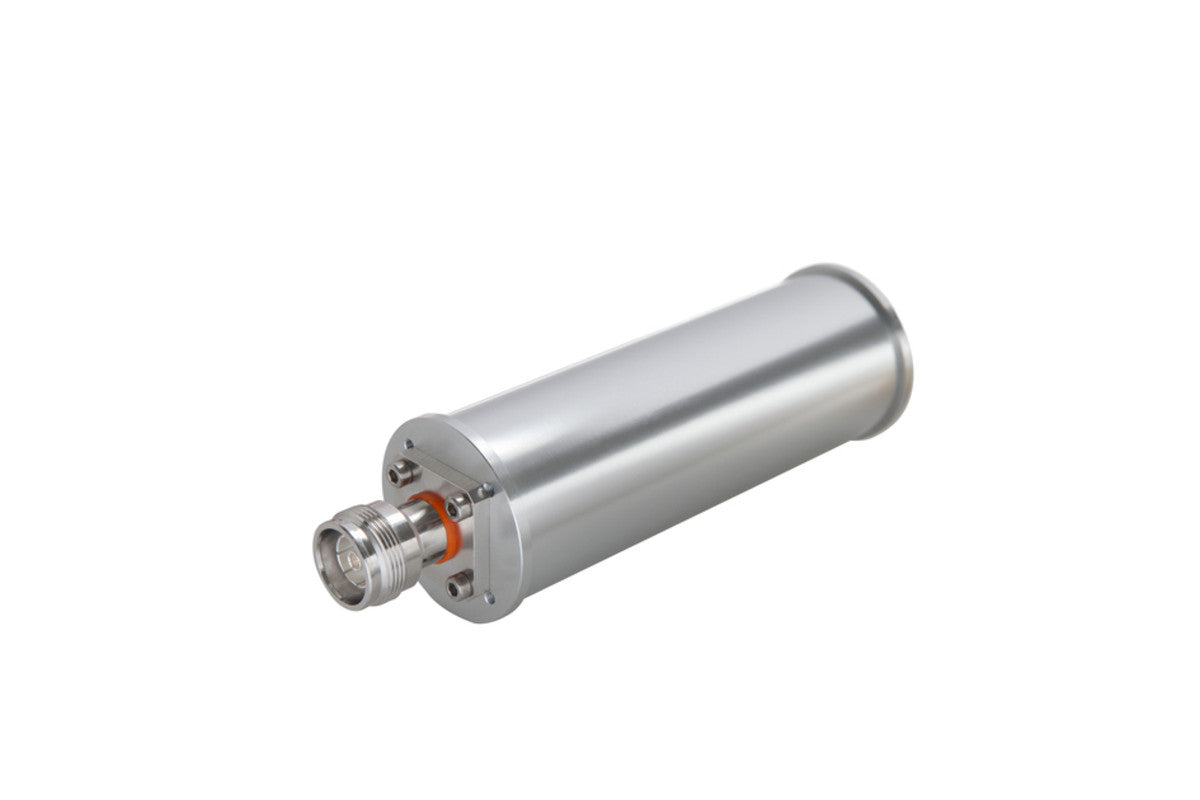

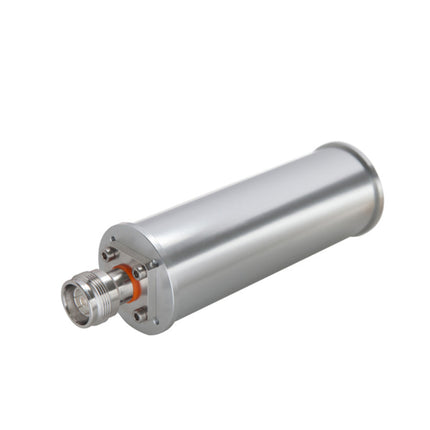

The CommScope T10 Termination Load is a high-performance termination device designed for RF applications within the 340–6000 MHz frequency range. It supports up to 10 watts of power and ensures low passive intermodulation (PIM) where signal integrity is crucial.

Product Features:

• It operates across 340 MHz to 6000 MHz, supporting a variety of RF systems.
• Low PIM Performance maintains signal integrity by minimizing passive intermodulation.
• CommScope T10 termination load features a robust silver finish with silver-plated inner contacts and trimetal-plated outer contacts.
• Reliable Power Handling rated for 10 watts of continuous power dissipation.
• Standard Connector equipped with a 4.3-10 female interface for secure and stable connections.

Application Areas:

• Indoor RF system testing and termination.
• DAS requiring low PIM performance.
• Base station and wireless communication equipment.
• Signal load balancing and network maintenance setups.

In the Box:

• 1 x CommScope T-10-UW-43-F-I6 Low PIM Termination Load (4.3-10 Female)
