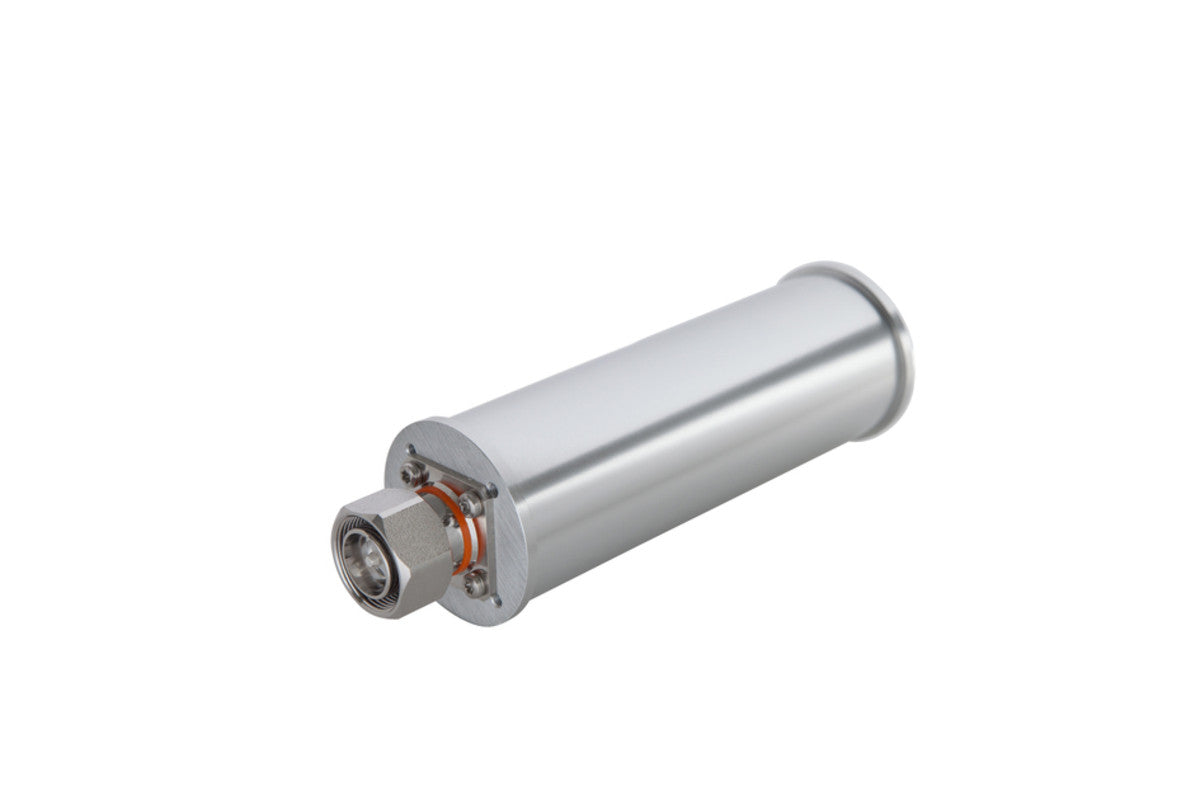

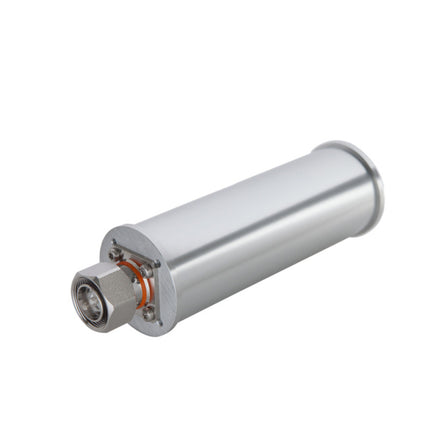

The CommScope T10 Termination Load is a high-performance termination device designed for RF applications within the 340-6000 MHz frequency range. It supports up to 10 watts of power and ensures low passive intermodulation (PIM) where signal integrity is crucial.
Product Features:
- It operates across 340 MHz to 6000 MHz, supporting a variety of RF systems.
- Low PIM Performance maintains signal integrity by minimizing passive intermodulation.
- CommScope T10 termination load features a robust silver finish with silver-plated inner contacts and trimetal-plated outer contacts.
- Reliable Power Handling rated for 10 watts of continuous power dissipation.
- Standard Connector equipped with a 4.3-10 male interface for secure and stable connections.
Application Areas:
- Indoor RF system testing and termination.
- DAS requiring low PIM performance.
- Base station and wireless communication equipment.
- Signal load balancing and network maintenance setups.
In the Box:
- 1 x CommScope T-10-UW-43-M-I6 Low PIM Termination Load (4.3-10 Male)
Documents:
CommScope T-10-UW-43-M-I6 Termination Load - Datasheet
