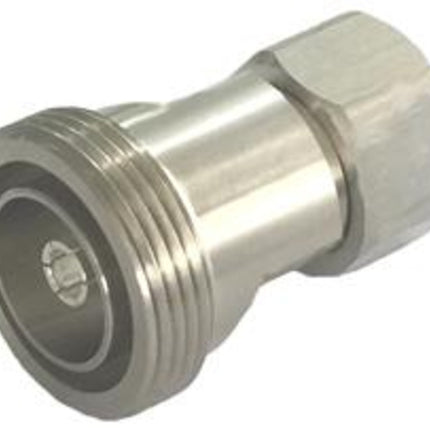

CommScope TA-DFHM 7-16 DIN-Female to 4.3-10-Male Adapter, Low PIM
CommScope TA-DFHM 7-16 DIN-Female to 4.3-10-Male Adapter, Low PIM
The CommScope TA-DFHM is a high-quality 7-16 DIN-Female to 4.3-10-Male Adapter designed for low PIM (Passive Intermodulation) applications.
- Brand
- CommScope
- Export
- Acceptedwhat this means
- Item ID
- 168018322
- MPN
- TA-DFHM
- Shipping
- Ships out in 1-2 business days
Standard Warranty
Global Insurance Except USA & Canada
$110.34
- Taxes included. Shipping rate calculated at checkout.
- Purchase Order & instructions box available at Cart page
-
Pay securely! All major cards accepted.
Product Description
The CommScope TA-DFHM is a high-quality 7-16 DIN-Female to 4.3-10-Male Adapter designed for low PIM (Passive Intermodulation) applications. It features straight body style with interfaces of 7-16 DIN (F) and 4.3-10 (M), both having a straight mounting angle.
Product Features:
- The inner contact is plated with silver.
- The outer contact is plated with trimetal.
- The coupling nut proof torque is 8 N-m, and the retention force is 450 N.
- The interface durability is 100 cycles.
- The operating temperature range is from -55 °C to +85 °C, and the storage temperature range is from -65 °C to +125 °C.
- The attenuation is measured at an ambient temperature of 20 °C, and the average power is measured at 40 °C.
Application Areas:
- Ideal for use in telecom networks and infrastructure.
- Suitable for broadcasting applications requiring reliable signal transmission.
- Perfect for industrial environments where robust connectivity is crucial.
- Ensures reliable connections in data center applications.
In the Box:
- 1 x CommScope TA-DFHM 7-16 DIN-Female to 4.3-10-Male Adapter
