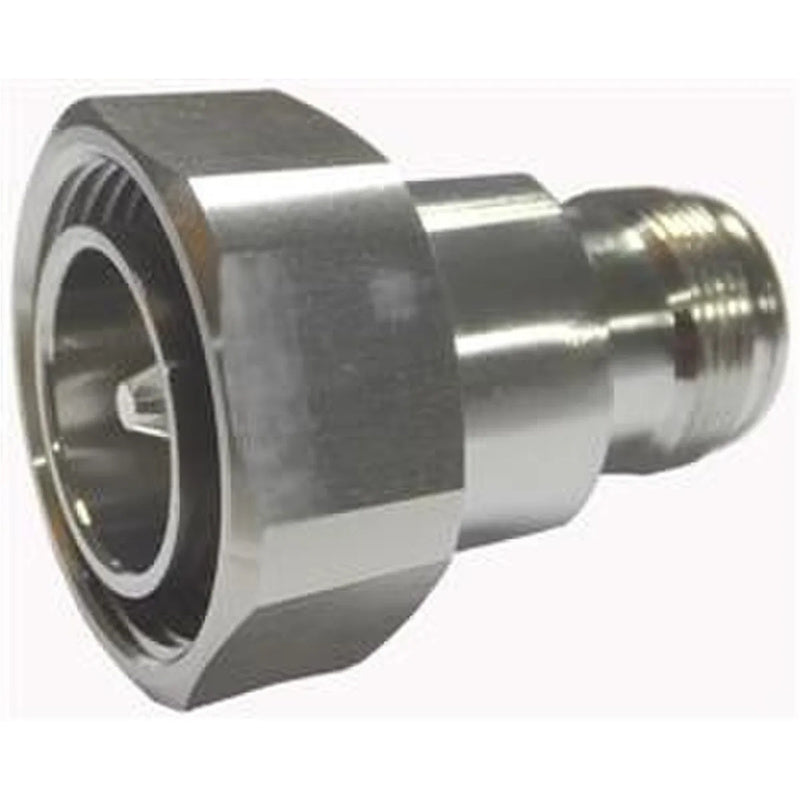

The CommScope TA-DMHF is a high-quality 7-16 DIN-Male to 4.3-10-Female Adapter designed for low PIM (Passive Intermodulation) applications. It features a straight body style with interfaces of 7-16 DIN Male and 4.3-10 Female, both having a straight mounting angle.

Product Features:

• The inner contact is plated with silver, while the outer contact is plated with trimetal.
• The 3rd order IMD at 1800 MHz is -163 dBc, tested with two +43 dBm carriers.
• The connector impedance is 50 ohms, with a DC test voltage of 2500 V.
• The maximum inner contact resistance is 1 mOhm, and the maximum outer contact resistance is 1 mOhm.
• The minimum insulation resistance is 5000 mOhm.
• The operating frequency band ranges from 0 to 6000 MHz.
• The coupling nut proof torque is 35 Nm and the retention force is 1000 N.
• The interface durability is 100 cycles.
• The attenuation is measured at an ambient temperature of 20 °C, and the average power is measured at 40 °C.

Application Areas:

• Ideal for use in telecom networks and infrastructure.
• Suitable for broadcasting applications requiring reliable signal transmission.
• Perfect for industrial environments where robust connectivity is crucial.
• Ensures reliable connections in data center applications.

In the Box:

• 1 x CommScope TA-DMHF 7-16 DIN-Male to 4.3-10-Female Adapter

Documents:

CommScope TA-DMHF Adapter - Datasheet
