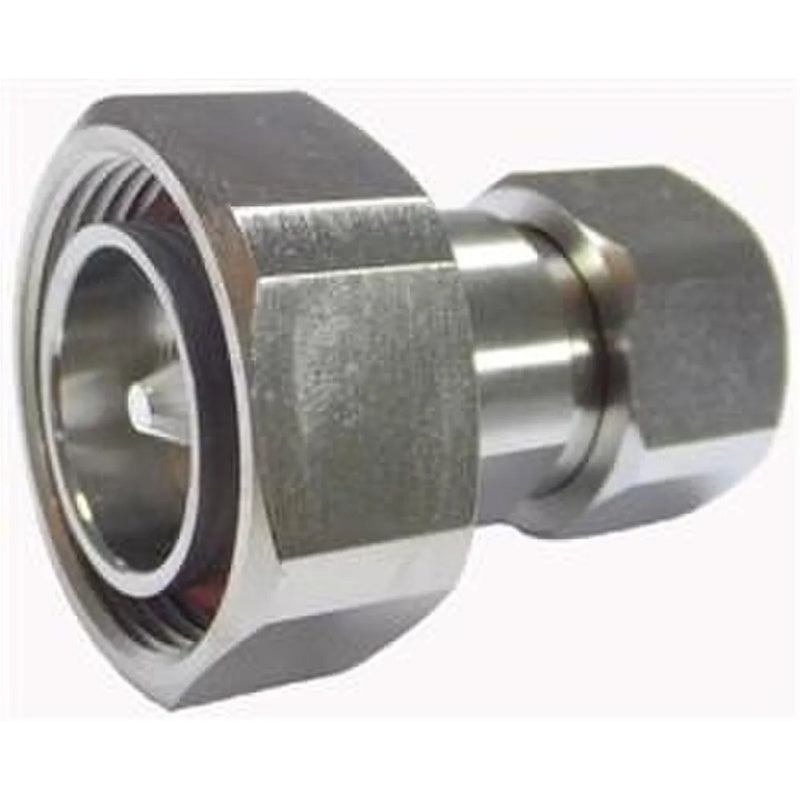

The CommScope TA-DMHM is a high-quality 7-16 DIN-Male to 4.3-10-Male Adapter designed for low PIM (Passive Intermodulation) applications. It features a straight body style, with interfaces of 7-16 DIN (M) and 4.3-10 (M), both having a straight mounting angle. The inner contact is plated with silver, while the outer contact is plated with trimetal.
Product Features:
- The 3rd order IMD at 1800 MHz is -163 dBc, tested with two +43 dBm carriers.
- Both the cable and connector have an impedance of 50 ohms.
- The DC test voltage is 2500 V, with a maximum RF operating voltage of 707 V (vrms).
- The maximum inner contact resistance is 1 mOhm, and the maximum outer contact resistance is 1 mOhm.
- The minimum insulation resistance is 5000 mOhm and operating frequency band ranges from 0 to 6000 MHz.
- The coupling nut proof torque is 35 N-m for the 7-16 DIN (M) interface, and 7 N-m for the 4.3-10 (M) interface.
- The coupling nut retention force is 1000 N for the 7-16 DIN (M) interface, and 450 N for the 4.3-10 (M).
- The interface durability is 100 cycles.
- The attenuation is measured at an ambient temperature of 20 °C, and the average power is measured at 40 °C.
Application Areas:
- Ideal for use in telecom networks and infrastructure.
- Suitable for broadcasting applications requiring reliable signal transmission.
- Perfect for industrial environments where robust connectivity is crucial.
- Ensures reliable connections in data center applications.
In the Box:
- 1 x CommScope TA-DMHM 7-16 DIN-Male to 4.3-10-Male Adapter
Documents:
CommScope TA-DMHM Adapter - Datasheet
