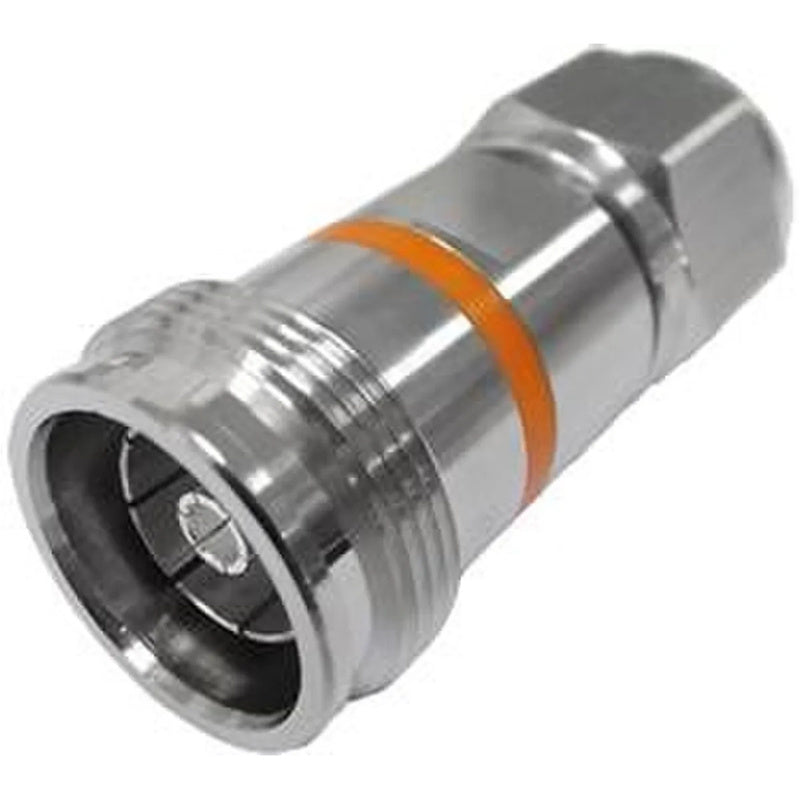

The CommScope TA-NMHF is a high-quality N-Male to 4.3-10-Female Adapter designed for low PIM (Passive Intermodulation) applications. It features a straight body style, with interfaces of N (M) and 4.3-10 (F), both having a straight mounting angle.
Product Features:
- The inner contact is plated with silver, while the outer contact is plated with trimetal.
- The 3rd order IMD at 1800 MHz is -163 dBc, tested with two +43 dBm carriers.
- The connector impedance is 50 ohms, with a DC test voltage of 2500 V.
- The maximum inner contact resistance is 1 mOhm, and the maximum outer contact resistance is 1 mOhm.
- The minimum insulation resistance is 5000 mOhm.
- The operating frequency band ranges from 0 to 6000 MHz.
- The coupling nut proof torque is 1.7 N-m, and the retention force is 450 N.
- The interface durability is 100 cycles.
- The attenuation is measured at an ambient temperature of 20 °C, and the average power is measured at 40 °C.
Application Areas:
- Ideal for use in telecom networks and infrastructure.
- Suitable for broadcasting applications requiring reliable signal transmission.
- Perfect for industrial environments where robust connectivity is crucial.
- Ensures reliable connections in data center applications.
In the Box:
- 1 x CommScope TA-NMHF N-Male to 4.3-10-Female Adapter
Documents:
CommScope TA-NMHF Adapter - Datasheet
