The Digital Drift DD-LFC-RMC12-6927 is a high-performance 50-ohm leaky feeder (radiating) coaxial cable, designed for optimal signal distribution in confined environments such as mines and tunnels. With Low Smoke Zero Halogen (LSZH) fire-retardant properties, it ensures safety while delivering consistent signal performance. The cable operates in a wide frequency range from 690 MHz to 2700 MHz, making it ideal for supporting Wi-Fi at 2.4 GHz and other wireless communication needs.

Constructed with copper-clad aluminum wire, overlapping copper foil shielding, and a durable black LSZH jacket, this cable provides excellent electrical and mechanical performance. It offers low attenuation, stable coupling loss, and a bending radius suitable for challenging installation environments.

This cable complies with IEC fire and smoke safety standards and is ISO 9001, ISO 14001, and OHSAS 18001 certified, ensuring reliability and durability for demanding applications.

This cable is supplied in 500m cable roll tied to a pallet.

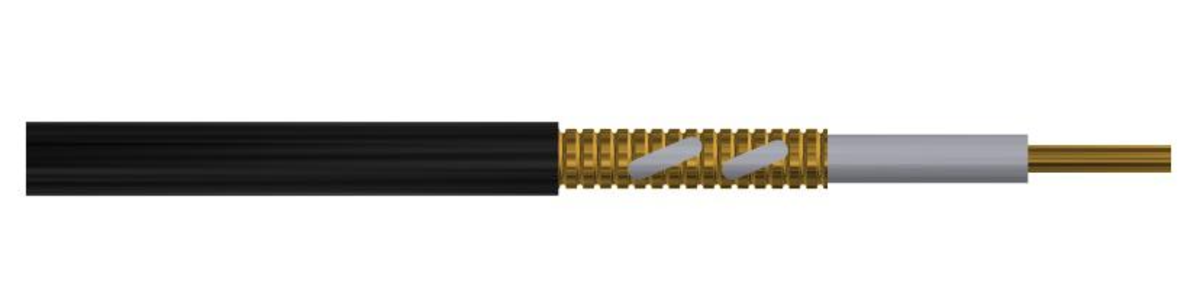

Construction & Materials

• Inner Conductor: Copper-Clad Aluminum Wire
• Outer Conductor: Overlapping Copper Foil
• Dielectric Material: Physical Foam Polyethylene
• Jacket Material: Low Smoke Halogen-Free (LSZH), Fire-Retardant
• Jacket Color: Black
• Diameter Over Jacket: 15.50 mm (0.6102")

Mechanical & Environmental Specifications

• Single Bending Radius: 75 mm
• Multiple Bending Radius: 150 mm
• Minimum Distance to Wall: 50 mm
• Tensile Strength: 1000 N
• Bending Moment: 13.5 N.m
• Cable Weight: 205 g/m
• Recommended Hanger Spacing: 0.8 - 1.2 m
• Storage Temperature: -55°C to +85°C
• Operating Temperature: -55°C to +85°C
• Installation Temperature: -40°C to +80°C
• Relative Humidity: 95%

Electrical Performance

• Impedance: 50 ± 2 Ω
• Capacitance: 75.0 pF/m
• Velocity of Propagation: 86%
• Insulation Resistance: > 10,000 MΩ¢km
• Jacket Spark Resistance: 8 kV
• Insulation Voltage: 6 kV
• Inner Conductor DC Resistance: 1.65 Ω/km
• Outer Conductor DC Resistance: 6.50 Ω/km

Frequency & Attenuation

• Operating Frequency Range: 5 - 2700 MHz
• Optimum Operating Frequency: 700 - 2700 MHz
• Stop Bands: 1012-1052 MHz, 2025-2110 MHz, 2170-2300 MHz
• VSWR: ≤ 1.40 across multiple bands

Fire & Safety Compliance

• Fire Retardancy Test: IEC 60332-1
• Smoke Index Test: IEC 61034
• Toxicity Index Test: IEC 60754-1 / IEC 60754-2
• Attenuation Test Method: IEC 61196-4
• Coupling Loss Test Method: IEC 61196-4
• Certification: ISO 9001, ISO 14001, OHSAS 18001, CE
