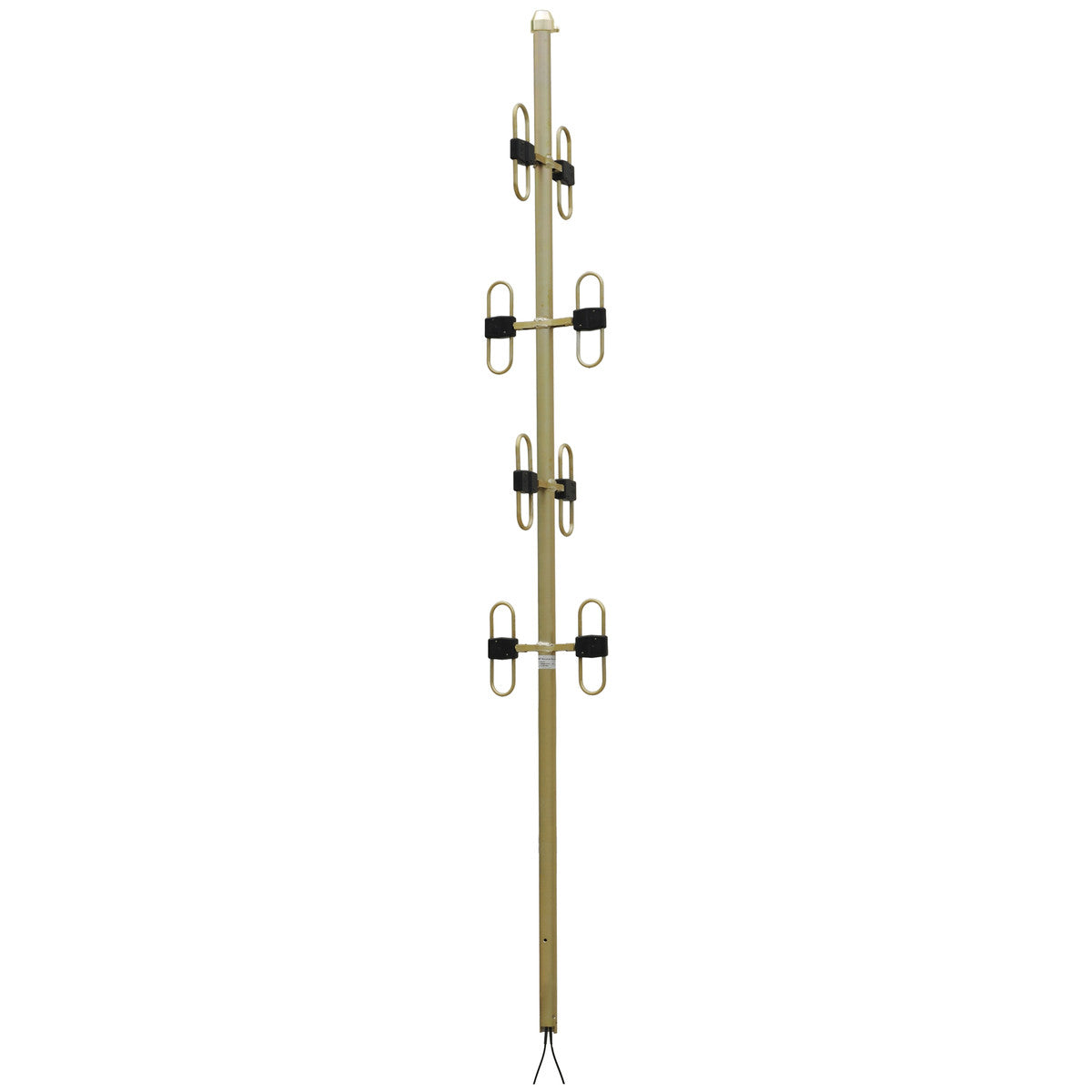

RFI BA4040-67L-P UHF Dipole Array is designed for unparalleled flexibility in UHF communication. It is delivered in two sections for easy shipping and handling. This array allows on-site assembly. The lower section, featuring a larger diameter mast stock, accommodates various configurations. It is including a standard UHF upper array, collinear antenna option, or external couplings for higher gain. This array provides unrestricted gain, pattern, and beamtilt combinations, with options for mounting additional arrays and telescoping capabilities.

Product Features:

• The two-section design facilitates convenient transportation and on-site assembly for hassle-free installation.
• It supports versatile configurations, allowing either a standard UHF upper array or a collinear antenna to be installed for customized setups.
• The upper array or collinear antenna can telescope into the lower section, offering additional flexibility in deployment.
• An external phasing harness, such as the PH42-67-P, can be used to enable phased configurations that improve overall performance.
• Meander antennas, including the UHF COL40 series and 800 MHz COL80 series, can be stacked on top using the optional COL-Kit mounting adaptor kit.
• The array supports unrestricted combinations of gain, radiation pattern, and electrical beamtilt, ensuring optimal network coverage.
• RFI UHF dipole arrays are known for their wide bandwidth, high power handling, and superior performance in gain, radiation pattern, and intermodulation suppression.

Application Areas:

• This antenna is ideal for UHF communication deployments where antenna space is limited, such as on prime tower or rooftop sites.
• It provides a highly flexible solution for system engineers and site owners aiming to minimize the total number of antennas installed at a location.

In the Box:

• RFI BA4040-67L-P UHF Dipole Array

Documents:

RFI BA4040-67L-P Binary Array - Datasheet
