FM Rebroadcast Head End 87.5-108 MHz

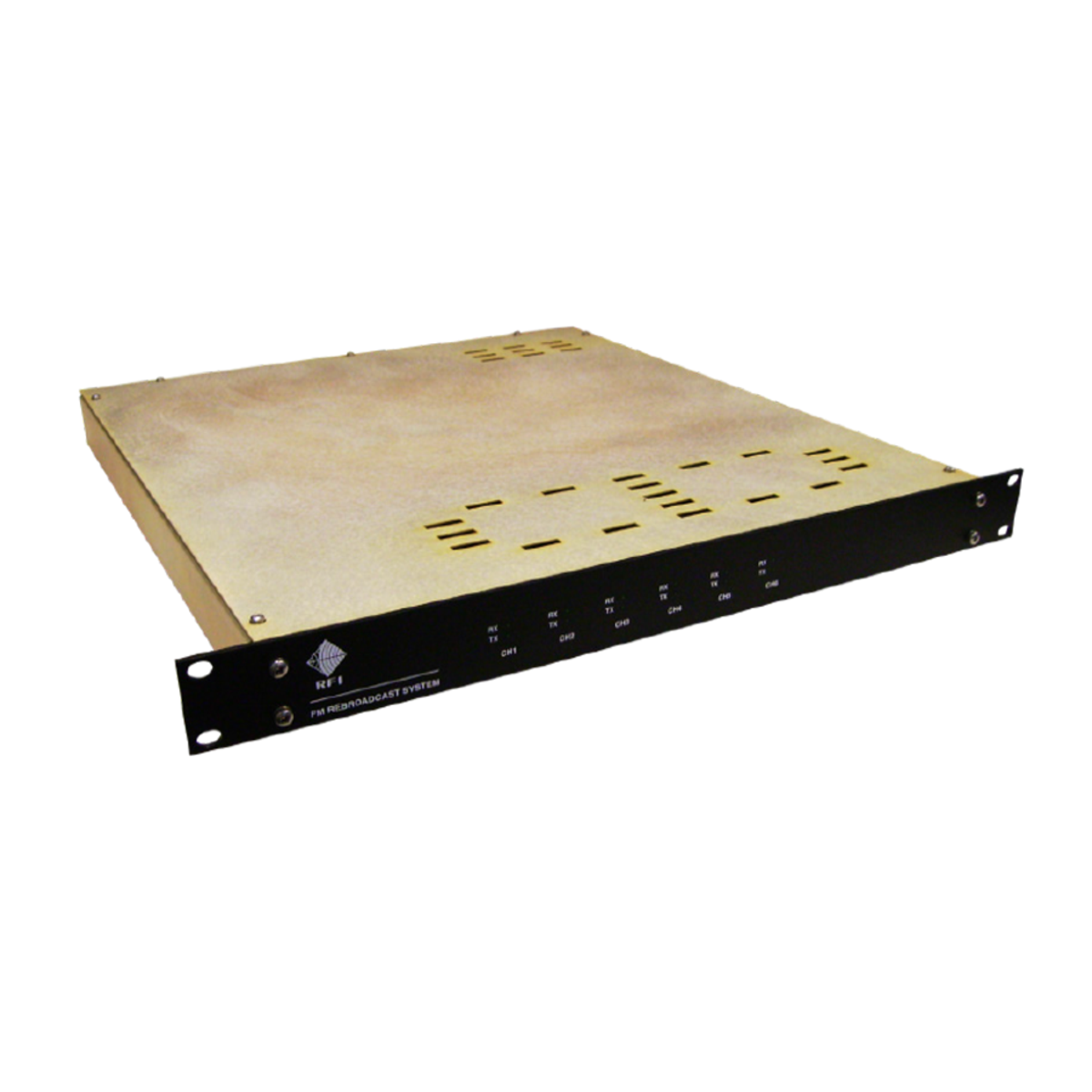

The FMC88108-6 is a 19†rack mountable 1RU shelf, 6 Channel VHF FM Stereo rebroadcast repeater with audio break-in functionality on all channels. Internal splitting and combining of all the channels means termination is only required via a single BNC RF input and RF output connector keeping the installation simple. Mechanical user-programming capability is provided for changing input and output frequencies for each channel. The audio input for all six channels is via a rear mounted single isolated BNC balanced audio input connector with an associated audio loop connector option, facilitating daisy chain audio break-in connectivity to more than one shelf. Front mounted LED’s provide visual operational confirmation of each of the six respective channels.
- 6Ch VHF FM Stereo on-frequency or frequency translating rebroadcast unit
- Single BNC RF Input and single BNC RF Output for all six channels
- Additional FMC88108-6 units can be added for additional rebroadcast frequencies.
- Audio break-in on all six channels from a single audio source
- RF Output is typically feed into a linear VHF RF Power Amplifier prior to signal distribution.
- Compact 1RU 19†rack mountable shelf with a depth of 470 mm.

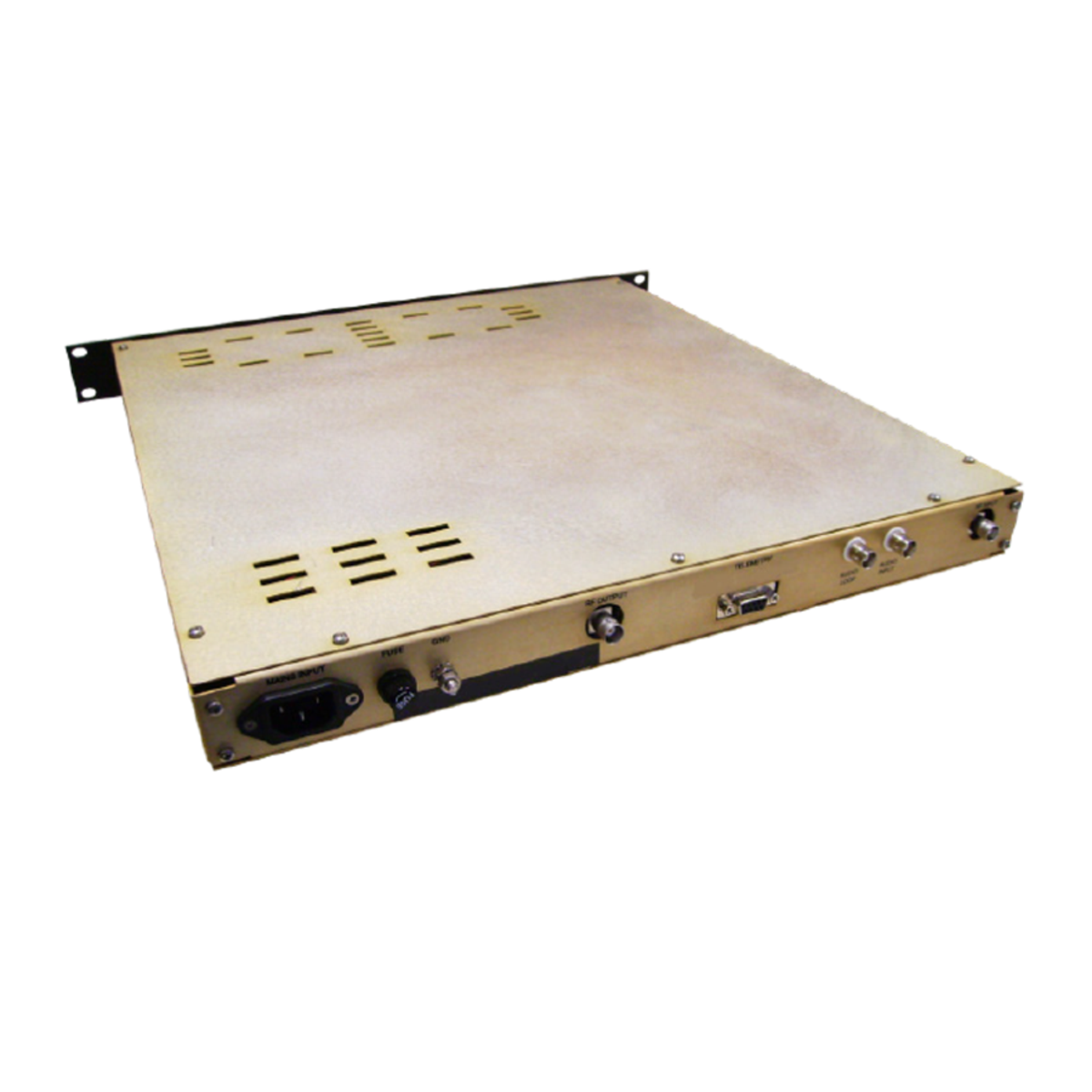

- Summary Alarm and telemetry control via rear mounted D9 connector
- A full range of filtering, combining and splitting is available for larger systems
- Optional RF-over-Fiber (RFoF) signal distribution system
Documents:
RFI FMC88108-6 FM Rebroadcast Repeater - Datasheet
RFI FMC88108-6 FM Rebroadcast Repeater - User Manual
RFI FMC88108-6 FM Rebroadcast Repeater - Application Note
