FM Rebroadcast Head End 87.5-108 MHz; Non-Translating

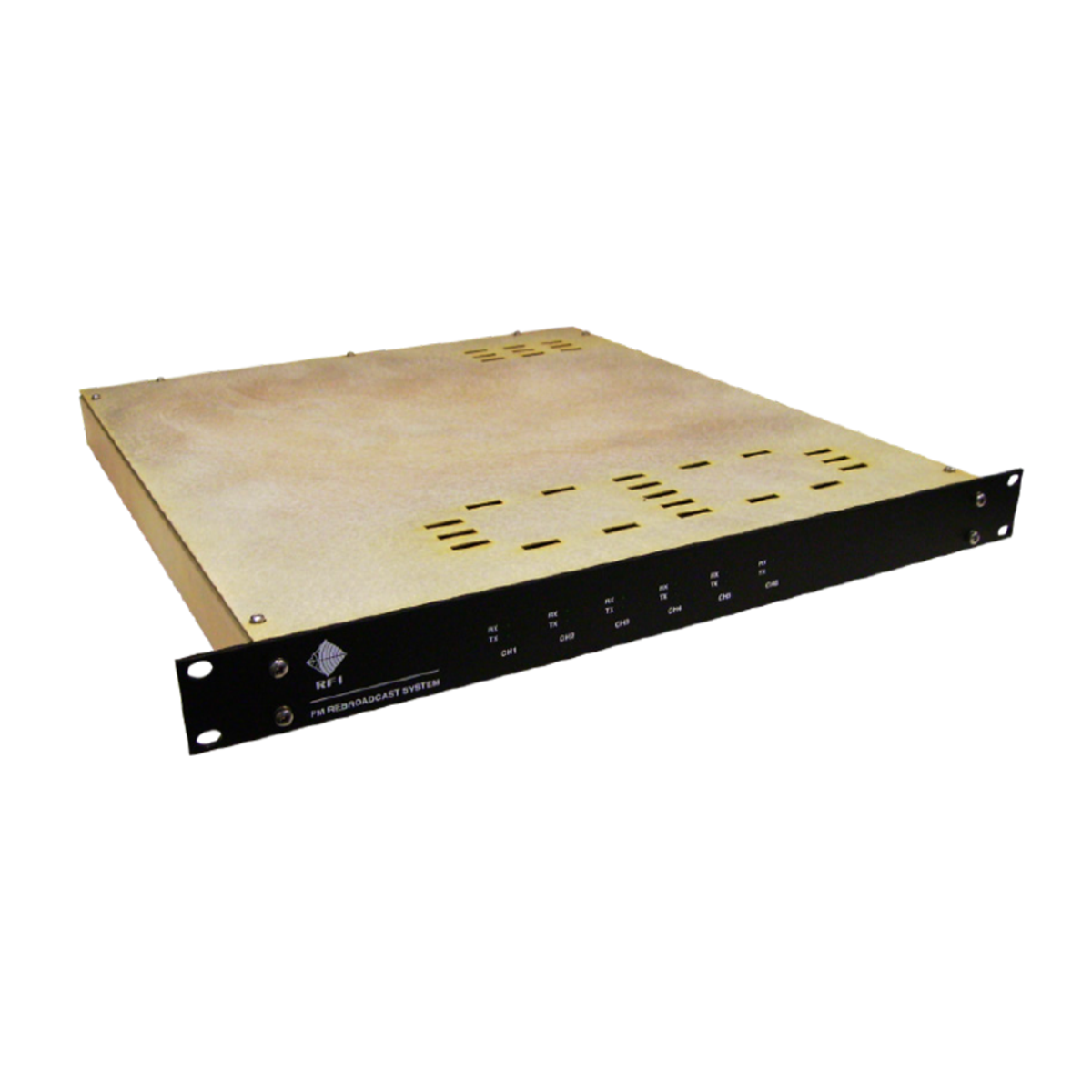

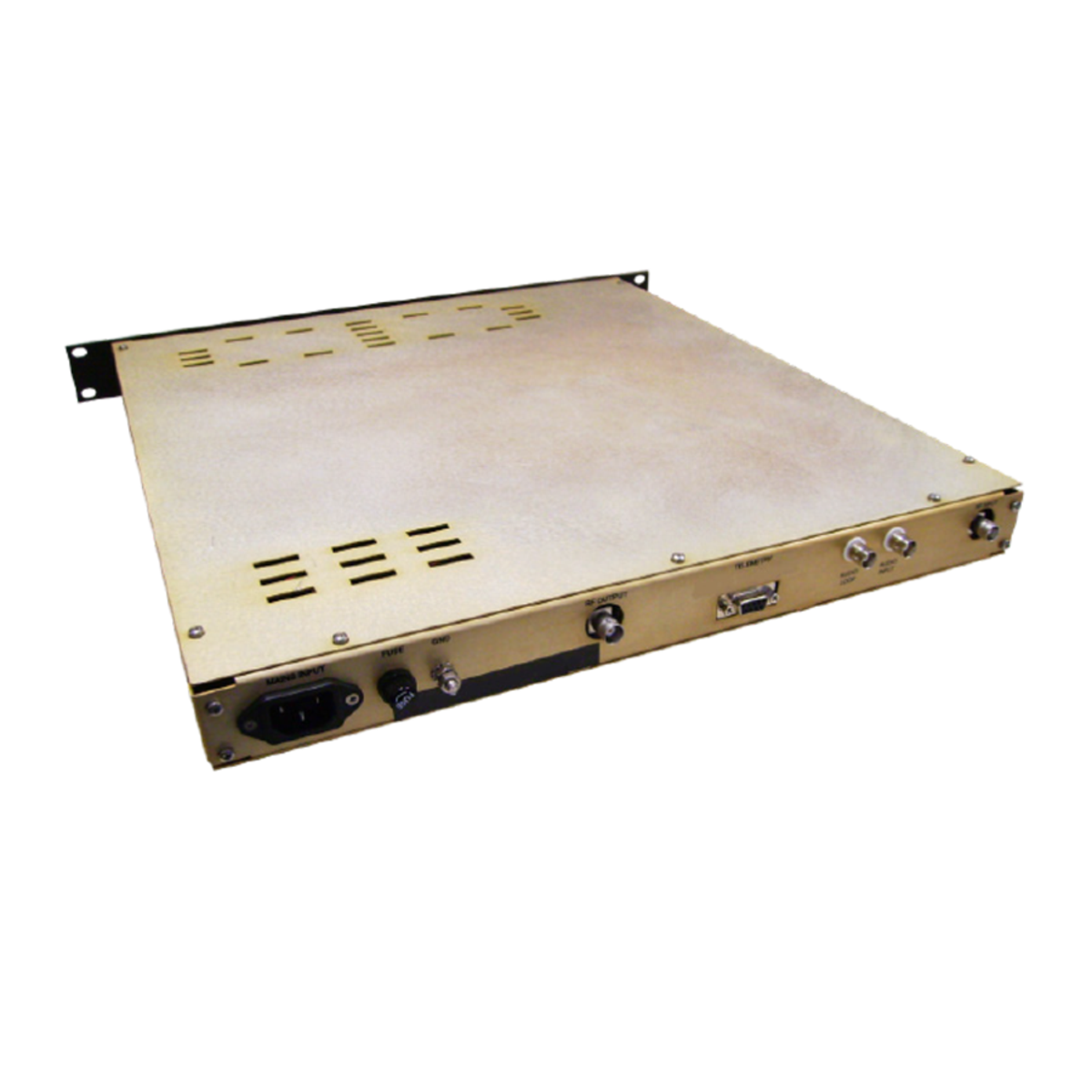

The FMC88108-6-NT is a 19"rack mountable 1RU shelf, 6 Channel VHF FM Stereo rebroadcast repeater with audio break-in functionality on all channels. Internal splitting and combining of all the channels means termination is only required via a single BNC RF input and RF output connector keeping the installation simple. Mechanical user-programming capability is provided for changing the operating frequency for each channel. The audio input for all six channels is via a rear mounted single isolated BNC balanced audio input connector with an associated audio loop connector option, facilitating daisy chain audio break-in connectivity to more than one shelf. Front mounted LED's provide visual operational confirmation of each of the six respective channels.

• 6Ch VHF FM Stereo on-frequency (non-translating) rebroadcast unit
• Single BNC RF Input and single BNC RF Output for all six channels
• Additional FMC88108-6-NT units can be added for additional rebroadcast frequencies.
• Audio break-in on all six channels from a single audio source
• RF Output is typically feed into a linear VHF RF Power Amplifier prior to signal istribution.
• Compact 1RU 19"rack mountable shelf with a depth of 470 mm.
• Summary Alarm and telemetry control via rear mounted DB9 connector
• A full range of filtering, combining and splitting is available for larger systems
• Optional RF-over-Fiber (RFoF) signal distribution system
