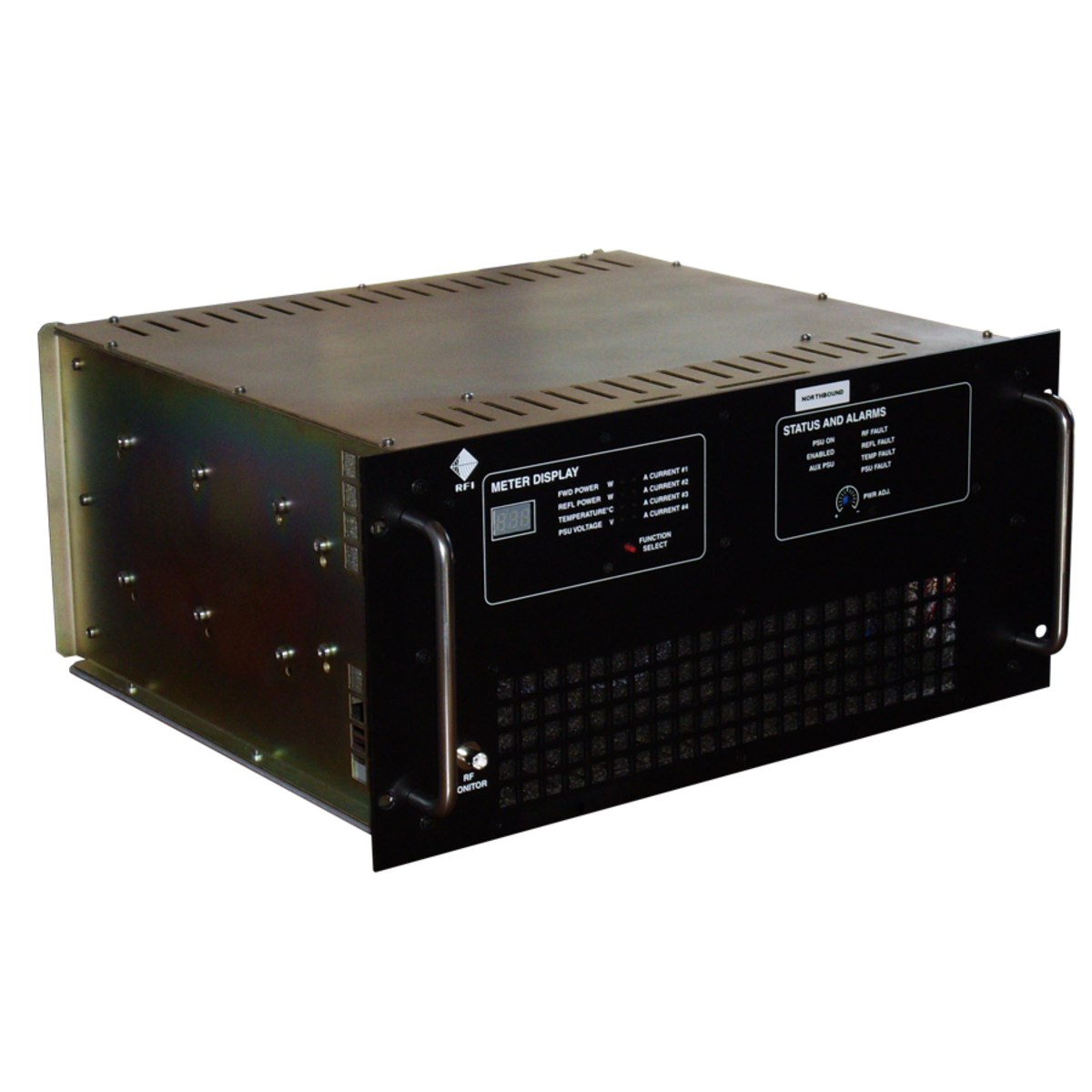

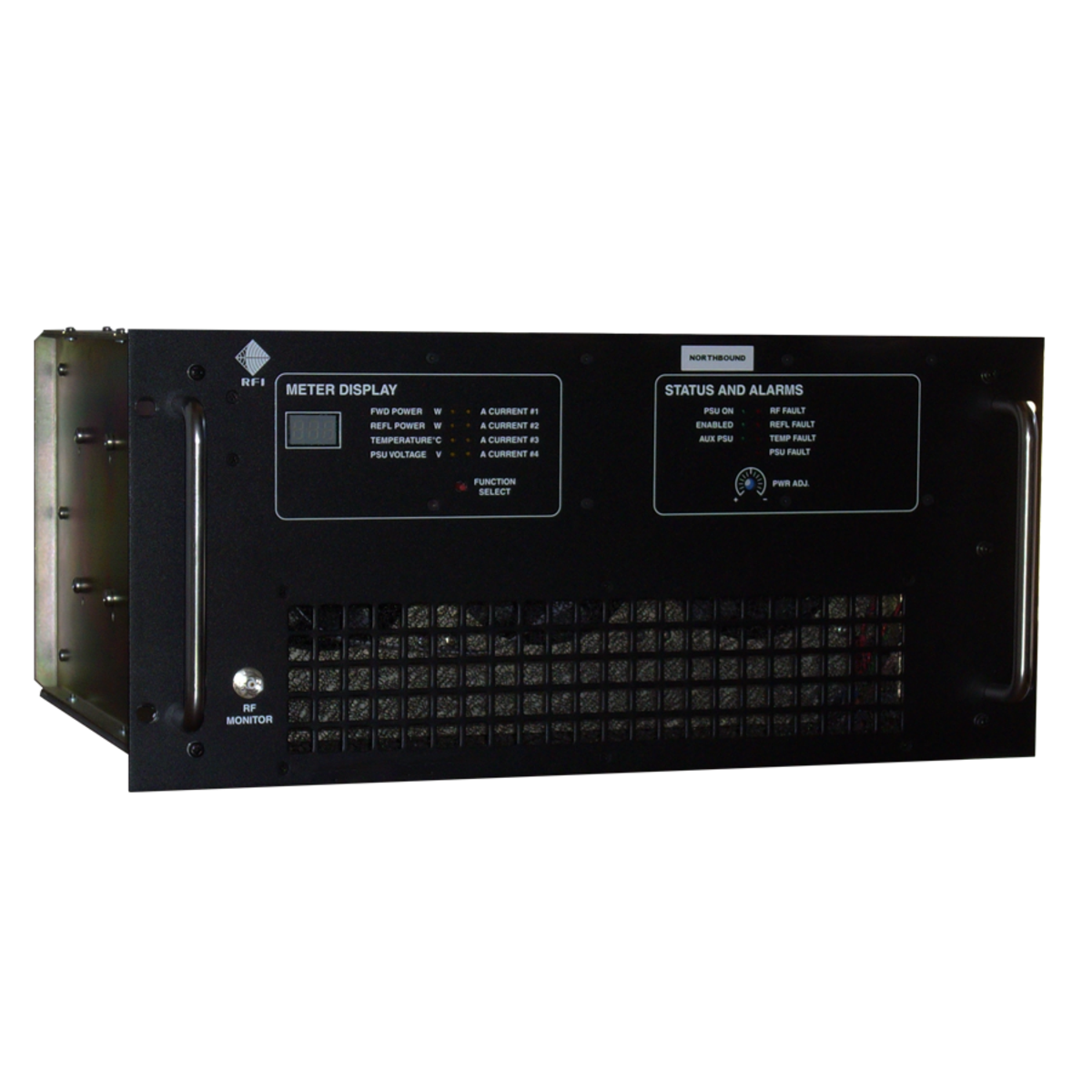

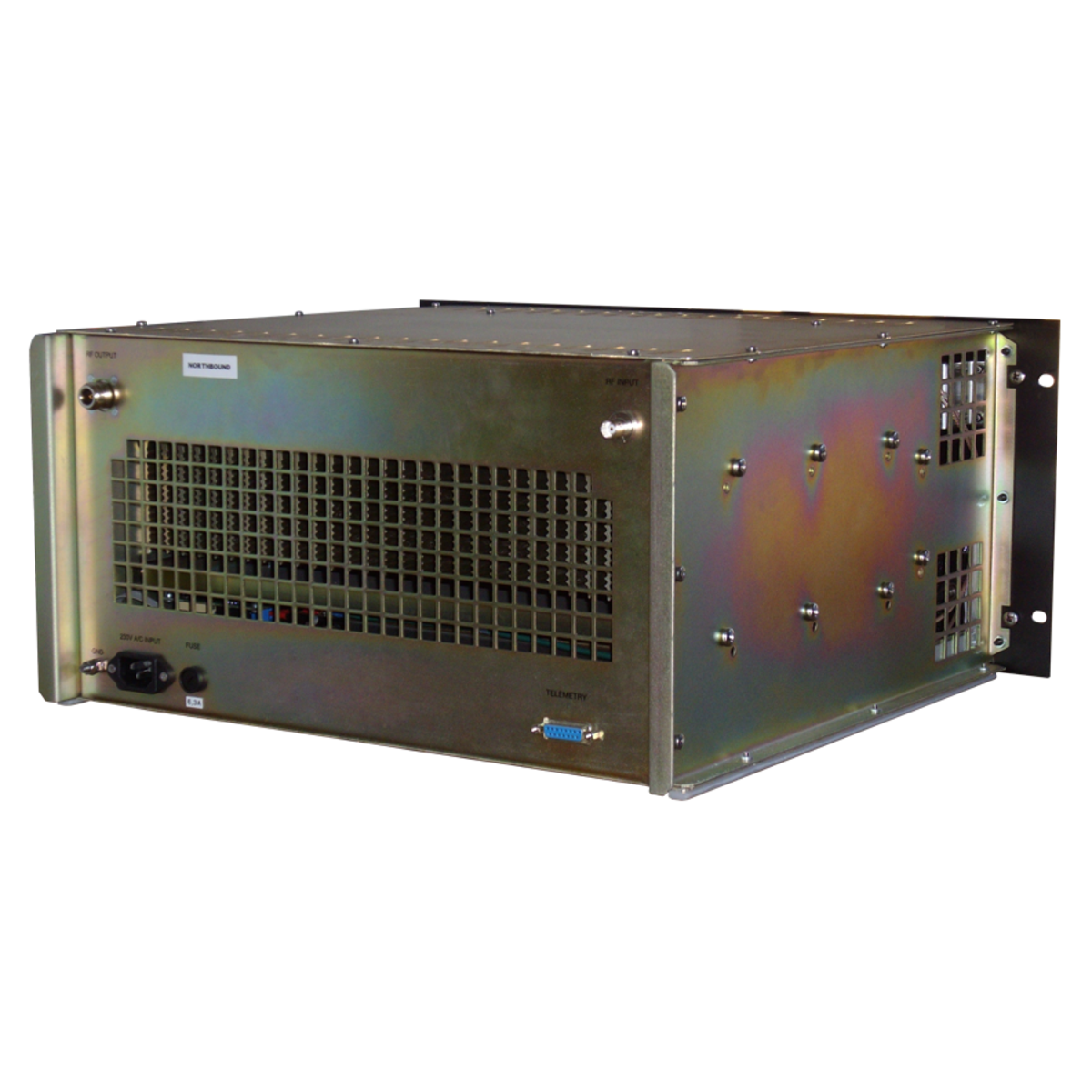

FM RF Power Amplifier - 87.5-108 MHz

It features a state-of-the-art 4-stage LDMOS solid-state output that can provide up to 100w RF output power in single carrier applications. For Multiple Carrier Power Amplifier (MCPA) applications, such as multi-channel FM rebroadcast systems, the excellent linearity of this amplifier optimises the number of RF carriers and their individual RF output powers that can be provided - subject to the allowable Intermodulation Products (IM) performance. This full-featured, high performance RF power amplifier is compatible with narrowband and wideband modulation schemes and is self-contained with an integral PSU and high-volume fan cooling system. Dry relay alarm contacts are provided for connection to external monitoring equipment if desired. The unit is housed in a compact 5RU 19-inch rack mount enclosure for convenient installation and maintenance.

• 100W single carrier or Multiple Carrier Power Amplifier (MCPA) operation
• High-linearity, 4-stage, 5th generation State of the Art LDMOS design.
• ALC built in for absolute control of RF output power
• 3 Digit, 7 segment digital display
• Integral fan cooling system
• Remote telemetry with voltage free contacts and sample voltages
• Space-efficient 5RU 19in rack mount enclosure

Documents:

RFI PA88108 RF Power Amplifier - Datasheet
RFI PA88108 RF Power Amplifier - User Manual
