FM RF Power Amplifier - 87.5-108 MHz - Enhanced

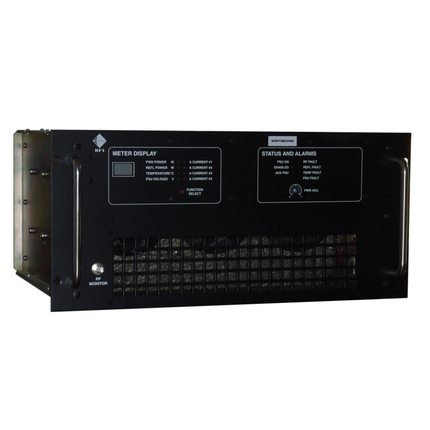

It features a state-of-the-art 4-stage LDMOS solid-state output that can provide up to 100w RF output power in single carrier applications. For Multiple Carrier Power Amplifier (MCPA) applications, such as multi-channel FM rebroadcast systems, the excellent linearity of this amplifier optimises the number of RF carriers and their individual RF output powers that can be provided - subject to the allowable Intermodulation Products (IM) performance. This full-featured, high performance RF power amplifier is compatible with narrowband and wideband modulation schemes and is self-contained with an integral PSU and high-volume fan cooling system. Dry relay alarm contacts are provided for connection to external monitoring equipment if desired. The unit (FM RF Power Amplifier - 87.5-108 MHz - Enhanced) is housed in a compact 5RU 19-inch rack mount enclosure for convenient installation and maintenance.
- 100W single carrier or Multiple Carrier Power Amplifier (MCPA) operation
- High-linearity, 4-stage, 5th generation "State of the Art" LDMOS design.
- ALC built in for absolute control of RF output power
- 3 Digit, 7 segment digital display
- Integral fan cooling system
- Remote telemetry with voltage free contacts and sample voltages
- Space-efficient 5RU 19in rack mount enclosure
Note 1. The number of RF carriers and the per-carrier RF Output power capability in multiple carrier (MCPA) applications is subject to the allowable resulting Intermodulation Products (IM) and RF Spurious Suppression performance.
Documents:
RFI PA88108 RF Power Amplifier - Datasheet
RFI PA88108 RF Power Amplifier - User Manual
