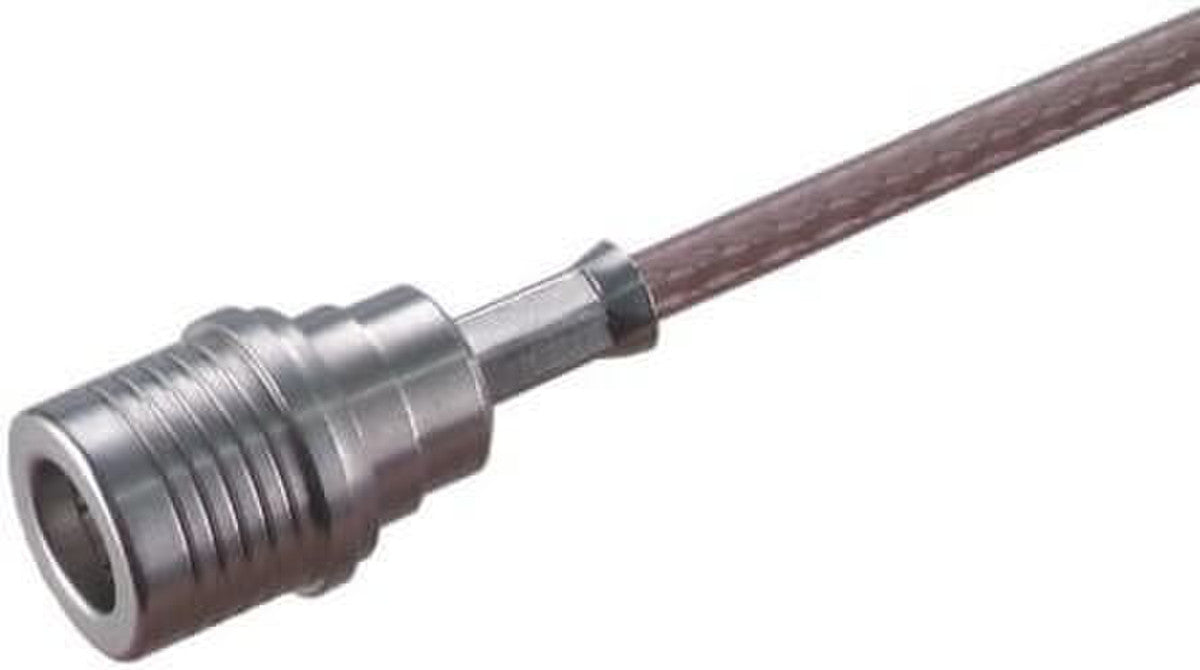

Huber+Suhner QMA-Male Connector, RG316/174 - Crimp

Huber+Suhner QMA-Male Connector, RG316/174 - Crimp

Available

Item ID:
168027121
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
11_QMA-50-2-2/133_NE
Send Request for Quote (RFQ) Discount Offers
Huber+Suhner QMA-Male Connector: RG316/174, 50 Ohm, up to 18 GHz, optimized Return Loss, snap-lock mechanism, high packaging density.
Regular price $42.05
Regular price $0.00 Sale price $42.05
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Huber+Suhner QMA-Male Connector, RG316/174 - Crimp, offers a seamless blend of performance and efficiency. With a 50 Ohm impedance and a frequency range extending up to 18 GHz, this connector is optimized for Return Loss up to 6 GHz. The QMA interface, built on SMA dimensions, introduces a revolutionary snap-lock mechanism, ensuring a quicker, safer coupling operation. This translates to significant time savings during system production. Enjoy enhanced packaging density compared to SMA connectors, as no torque spanner is needed for coupling nut fastening. The QMA(M) Connector, crafted from high-quality brass with SUCOPLAT finish, features a straight body style and offers versatile termination options with Crimp center and Crimp outer. Notably, QMA is not intermateable with SMA.

Product Features:

  • This connector offers a 50 Ohm impedance and supports a frequency range up to 18 GHz, with Return Loss optimized up to 6 GHz.
  • The snap-lock mechanism facilitates easy, fast, and safe coupling operations.
  • It is ideal for efficient system production, saving valuable time.
  • This connector increases packaging density as no torque spanner is required for the coupling nut.
  • It provides versatile termination options with Crimp center and Crimp outer for flexible connectivity.
  • The brass body with SUCOPLAT finish ensures durability and reliability.

Application Areas:

  • This connector is perfect for high-frequency applications up to 18 GHz.
  • It is suitable for systems requiring quick and safe coupling operations.
  • This connector is ideal for environments where enhanced packaging density is beneficial.

In the Box:

  • 1x Huber+Suhner QMA-Male Connector, RG316/174 - Crimp

Product Specifications

MPN 11_QMA-50-2-2/133_NE
Brands Huber+Suhner
Cable supported RG174, RG316
Cable type RG174
Centre conductor Crimp
Component type Connector
Connector QMA(M)
Connector end a QMA (M)
Height 2.21
Impedance ohm 50
Inner attachment Crimp
Length 8.78
Max frequency 18 GHz
Max frequency mhz 18000
Min frequency mhz 0
Mounting angle Straight
Width 8.1
