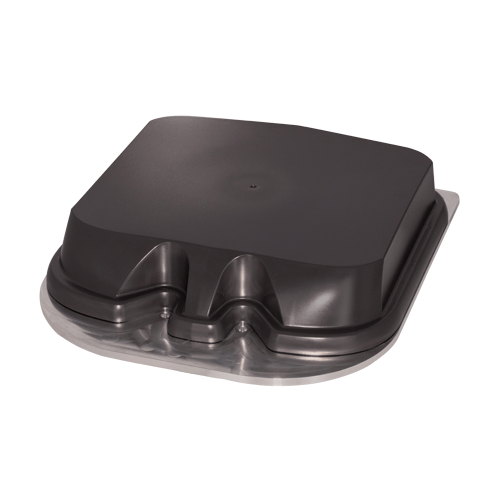

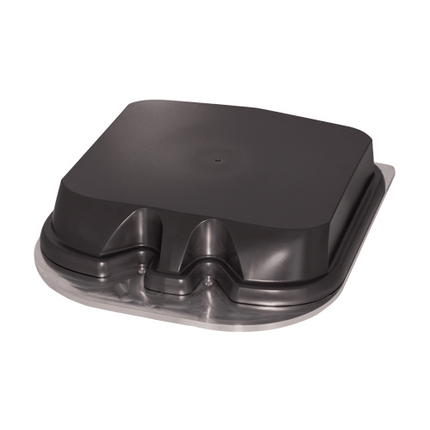

Huber+Suhner 3G-4G Sencity Rail Antenna, 7-Port , 2x2 MIMO, GNSS

    Huber+Suhner 3G-4G Sencity Rail Antenna, 7-Port , 2x2 MIMO, GNSS

      Product form
      Item ID:
      165022012
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      1399.99.0153

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Huber+Suhner 3G-4G Sencity Rail Multi 7-Port Antenna; 2x2 MIMO + GNSS has a rugged design, meets EN 50155 Railway Standard and is fire retardant.

      Price on Application

      Product Description

      Huber+Suhner 3G-4G Sencity Rail Multi 7-Port Antenna; 2x2 MIMO + GNSShas a rugged design, meets EN 50155 Railway Standard and is fire retardant according to EN 45545-2 and NFPA-130.
      Port 1 Port 2 Port 3
      Port Name Cellular 1-4 Wi-Fi 1-2 GNSS
      Connector N (female) N (female) TNC (male)
      Cable Type Radox RF 316 D Radox RF 316 D Radox RF 316 D
      Cable Length (m) 0.17 0.23 0.25
      Polarization vertical vertical circular right
      DC grounded yes yes -

      Product Specifications

      MPN 1399.99.0153
      Antenna cable type RADOX RF-316-D
      Antenna port connectors N (F), TNC (M)
      Back front plate material Aluminium
      Brands Huber+Suhner
      Cable length m 0.25
      Certifications WEEE 2012/19/EU, REACH 1907/2006/EC, ELV 2000/53/EC, 96h, Cat. 1 class B, IP69, 16h, 2 cycles, EN 50155:2008-05, 2011/65/EU (RoHS ? including 2015/863 and 2017/2102), +25/55?C, -55?C, ?12.2.10 EN 60068-2-11 Salt Mist test Ka, ?12.2.11 EN 61373 ? 10 Mechanical shock test, ?12.2.11 EN 61373 ? 9 Random Vibration (Long life) test, ?12.2.12 DIN EN 60529 Ingress protection test, ?12.2.3 EN 60068-2-1 Cold temperature test Ad, ?12.2.4 EN 60068-2-2 Dry heat test Bd +85?C, ?12.2.5 EN 60068-2-30 Damp heat cyclic test Db
      Coverage type Omni-directional
      Environmental conditions Outdoor
      Flammability rating EN 45545-2, R24 HL3, EN45545-2:2013 + A1:2015, Tested according to ISO 4589-2:2017, NFX 70-100-1:2006, ISO 5659-2:2011.
      Height 36.8
      Ingress protection ip IP69
      Installation type External mounting
      Ip rating IP69
      Lead free soldered Yes
      Length 42.5
      Low pim No
      Max frequency mhz 7125
      Max gain dbd dbi 7
      Mimo support Yes
      Min frequency mhz 694
      Min gain dbd dbi 5
      Model 1399.99.0153
      Mount supported Screw mount
      Mount supported detailed Screw
      No of antenna ports 7
      Operating temperature -40?C to 85?C (operating/ transport), -55?C to 85?C (storage)
      Power w 80
      Radome colour RAL 7043 (dark grey)
      Radome material PC (Polycarbonate)
      Solar radiation F1, UL 746C
      Technologies supported Wi-Fi, 2G, 3G, 4G, GPS
      Width 8.4
