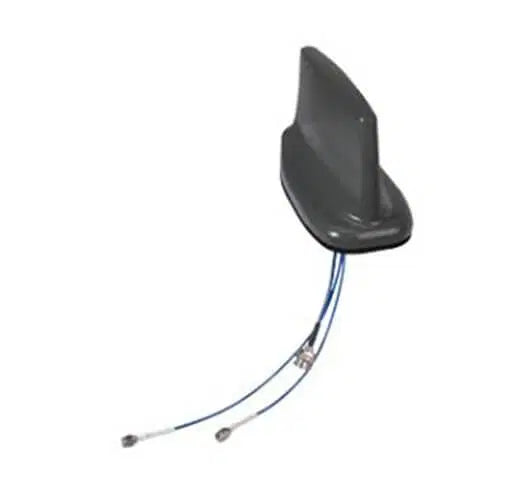

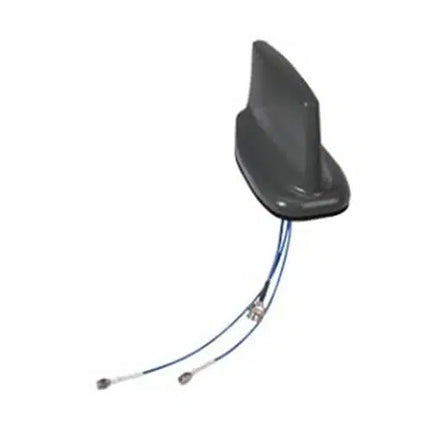

Huber+Suhner 3G-4G Sencity Road Antenna, 2x2 MIMO, GNSS

Huber+Suhner 3G-4G Sencity Road Antenna, 2x2 MIMO, GNSS

On backorder

Item ID:
165022013
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
1399.99.0129
Send Request for Quote (RFQ) Discount Offers
Huber+Suhner 3G-4G Sencity Road Antenna; 2x2 MIMO + GNSS operates and can be stored in -40 °C to +85 °C.  It made from acrylic ester-styrene-acrylonitrile.
Regular price $385.00
Regular price $0.00 Sale price $385.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Huber+Suhner 3G-4G Sencity Road Antenna; 2x2 MIMO + GNSS operates and can be stored in -40 °C to +85 °C.  It made from acrylic ester-styrene-acrylonitrile and is dark grey. PORTS
Port 1  Port 2 Port 3
Connector SMA (male) SMA (male) TNC (male)
Cable Type Enviroflex 316 D-AM Enviroflex 316 D-AM Enviroflex 316 D-AM
Cable Length (m) 0.17 0.23 0.25
Polarization vertical vertical circular right
DC grounded no no no


Product Specifications

MPN 1399.99.0129
Antenna cable type ENVIROFLEX-316-D -AM
Antenna port connectors SMA (M), TNC (M)
Back front plate material Aluminium
Brands Huber+Suhner
Cable length m 0.25
Certifications WEEE 2012/19/EU, REACH 1907/2006/EC, ELV 2000/53/EC, CE-Mark, E-Mark, ISO 16750:2010 environmental tests, MIL-F-14072D low corrosion design, 2011/65/EU (RoHS ? including 2015/863 and 2017/2102)
Coverage type Omni-directional
Environmental conditions Indoor/ Outdoor
Flammability rating ECE-R118
Height 8.3
Ingress protection ip IP69, IP68
Installation type External mounting
Ip rating IP68, IP69
Length 20.8
Low pim No
Max frequency mhz 2690
Max gain dbd dbi 6
Mimo support Yes
Min frequency mhz 698
Min gain dbd dbi 4
Model 1399.99.0129
Mount supported Single Hole
Mount supported detailed Single Hole
No of antenna ports 4
Power w 80
Radome colour RAL 7043 (dark grey)
Radome material ASA (acrylic ester-styrene-acrylonitrile)
Solar radiation DIN 75220
Technologies supported 2G, 3G, 4G, GPS
Width 8.8
