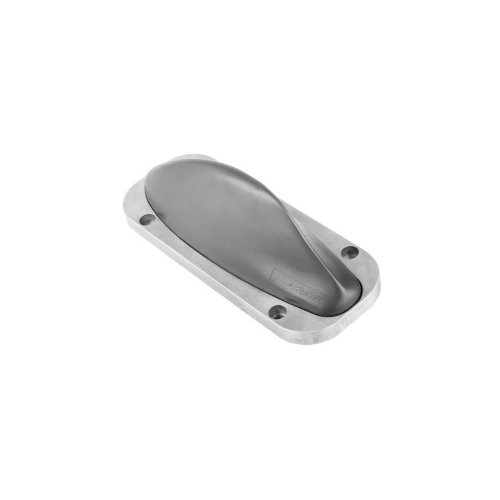

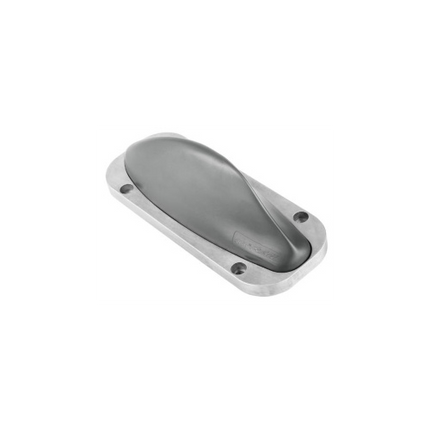

Huber+Suhner 3G-5G Sencity Rail Antenna, 1x1 SISO

    Huber+Suhner 3G-5G Sencity Rail Antenna, 1x1 SISO

      Product form
      Brand:
      Huber+Suhner
      Item ID:
      165022010
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      1399.17.0122
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Huber+Suhner 3G-5G Sencity Rail Antenna; 1x1 SISO operates in -55 °C to +85 °C and can be stored within the same temperature.

      $996.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      Huber+Suhner 3G-5G Sencity Rail Antenna; 1x1 SISOoperates in -55 °C to +85 °C and can be stored within the same temperature. Survives wind speed of 500 km/h PORTS
      Port 1
      Connector N, jack (female)
      Polarization vertical
      DC grounded Yes

      Product Specifications

      MPN 1399.17.0122
      Antenna port connectors N (F)
      Back front plate colour Grey
      Back front plate material Aluminium
      Brands Huber+Suhner
      Certifications WEEE 2012/19/EU, REACH 1907/2006/EC, ELV 2000/53/EC, EN 50155:2018-05, ISO 4589-2:2017, ISO 5659-2:2011, NFX 70-100-1:2006, 2011/65/EU (RoHS ? including 2015/863 and 2017/2102)
      Coverage type Directional
      Environmental conditions Outdoor
      Flammability rating EN 45545-2, R24 HL3
      Height 10
      Ingress protection ip IP67, IP69
      Installation type External mounting
      Ip rating IP67, IP69
      Lead free soldered Not Soldered
      Length 25.6
      Low pim No
      Max frequency mhz 6425
      Max gain dbd dbi 8.5
      Mimo support No
      Min frequency mhz 694
      Min gain dbd dbi 5
      Model 1399.17.0122
      Mount supported Screw mount
      Mount supported detailed Screw
      No of antenna ports 1
      Operating temperature -55?C to 85?C (operating/ storage/ transport)
      Plating Passivated
      Power w 800
      Radome colour RAL 7043 (dark grey)
      Radome material PC (Polycarbonate)
      Solar radiation F1, UL 746C
      Technologies supported Wi-Fi, 2G, 3G, 4G, 5G
      Width 9
