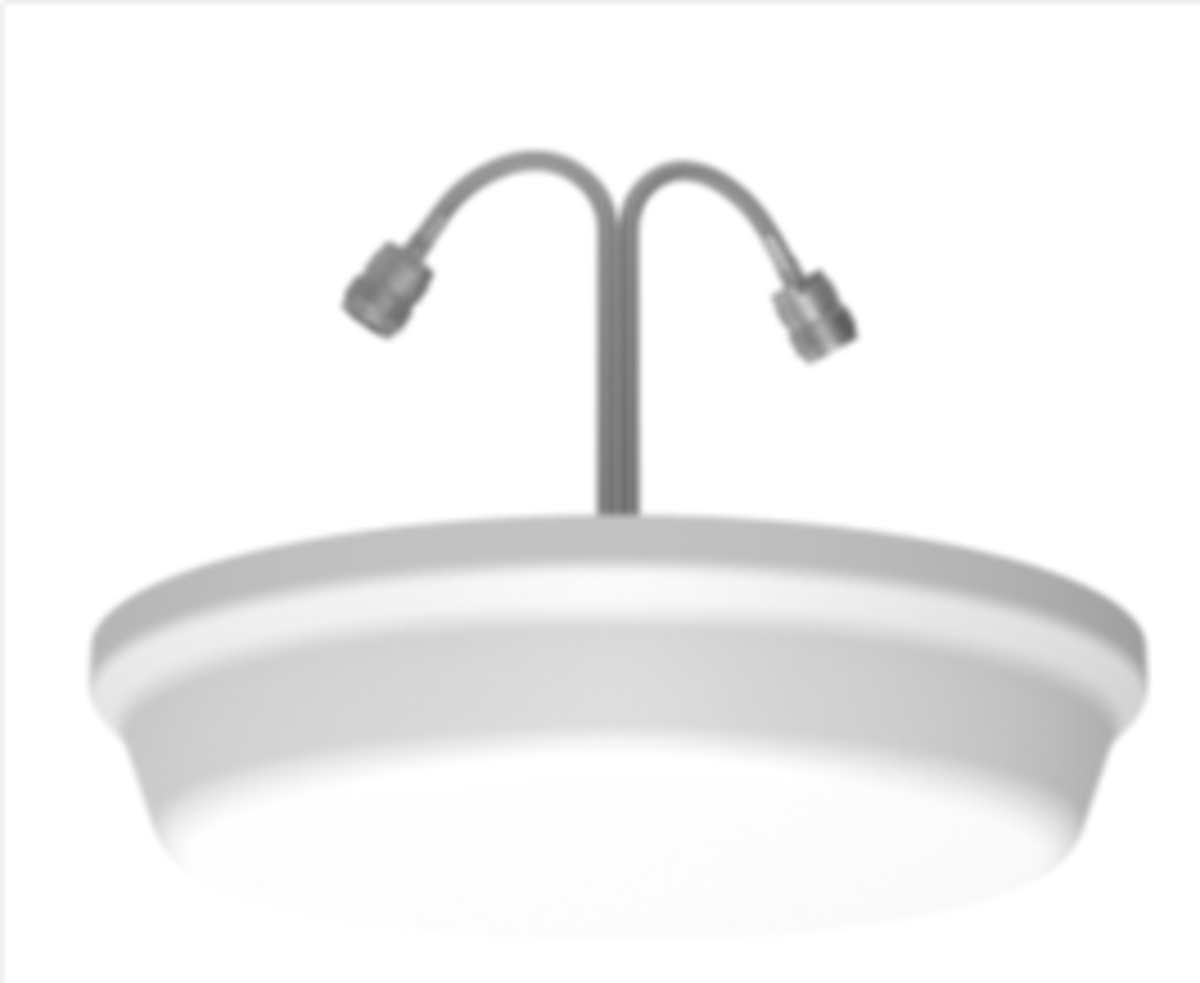

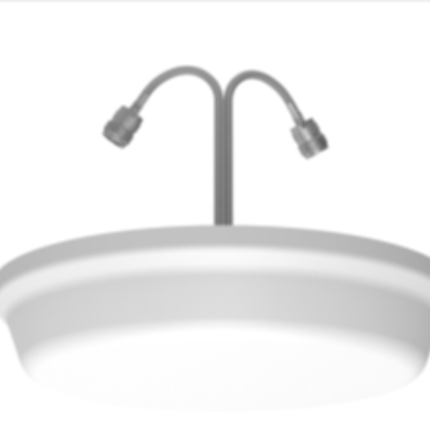

RFI DAS6927LP-MOC153 Omni Ceiling Mount Antenna, MIMO, 698-2700 MHz, 4.3-10

RFI DAS6927LP-MOC153 Omni Ceiling Mount Antenna, MIMO, 698-2700 MHz, 4.3-10

Sold out

Brand:
Item ID:
168014151
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
DAS6927LP-MOC153
Discount Offers
Low PIM Low Profile MIMO Indoor/Outdoor Omni Ceiling Antenna - 698-960 MHz & 1710-2700 MHz 4.3-10 is a high-performance, PIM-rated DAS antenna range
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

Low PIM Low Profile MIMO Indoor/Outdoor Omni Ceiling Antenna - 698-960 MHz & 1710-2700 MHz 4.3-10

RFI's Low PIM DAS range is a high-performance, PIM-rated DAS antenna range, offering indoor or outdoor panel antennas with great directional beam control, and a range of indoor and outdoor Omni directional solutions to suit indoor, and outdoor requirements, with the optional low-profile aesthetic. The multi-band capability of each offering covers at least 690-960 MHz & 1710-2700 MHz and eliminates the need to purchase different antennas to suit different bands of operation. This range is ideal for all fixed in-building coverage applications.

Features:

  • Low Profile compact form factor
  • Coverage across multiple cellular and WLAN bands Ideal for DAS deployment for in-building coverage solutions
  • Excellent -153 dBc PIM performance
  • Single stud mount with 2 x 300 mm tails terminated with 4.3-10 female connectors IP-rated outdoor solutions.

Product Specifications

MPN DAS6927LP-MOC153
Brands RFI
Construction UV resistant White ABS, IP67 rated*
Height 5
Horizontal beamwidth 360
Length 25
Nominal gain dbi 4.0 / 4.3 / 5.9 / 5.9
Pim 3rd 2x20 w dbc -153
Power w 50
Radome diameter mm 218
Termination 2 x 300mm tail with 4.3-10 (F) connectors
Vertical beamwidth 100-200 / 100-215 / 30-200 / 45-80
Vswr <1.8:1 / <1.6:1 / <1.5:1 / <1.6:1
Width 25
