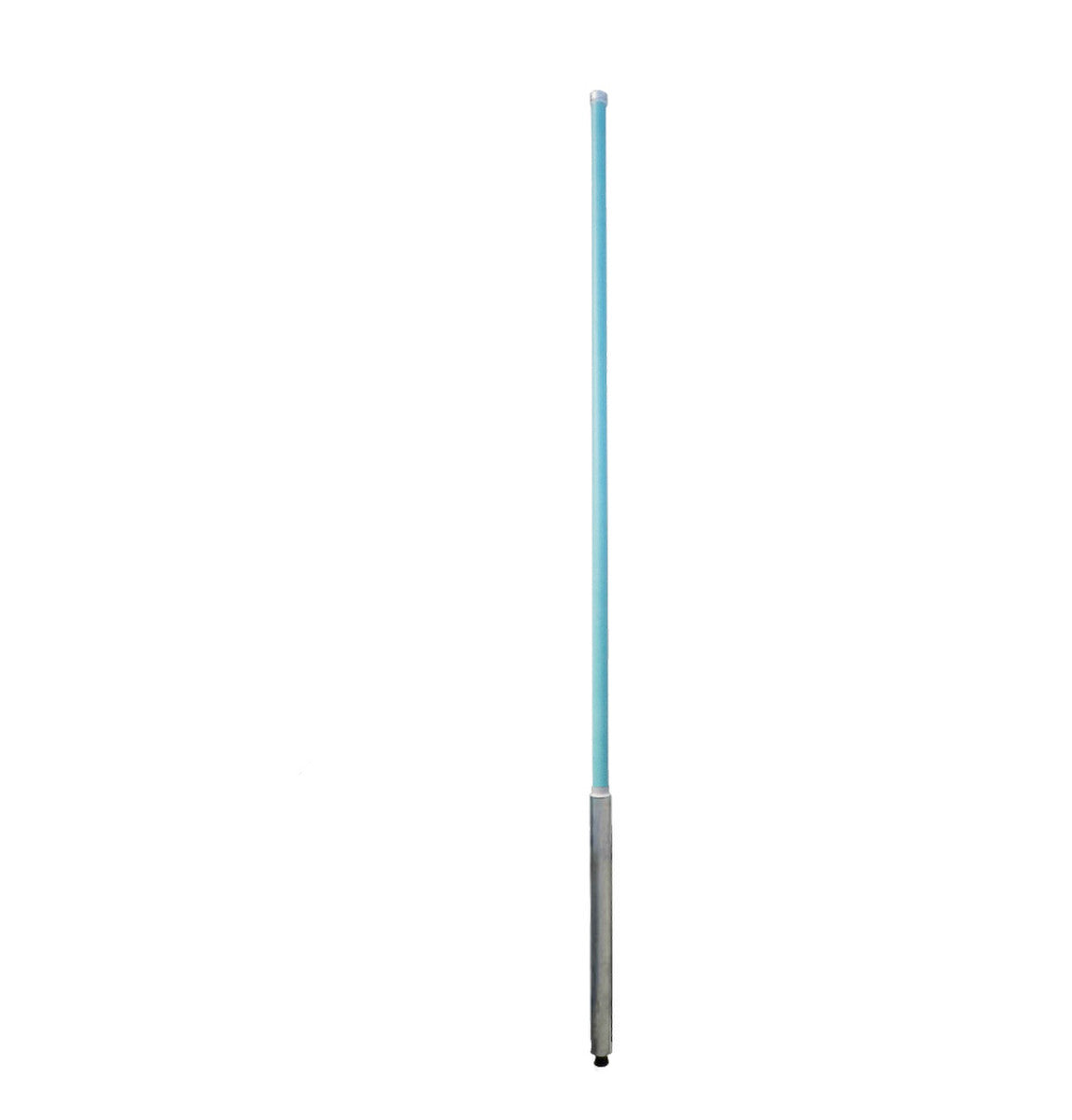

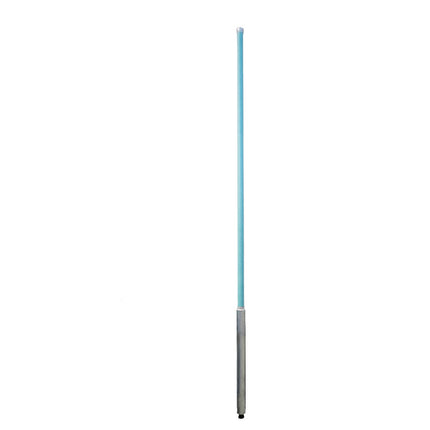

RFI COL45-490-P Meander Collinear Antenna, 470-490 MHz, 7 dBd, 4.3-10-Female

    RFI COL45-490-P Meander Collinear Antenna, 470-490 MHz, 7 dBd, 4.3-10-Female

      Product form
      Brand:
      RFI
      Item ID:
      167015803
      Export:
      Restricted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      COL45-490-P
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      MEANDER COLLINEAR 470-490 MHz 7 dBd GAIN; -150 dBC PIM; 4.3-10 FEMALE CONNECTOR designed for wireless applications requiring high performance.

      Available

      $904.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        MEANDER COLLINEAR 470-490 MHz 7 dBd GAIN; -150 dBC PIM; 4.3-10 FEMALE CONNECTOR

        • Excellent bandwidth providing full band coverage
        • Internally DC grounded for lightning protection and the reduction of precipitation noise
        • Patented Meander PCB design for optimum RF pattern stability
        • Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum network performance
        • Excellent Peak Instantaneous Power (PIP) rating (25 kW)
        The patented MEANDER COLLINEAR 470-490 MHz 7 dBd GAIN allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated. Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.

        Documents:

        RFI COL45 Antenna - Datasheet

        Product Specifications

        MPN COL45-490-P
        Antenna port connectors 4.3-10 (F)
        Brands RFI
        Construction Composite fibreglass sky blue radome, aluminum mounting tube
        Coverage type Omni-directional
        Height 3
        Horizontal beamwidth Omni +/- 0.5dB
        Installation type External mounting
        Length 99
        Low pim Yes
        Max frequency mhz 490
        Max gain dbd dbi 7
        Mimo support No
        Min frequency mhz 470
        Min gain dbd dbi 7
        Mount supported Clamp mount
        Mount supported detailed UC1
        Mounting area 500mm x 48.5mm diameter Ecofilm plated aluminium
        No of antenna ports 1
        Nominal gain dbi 9.1
        Peak instantaneous power kw 25
        Pim 3rd 2x20 w dbc -150
        Polarisation Vertical
        Power w 250
        Radome diameter mm 38
        Technologies supported UHF
        Termination 4.3-10
        Torque nm 132
        Tuned bandwidth Full band
        Vertical beamwidth 12.5?
        Vswr <1.5:1
        Width 3
        Wind gust km h 240
        Wind thrust 145
