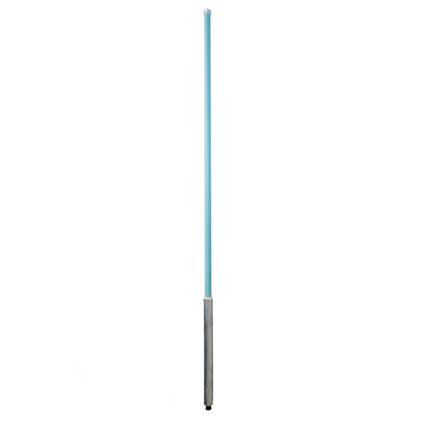

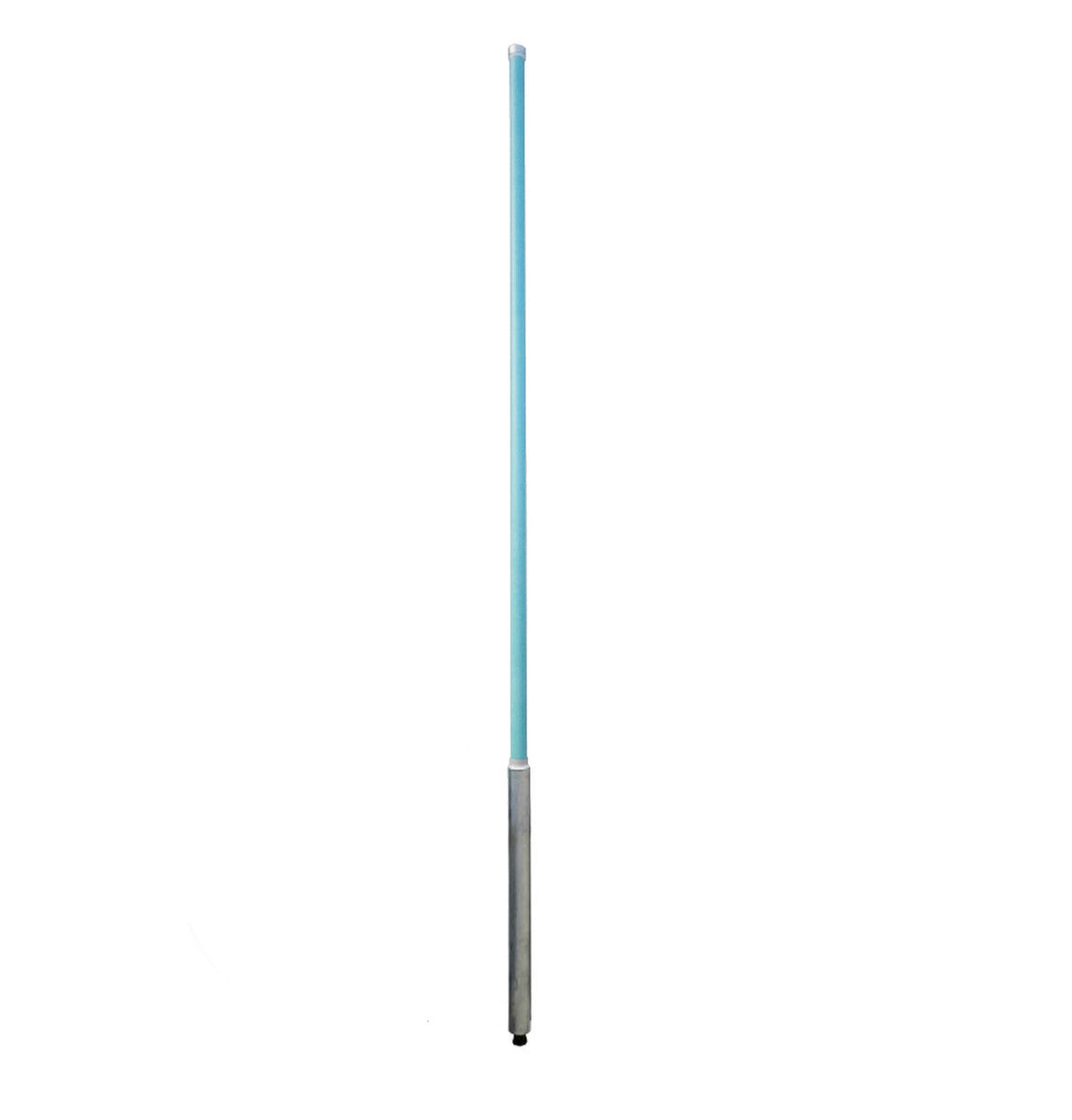

RFI COL811-870-P Meander Collinear Antenna, 806-870 MHz, 9 dBd, 4.3-10-Female

    RFI COL811-870-P Meander Collinear Antenna, 806-870 MHz, 9 dBd, 4.3-10-Female

      Product form

      Meander Collinear 806-870 MHz 9 dBd Gain; -150 dBc PIM; 4.3-10 Female Connector designed for wireless applications requiring high performance.

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167015839
      MPN
      COL811-870-P
      Shipping
      Please contact us for lead time
      Standard Warranty Global Insurance Except USA & Canada

      $1,148.76

      Bulky item. Export orders may incur additional charges — ask us for a quote.

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        Meander Collinear 806-870 MHz 9 dBd Gain; -150 dBc PIM; 4.3-10 Female Connector

        • Excellent bandwidth providing full band coverage
        • Internally DC grounded for lightning protection and the reduction of precipitation noise
        • Patented Meander PCB design for optimum RF pattern stability
        • Industry leading PIM ratings (-150 dBc) providing low IM and low noise characteristics for optimum network performance
        • Excellent Peak Instantaneous Power (PIP) rating (25 kW)
        The MEANDER COLLINEAR 806-870 MHz design allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated. Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth.

        Documents:

        RFI COL811 Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length (cm) 350
        Width (cm) 10
        Height (cm) 10
        Antenna Port Connectors 4.3-10 (F)
        Construction Composite fibreglass sky blue radome, aluminium mounting tube
        Coverage Type Omni-directional
        Horizontal Beamwidth Omni +/- 0.5dB
        Installation Type External mounting
        Low PIM Yes
        Max Frequency (MHz) 870
        Max Gain (dBd/dBi) 11
        MIMO Support No
        Min Frequency (MHz) 806
        Min Gain (dBd/dBi) 11
        Mount Supported Clamp mount
        Mount Supported - Detailed UC1
        Mounting Area 500mm x 48.5mm diameter Ecofilm plated aluminium
        No. of Antenna Ports 1
        Nominal Gain [dBi] 11.1
        Peak Instantaneous POWER Kw 25
        PIM (3rd, 2 x 20 W) dBc -150
        Polarisation Vertical
        Power [W] 250
        Radome Diameter Mm 38
        Technologies Supported UHF
        Termination 4.3-10
        Torque [Nm] 223
        Tuned Bandwidth Full band
        Vertical Beamwidth 6.5?
        VSWR <1.5:1
        Wind Gust (km/h) 240
        Wind Thrust 179
