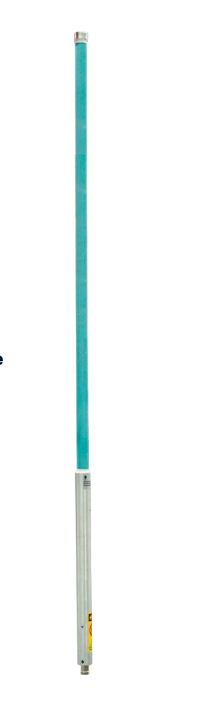

Meander Collinear Antenna (450-470 MHz), 6 dBd Gain; is designed for wireless applications requiring high performance, broad bandwidth, and exceptional PIM and PIP specifications. With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated.
Features:
-
High Performance Design: Specifically crafted for wireless applications, offering excellent bandwidth and full band coverage.
-
Lightning Protection: Internally DC grounded for enhanced lightning protection and reduced precipitation noise.
-
Stacked Half-Wave Elements: Unique design allows stacking of without variations in cable lengths, improving overall construction quality.
-
Patented Meanderâ„¢ PCB Design: Ensures optimum RF pattern stability by eliminating variations in cable lengths and mechanical joints.
-
Industry-Leading PIM Ratings: Impressive -150 dBc ratings for low intermodulation and noise characteristics, optimizing network performance.
-
PIP Rated: An excellent Peak Instantaneous Power (PIP) rating of 25 kW for reliable and robust operation.
-
Consistent Performance: Each antenna provides the same pattern, tilt, and VSWR characteristics over its operating bandwidth.
Electrical Specifications:
- Nominal Gain dBd (dBi): 6.1(8.2)
- Frequency MHz: 450-470
- Tuned Bandwidth MHz: Full Band
- VSWR: <1.5:1
- Nominal Impedance Ω: 50
- Vertical Beamwidth °: 13
- Horizontal Beamwidth °: Omni +/- 0.5dB
- Power W: 250
- Passive IM 3rd order dBc: -150
- Peak Instantaneous Power kW: 25
Mechanical Specifications:
- Construction: Sky blue fiberglass radome
- Length mm (in): 2810
- Radome Diameter mm (in): 38
- Weight kg (lb): 2.5
- Termination: 4.3 - 10 Female
- Mounting Area mm (in): 500 mm x Ø48.5 mm diameter EcofilmTM plated Aluminium
- Suggested Clamps: 2 x UC1
- Lateral (Thrust) @ 160km/h N (100mph lb): 150
- Wind Gust Rating km/h (mph): 240
- Torque @ 160km/h Nm (100mph ft-lb): 143
Documents:
RFI COL44 Antenna - Datasheet
