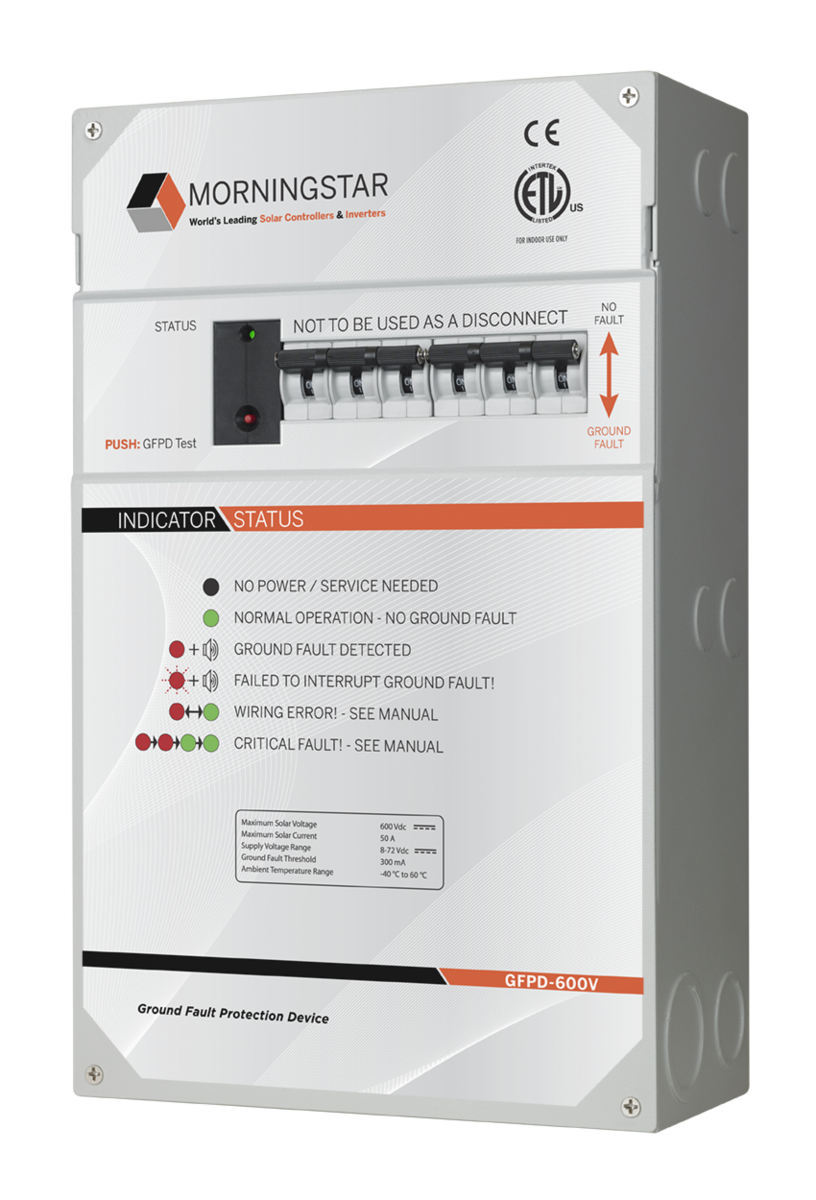

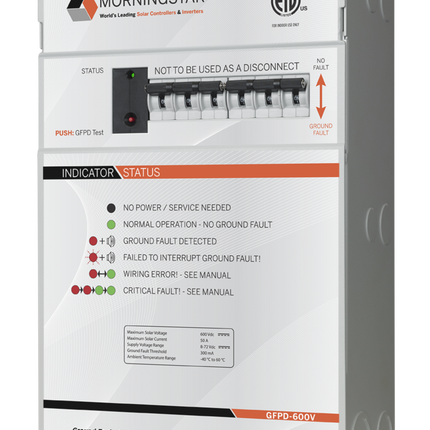

Morningstar GFPD-600V Ground Fault Protection Device for 600V Array

Morningstar GFPD-600V Ground Fault Protection Device for 600V Array

On backorder

Item ID:
168029511
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
GFPD-600V
Send Request for Quote (RFQ) Discount Offers
Morningstar Ground Fault Protection Device Suits 600V Array used to prevent current from following any unintended paths during a ground fault.
Regular price $1,310.00
Regular price $0.00 Sale price $1,310.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Morningstar GFPD-600V Ground Fault Protection Device is designed to provide reliable ground fault protection for 600V solar arrays. This device ensures enhanced safety and performance for solar power systems.

Product Features:

  • This device offers simple and flexible installation, making it easy to integrate into existing systems.
  • It provides greater sensitivity, ensuring accurate detection of ground faults.
  • The device operates without the need for fuses, simplifying maintenance and reducing costs.
  • It includes various safety features to protect both the system and users.
  • The maximum solar voltage (Voc) supported by this device is 600V.
  • It can handle a maximum solar current of 50A.
  • The supply voltage range for this device is 10-72 Vdc.
  • It has a low self-consumption of less than 0.5W, ensuring efficient operation.
  • The ground fault threshold current is set at 300 mA +/- 10%.
  • The device features 2 poles for effective fault detection.
  • It uses a relay trip method for reliable fault interruption.
  • The output trip signal is 12V.
  • The nominal system voltage supported includes 12, 24, 36, or 48 Vdc.

Application Areas:

  • This device is ideal for off-grid solar power systems, providing essential ground fault protection.
  • It is suitable for residential solar installations, ensuring safe and reliable operation.
  • The device is perfect for industrial solar applications, offering robust performance in demanding environments.
  • It is beneficial for remote battery backup installations, providing dependable fault protection.
  • This ground fault protection device is also suitable for solar-powered cabins, RVs, boats, and tiny homes, ensuring versatile and reliable safety solutions.

In the Box:

  • 1x Morningstar GFPD-600V Ground Fault Protection Device.

Documents:

Morningstar Ground Fault Protection Device - Datasheet Morningstar GFPD-600V Ground Fault Protection Device - User Manual

Product Specifications

MPN GFPD-600V
Battery bank voltage 12, 24, 36, 48
Brands Morningstar
Family TriStar MPPT 600V
Grounding polarity Positive or negative
Height 35.7
Ip rating Indoor mounting only
Length 10.6
Mounting DIN rail and Panel mount options
Regulator type Accessory
Temperature range 50
Width 22.1
