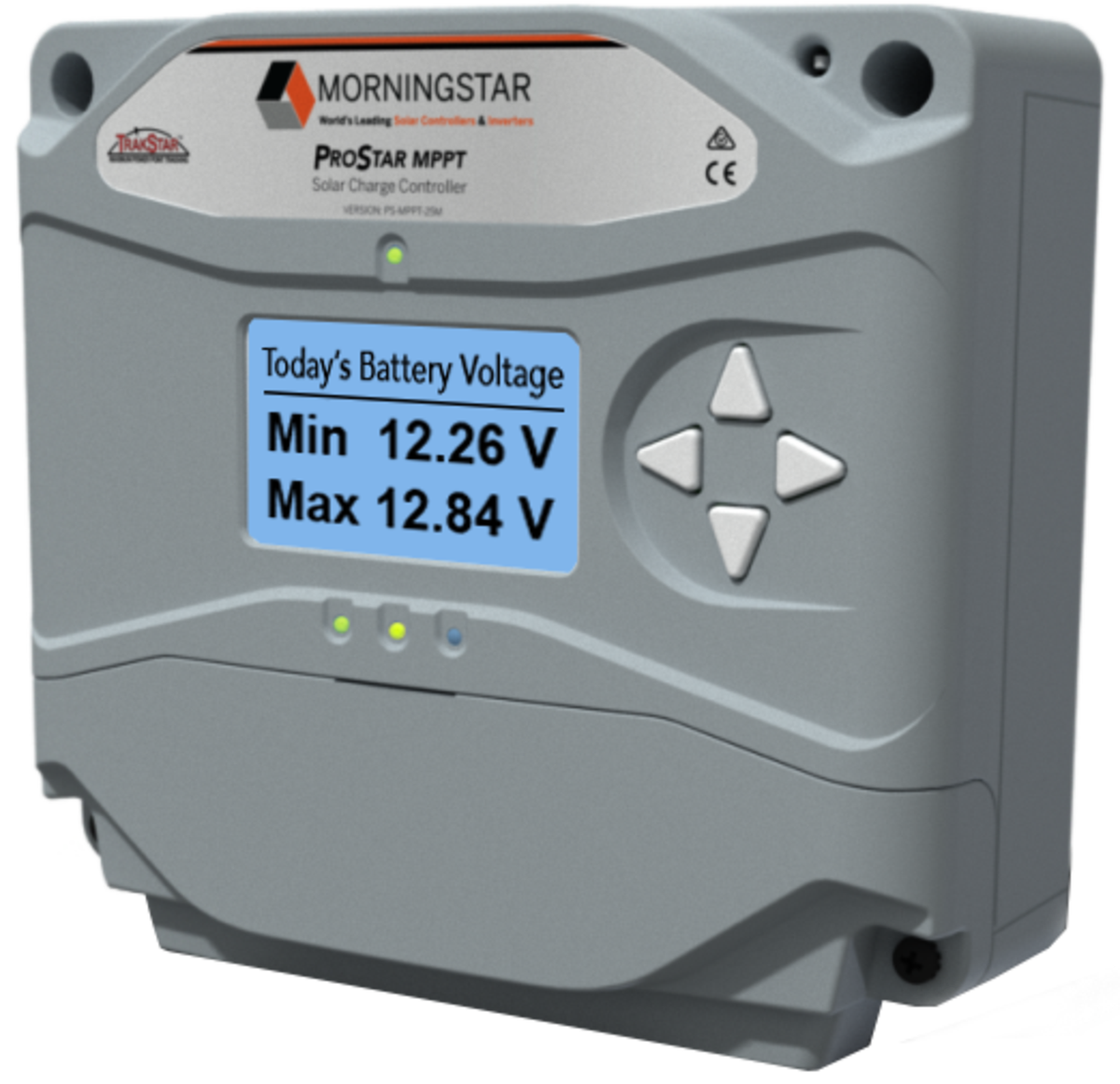

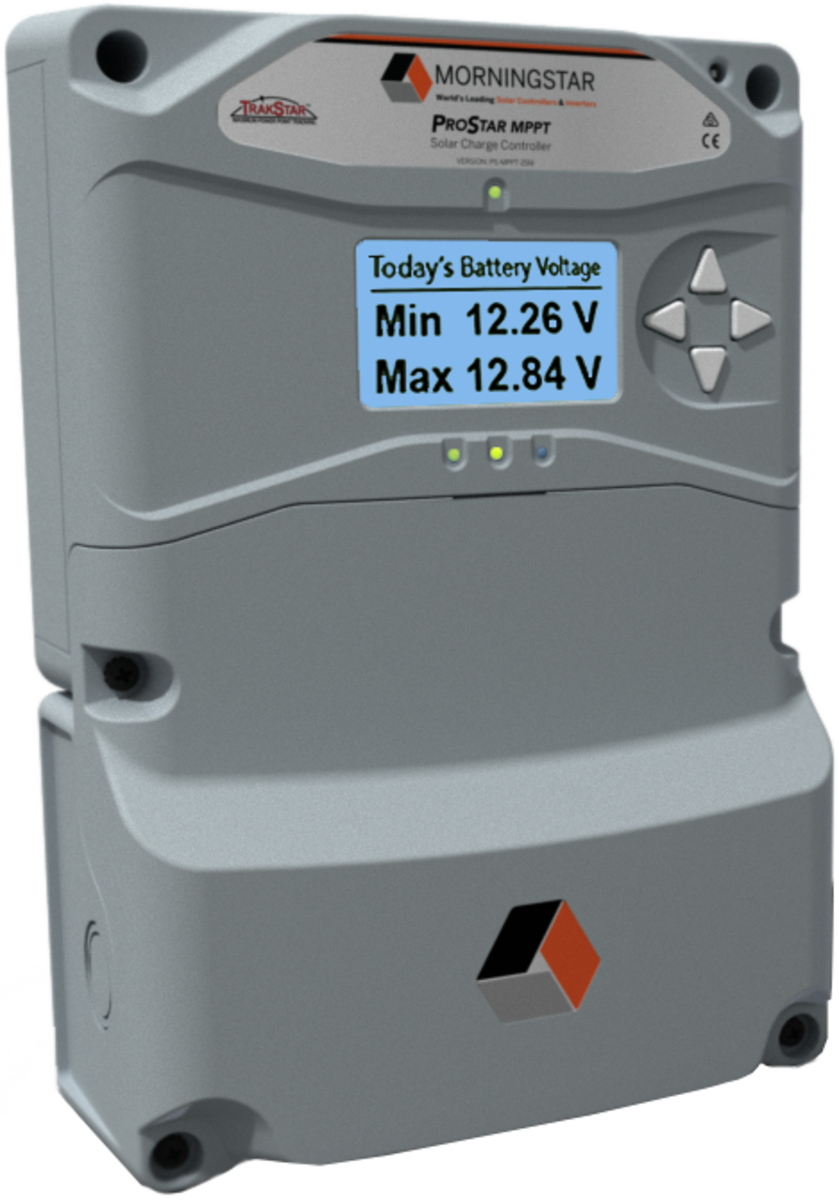

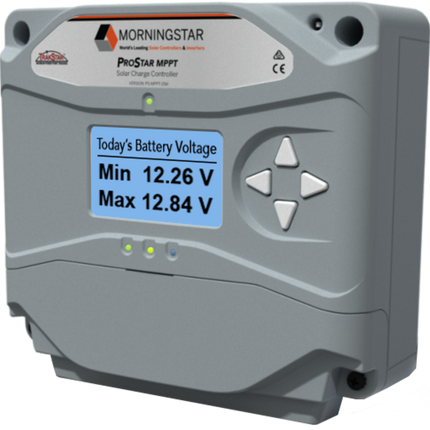

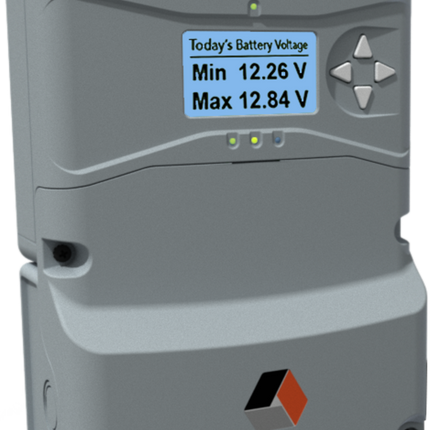

The Morningstar ProStar MPPT PS-MPPT-40M is a 40A MPPT solar charge controller with a built-in meter, designed for off-grid photovoltaic systems. It uses Morningstar's TrakStar MPPT Technology to track the true maximum power point as solar conditions change, helping to maximise energy harvest. The controller supports lead-acid, lithium, NiCd and other battery chemistries with configurable charging profiles, making it suitable for a wide range of off-grid applications.

Product Features:

• Built-in meter allows adjustments to charging, lighting and load control settings without a computer.
• TrakStar MPPT Technology continuously adjusts to the true maximum power point as solar insolation changes throughout the day to maximise energy harvest.
• MODBUS communications protocol allows easy programming, control, remote data access and charge synchronisation.
• Automatic PV based lighting control is field adjustable with multi-event load control options for PV lighting systems.
• Data logging stores up to 256 days of detailed power and load data.
• Fanless design with a polycarbonate case and extruded aluminium heatsink has no moving parts to fail.

Application Areas:

• Agricultural off-grid power systems
• Environmental monitoring stations
• Lighting systems
• Mining operations
• Oil and gas sites
• Railroad signalling
• Security and surveillance systems
• Telecom sites
• Traffic and signalling systems

Selection & Installation Notes:

• Supports a nominal battery voltage of 12V or 24V with a battery voltage range of 10 to 35V.
• Custom programming is required for battery chemistries other than lead-acid.
• Maximum PV open circuit voltage (Voc) is 120 volts, so array sizing should keep Voc within this limit.

Documents:

ProStar MPPT Datasheet (English) ProStar MPPT Operation Manual (English) ProStar MPPT Quick Start Guide (English) ProStar MPPT MODBUS Specification ProStar MPPT Firmware
