Morningstar RSC-1 Adapter - RS232-EIA485

Morningstar RSC-1 Adapter - RS232-EIA485

Available

Item ID:
168030390
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
RSC-1
Send Request for Quote (RFQ) Discount Offers
Morningstar RSC-1 RS232-EIA485 Adapter enables networking capability by converting a controller or inverter’s RS-232 port to a standard EIA-485 serial connector.
Regular price $176.00
Regular price $0.00 Sale price $176.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

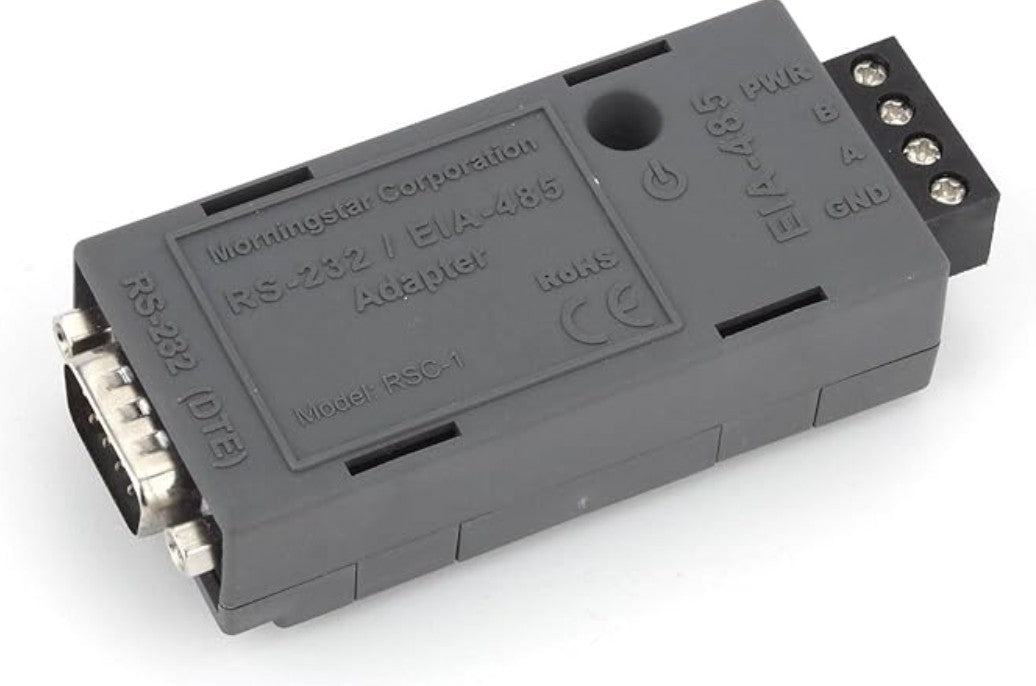

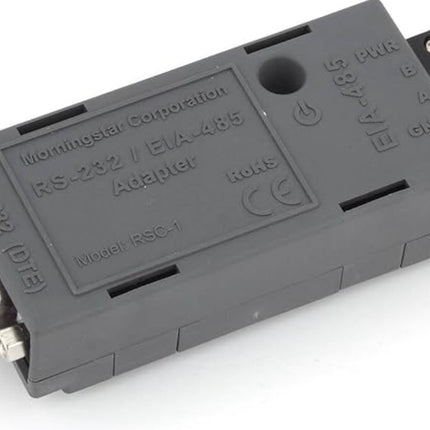

The Morningstar RSC-1 Adapter is designed to enable networking capability by converting a controller or inverter’s RS-232 port to a standard EIA-485 serial connector. This adapter is compatible with any Morningstar controller or inverter equipped with an RS-232 port.

Product Features:

  • This adapter converts a controller or inverter’s RS-232 port to a standard EIA-485 serial connector, facilitating network integration.
  • It features a removable four-position EIA-485 terminal, ensuring flexible connectivity options.
  • The device includes a 9-pin RS-232 connector (male), providing a standard interface for various applications.
  • This product is equipped with a status LED for monitoring and diagnostics, enhancing usability.
  • It has molded tabs for attachment to a 35mm standard DIN rail, simplifying installation.

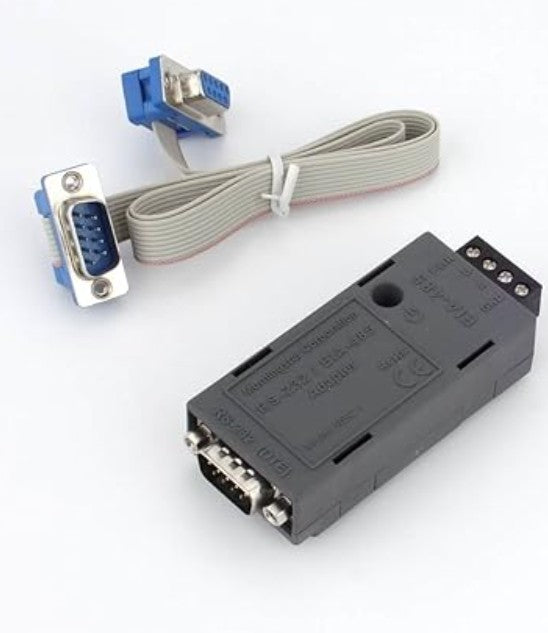

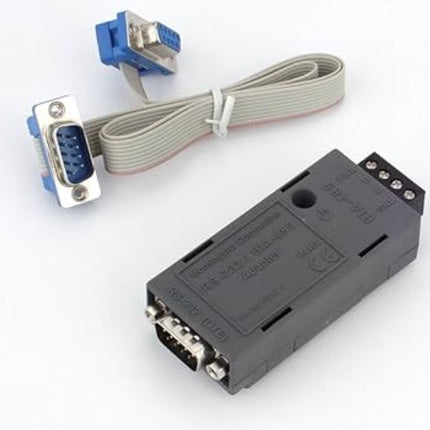

  • The adapter comes with an RS-232 ribbon cable with low-profile connectors, ensuring a neat and organized setup.

Application Areas:

  • This adapter is ideal for enabling networking capability in solar power systems using Morningstar controllers and inverters.
  • It is perfect for industrial applications requiring reliable communication between devices.
  • This product is beneficial for setups that need to convert RS-232 ports to EIA-485 serial connectors for enhanced connectivity.
  • It is suitable for any application that utilizes Morningstar controllers or inverters and requires robust networking solutions.

In the Box:

  • 1x Morningstar RSC-1 Adapter

Documents:

Morningstar RS232-EIA485 Adaptor (RSC-1) - Datasheet Morningstar RS232-EIA485 Adaptor (RSC-1) - Operation Manual

Product Specifications

Add gtin 729198839055
MPN RSC-1
Brands Morningstar
Display interface No
Family SunSaver Duo, SunSaver MPPT, Prostar, ProStar MPPT, Tristar, TriStar MPPT, TriStar MPPT 600V
Grounding polarity Negative Ground
Height 2.3
Ip rating IP20
GTIN/EAN 729198839055
Length 7.2
Mounting Wall or DIN rail
Regulator type Accessory
Remote communications Yes
Temperature range c -40?C to +60?C
Width 3.5
