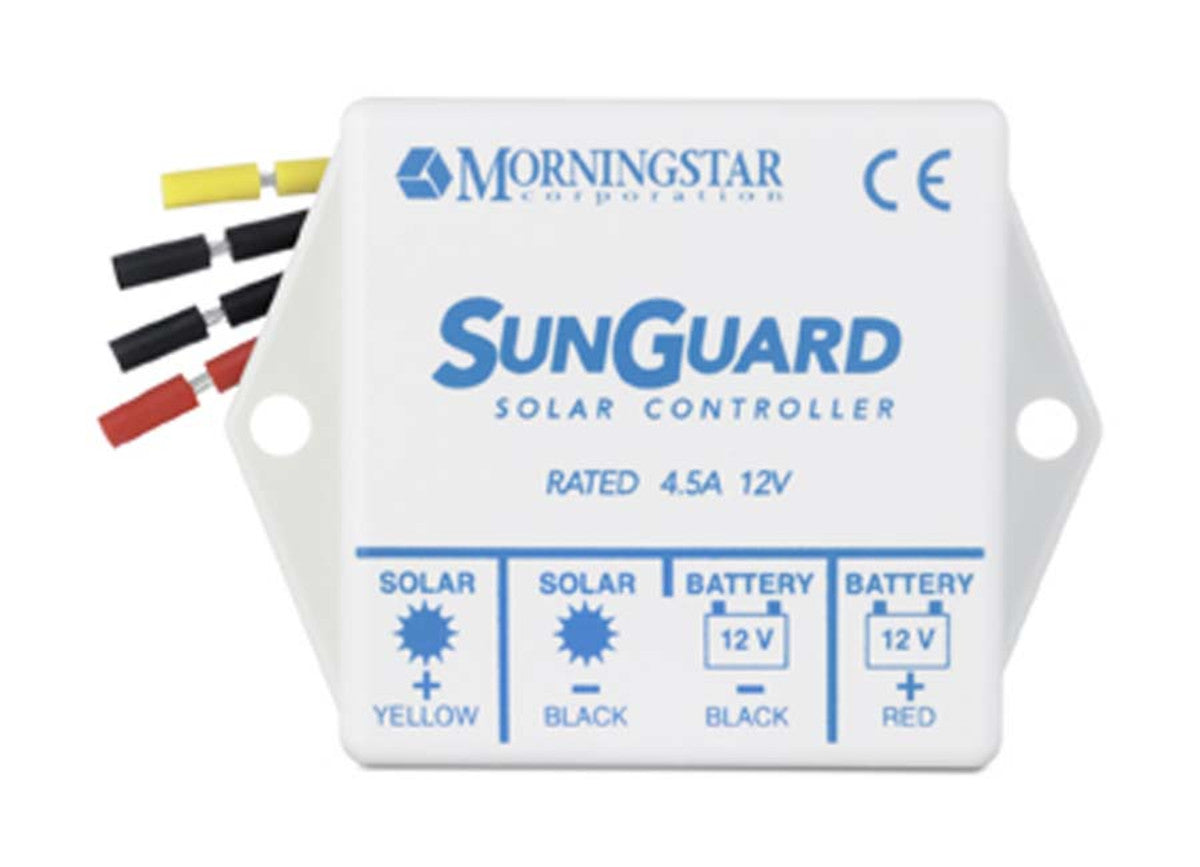

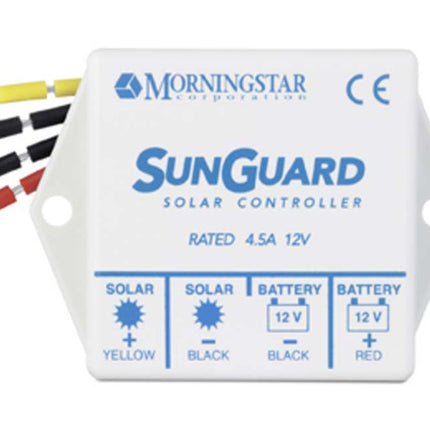

Morningstar SG4 SunGuard PWM Solar Regulator, 4.5A, 12V

Morningstar SG4 SunGuard PWM Solar Regulator, 4.5A, 12V

Available

Item ID:
168030782
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SG-4
Send Request for Quote (RFQ) Discount Offers
Morningstar SunGuard PWM Solar Regulator; 4.5A 12V. Morningstar's SunGuardâ„¢ is the world's leading single module controller.
Regular price $103.00
Regular price $0.00 Sale price $103.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Morningstar SunGuard PWM Solar Regulator is a highly efficient and economical controller designed for small PV systems. It combines the advantages of the SunSaver charging circuit with cost-effective packaging, making it the world's leading single module controller.

Product Features:

  • This regulator utilizes Pulse Width Modulation (PWM) technology to ensure efficient battery charging.
  • It is designed to handle a maximum current of 4.5A, making it suitable for small solar applications.
  • The device operates at 12V, providing reliable performance for various setups.
  • This regulator incorporates the proven SunSaver charging circuit, ensuring high-quality and dependable operation.
  • It features a compact and durable design, making it easy to install and maintain.
  • The device offers excellent protection against overcharging, ensuring the longevity of the battery.
  • It is built with high-quality components, ensuring long-term reliability and performance.
  • This regulator is designed to be cost-effective, providing an economical solution for small PV systems.

Application Areas:

  • This regulator is ideal for small solar power systems, providing efficient and reliable battery charging.
  • It is perfect for residential solar installations where cost-effective solutions are required.
  • This product is beneficial for off-grid applications, ensuring dependable power management.
  • It is suitable for any small PV system that requires a high-quality and economical solar regulator.

In the Box:

  • 1x Morningstar SunGuard PWM Solar Regulator

Documents:

Morningstar SG4 SunGuard PWM Solar Regulator - Datasheet Morningstar SG4 SunGuard PWM Solar Regulator - Operation Manual

Product Specifications

MPN SG-4
Adjustable charging params No
Battery bank voltage 12
Brands Morningstar
Compatible battery types Sealed, Flooded
Display interface No
Family SunGuard
Grounding polarity Negative Ground
Height 5.1
Ip rating Epoxy encapsulated
Length 6.4
Load control a dc No
Low voltage disconnect lvd No
Mounting Wall
Regulator type PWM Solar Regulator
Remote communications No
Suggested solar capacity w 65 for 12V Batteries
Temperature compensated Yes - without using a temp sensor
Temperature range 4.5
Temperature range c -40?C to +85?C
Width 3.8
