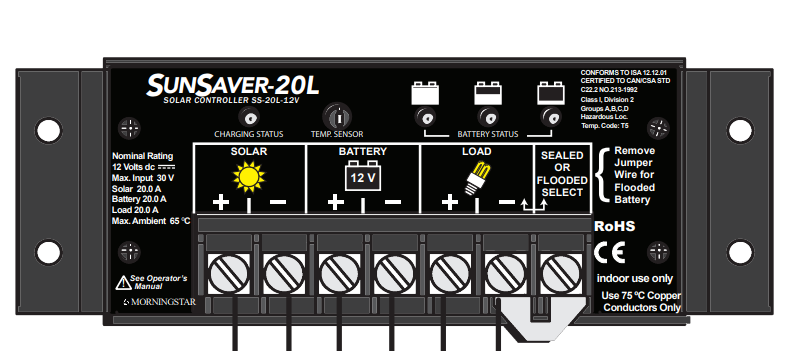

Morningstar SS-20L-12V G3 SunSaver PWM Solar Regulator, 20A, 12V, LVD

Morningstar SS-20L-12V G3 SunSaver PWM Solar Regulator, 20A, 12V, LVD

On backorder

Item ID:
168031018
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SS-20L-12V
Send Request for Quote (RFQ) Discount Offers
Morningstar SS-20L-12V G3 SunSaver PWM Solar Regulator; 20A 12V; LVD. Solar regulator for small PV systems in recreation and industrial markets.
Regular price $306.00
Regular price $0.00 Sale price $306.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Morningstar SS-20L-12V G3 SunSaver PWM Solar Regulator is designed to provide reliable and efficient power management for solar systems. This controller handles a maximum current of 20A at 12V and includes Low Voltage Disconnect (LVD) for enhanced battery protection.

Product Features:

  • This regulator provides full electronic protections, ensuring safe and reliable operation.
  • It features four-stage battery charging, optimizing battery life and performance.
  • The device includes self-diagnostics to detect critical faults, enhancing system reliability.
  • It is equipped with a multi-color status LED for easy monitoring of system status.
  • The regulator is approved for use in hazardous locations around the globe, ensuring safety and compliance.
  • This product is designed for extremely high reliability, making it suitable for mission-critical applications.
  • It is built to withstand harsh environments, ensuring durability and long-term performance.
  • The device includes LVD to protect the battery from deep discharge.

Application Areas:

  • This regulator is ideal for demanding oilfield and mining installations.
  • It is perfect for industrial and consumer solar power systems requiring high reliability.
  • This product is beneficial for mission-critical applications where failure is not an option.
  • It is suitable for any setup that requires a robust and versatile solar regulator with LVD.

In the Box:

  • 1x Morningstar SS-20L-12V G3 SunSaver PWM Solar Regulator

Documents:

Morningstar SunSaver PWM Solar Regulator - Datasheet Morningstar SunSaver PWM Solar Regulator - Operation Manual Morningstar SunSaver PWM Solar Regulator - Quick Start Guide

Product Specifications

MPN SS-20L-12V
Adjustable charging params No
Battery bank voltage 12
Brands Morningstar
Compatible battery types Sealed, Flooded
Display interface LED
Family SunSaver
Grounding polarity Negative Ground
Height 5.5
Ip rating Epoxy encapsulation, marine-rated terminals
Length 3.4
Load control a dc 20
Low voltage disconnect lvd Yes
Mounting Wall
Regulator type PWM Solar Regulator
Remote communications No
Suggested solar capacity w 300 for 12V Batteries
Temperature compensated No
Temperature range 20
Temperature range c -40?C to +60?C
Width 15.2
