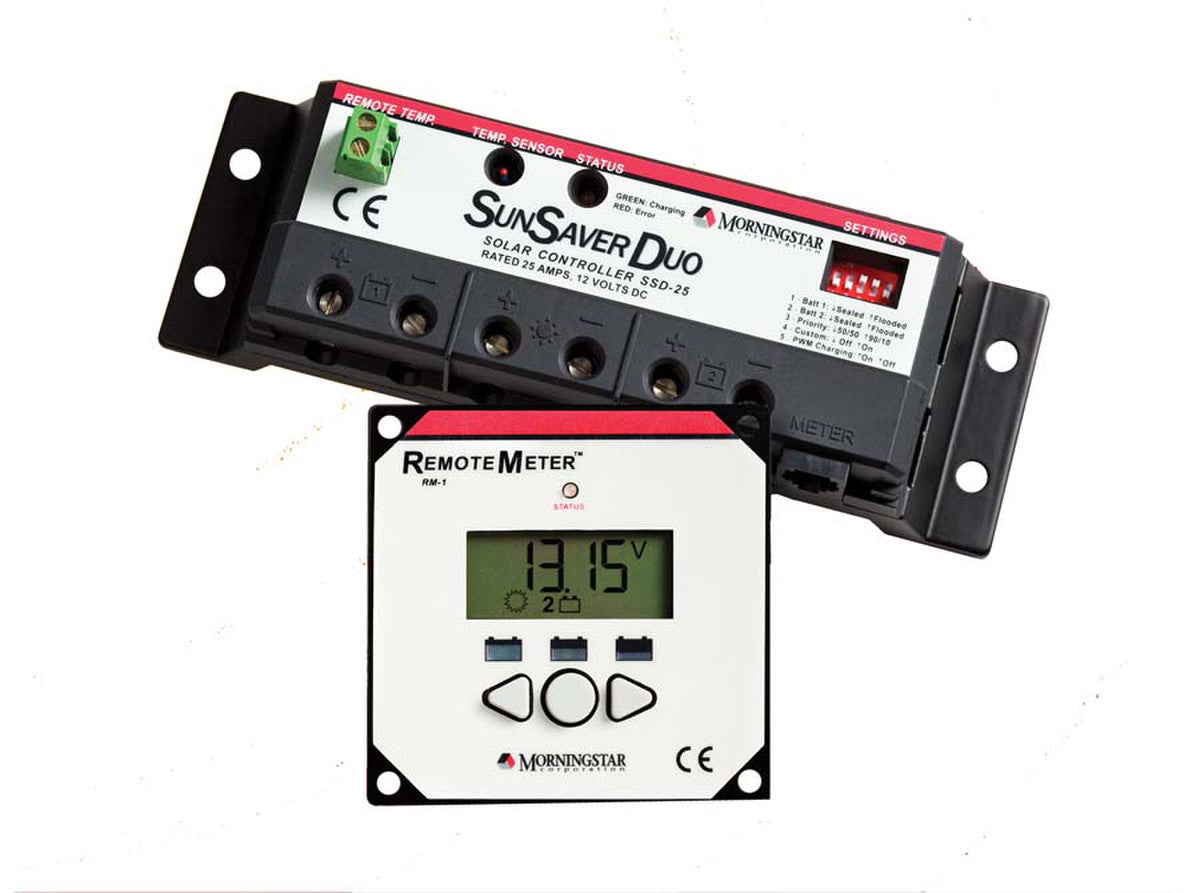

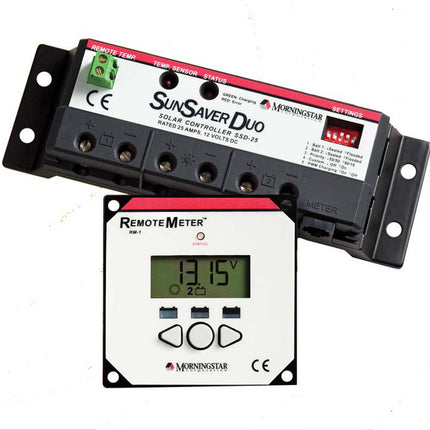

Morningstar SS-DUO SunSaver Duo PWM Solar Regulator, 25A, 12V, Remote Meter

Morningstar SS-DUO SunSaver Duo PWM Solar Regulator, 25A, 12V, Remote Meter

On backorder

Item ID:
168031054
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SSD-25RM
Send Request for Quote (RFQ) Discount Offers
Morningstar SunSaver Duo PWM Solar Regulator; 25A 12V; Remote Meter. Dual battery charge controller with remote meter for larger PV systems.
Regular price $484.50
Regular price $0.00 Sale price $484.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Morningstar SunSaver Duo PWM Solar Regulator is an advanced two-battery controller designed for RVs, caravans, boats, and cottages. This regulator is rated for 25 amps at 12 volts DC, providing efficient and reliable solar energy management for various applications.

Product Features:

  • This regulator is capable of charging two separate and isolated batteries simultaneously, such as a “house” battery and an engine battery, based on user-selectable priorities.
  • It offers a lower cost solution for efficient solar energy management.
  • The device is easy to install, making it user-friendly for various applications.
  • It ensures longer battery life through improved charging techniques.
  • The regulator is highly reliable, built on the same platform as Morningstar’s legendary SunSaver.
  • It supports a battery voltage of 12 volts, with a minimum battery voltage of 1 volt and a maximum of 15 volts.
  • The maximum solar voltage supported by this device is 30 volts.
  • The self-consumption of the controller ranges from 6 to 10 milliamps, while the remote meter consumes 6 to 15 milliamps.

Application Areas:

  • This regulator is ideal for off-grid solar power systems in RVs and caravans, ensuring reliable energy management.
  • It is suitable for boats, providing dependable power solutions for marine applications.
  • The device is perfect for cottages, offering efficient and reliable solar energy management.
  • It is beneficial for remote battery backup installations, ensuring dependable power storage.
  • This regulator is also suitable for solar-powered cabins, RVs, boats, and tiny homes, providing versatile energy solutions.

In the Box:

  • 1x Morningstar SunSaver Duo PWM Solar Regulator.
  • Remote Meter.

Documents:

Morningstar SunSaver Duo Solar Controller - Datasheet Morningstar SunSaver Solar Controller - Operation Manual

Product Specifications

MPN SSD-25RM
Adjustable charging params No
Battery bank voltage 12
Brands Morningstar
Compatible battery types Sealed, Flooded, Two banks
Display interface LCD
Family SunSaver Duo
Grounding polarity Negative Ground
Height 5.6
Ip rating Epoxy encapsulated
Length 4.1
Load control a dc No
Low voltage disconnect lvd No
Mounting Wall
Regulator type PWM Solar Regulator
Remote communications Yes, optional accessory required
Suggested solar capacity w 375 for 12V Batteries
Temperature compensated Yes - temp sensor sold separately
Temperature range 25
Temperature range c -40?C to +45?C
Width 17
