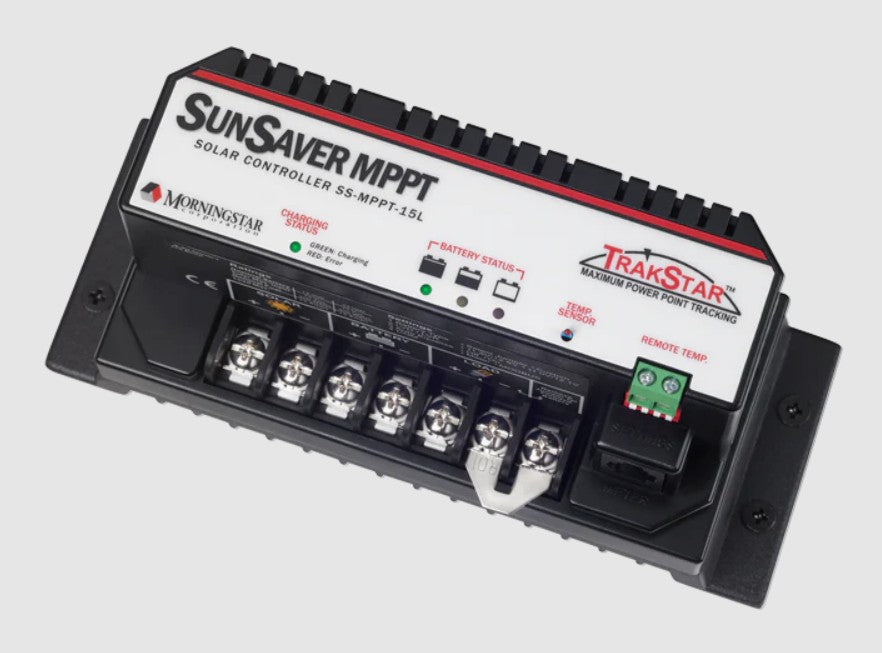

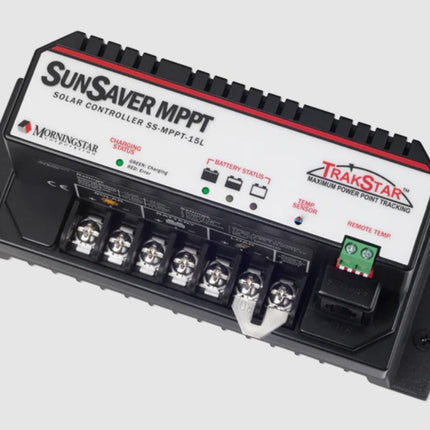

Morningstar SS-MPPT-15L SunSaver Solar Regulator, 15A, 12-24V/75V

Morningstar SS-MPPT-15L SunSaver Solar Regulator, 15A, 12-24V/75V

Available

Item ID:
168031073
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SS-MPPT-15L
Send Request for Quote (RFQ) Discount Offers
Morningstar SunSaver MPPT Solar Regulator; 15A 12-24V / 75V, is an advanced MPPT battery charger for off-grid photovoltaic (PV) systems.
Regular price $743.00
Regular price $0.00 Sale price $743.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Morningstar SS-MPPT-15L SunSaver Solar Regulator is designed to maximize energy harvest and reduce system costs in solar power applications. This regulator handles a maximum current of 15A and operates at 12-24V, making it suitable for various setups.

Product Features:

  • This regulator maximizes energy harvest, ensuring efficient power management.
  • It supports the use of high voltage modules, providing flexibility in system design.
  • The device helps lower system costs by optimizing performance and reducing component requirements.
  • It offers personal computer connectivity, allowing for easy monitoring and control.
  • The regulator is approved for use in hazardous locations around the globe, ensuring safety and compliance.
  • It features a peak efficiency of 97.5%, ensuring minimal energy loss.
  • The device operates at a nominal battery voltage of 12 or 24 volts, providing reliable performance.
  • It includes a maximum battery charging current of 15 amps, ensuring efficient charging.

Application Areas:

  • This regulator is ideal for solar power systems requiring efficient energy harvest and cost-effective solutions.
  • It is perfect for residential and commercial solar installations using high voltage modules.
  • This product is beneficial for off-grid applications where reliable power management is essential.
  • It is suitable for any setup that requires a robust and versatile solar regulator approved for hazardous locations.

In the Box:

  • 1x Morningstar SS-MPPT-15L SunSaver Solar Regulator

Documents:

Morningstar SS-MPPT-15L SunSaver Solar Regulator - Datasheet Morningstar SS-MPPT-15L SunSaver Solar Regulator - Operation Manual Morningstar SS-MPPT-15L SunSaver Solar Regulator - Quick Start Guide

Product Specifications

MPN SS-MPPT-15L
Adjustable charging params No
Battery bank voltage 12, 24
Brands Morningstar
Cec list category Power Conversion Equipment
Cec list expiry date 45514
Cec list model number SS-MPPT-15L
Compatible battery types Sealed, Flooded
Display interface LED & optional display
Family SunSaver MPPT
Grounding polarity Negative
Height 10
Ip rating IP10
Length 10
Load control a dc 15
Low voltage disconnect lvd Yes
Max solar array voc v dc 75
Mounting Wall
Regulator type MPPT Solar Regulator
Remote communications Yes, optional accessory required
Suggested solar capacity w 400 for 24V Batteries
Temperature compensated Yes - without using a temp sensor
Temperature range 15
Temperature range c -40?C to +60?C
Width 20
