Morningstar TS-M-2-600V TriStar Digital Meter for 600V MPPTs

Morningstar TS-M-2-600V TriStar Digital Meter for 600V MPPTs

Low stock

Item ID:
168031678
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
TS-M-2-600V
Send Request for Quote (RFQ) Discount Offers
Morningstar TriStar Digital Meter; Suits 600V MPPTs, mounts directly on MPPT 600V controller, replacing the blank meter cover on the wiring box lid.
Regular price $341.50
Regular price $0.00 Sale price $341.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

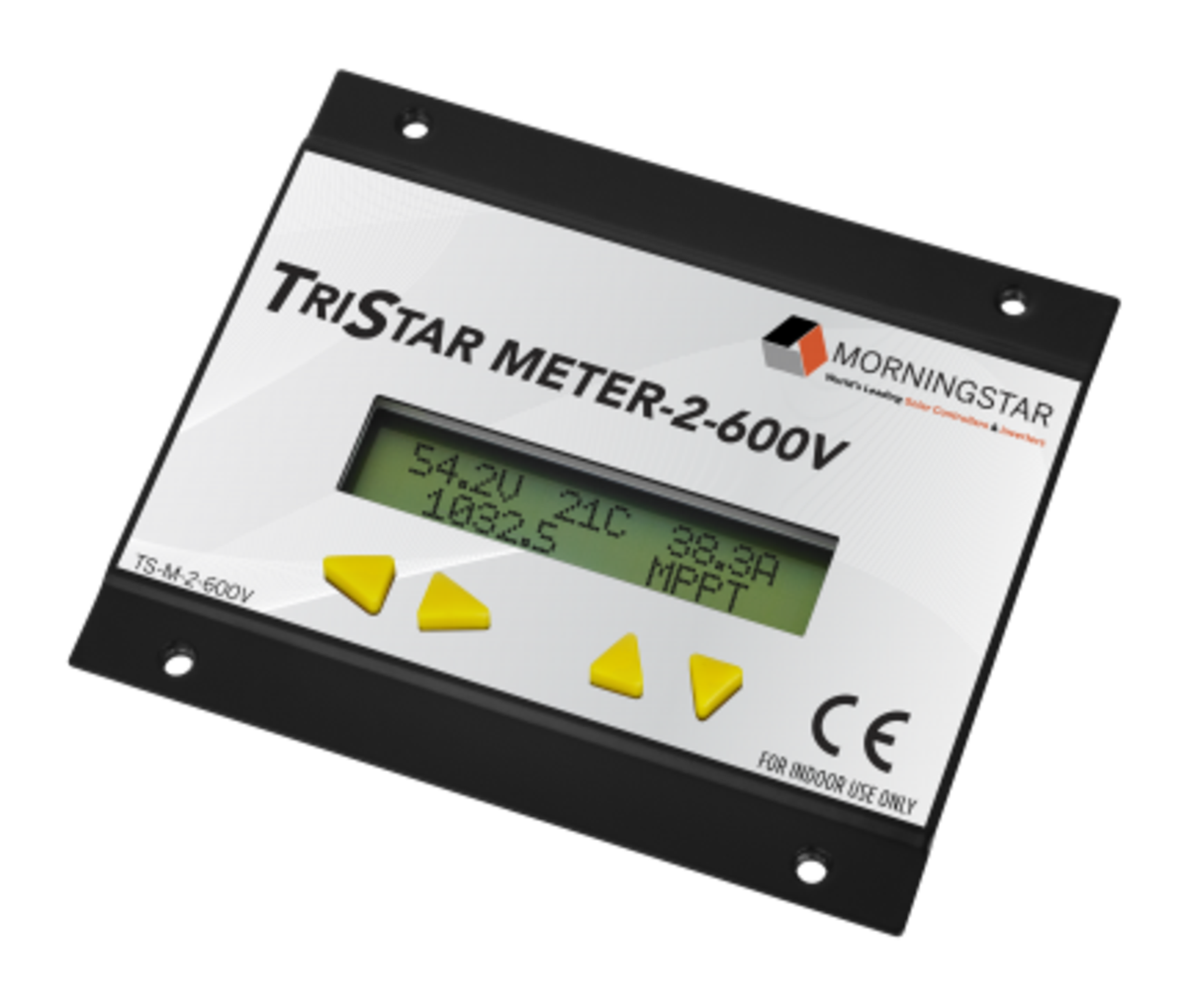

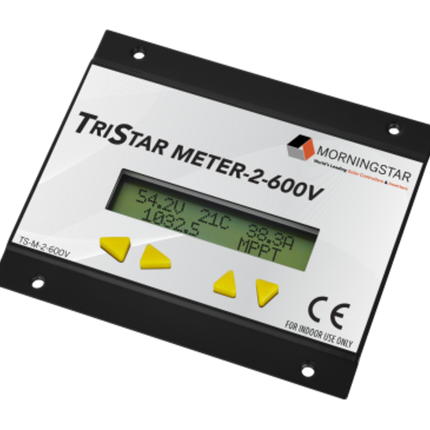

The Morningstar TS-M-2-600V TriStar Digital Meter is an advanced digital meter designed for use with 600V MPPT controllers. This meter provides comprehensive system and controller information, making it easy to monitor and troubleshoot solar power systems.

Product Features:

  • This meter features a 2 x 16 character LCD display that shows system and controller information, logged data, bar graph metering, alarms, and faults.
  • It is easy to install, using standard 6 conductor RJ-11 connectors.
  • The device supports both data and meterbus power flow over a single cable, simplifying installation.
  • It offers networking capability, displaying individual controller data from up to 15 TriStars with the optional Morningstar MeterHub.
  • The meter aggregates system data to show total charge, load, and battery charge/discharge state.
  • It auto-detects any device found on the network, ensuring seamless integration.
  • The device is easy to use, with four directional pushbuttons for easy navigation of display screens.
  • It includes backlighting to enhance readability, making it easy to monitor system status.

Application Areas:

  • This meter is ideal for monitoring and troubleshooting solar power systems using 600V MPPT controllers.
  • It is perfect for residential and commercial solar installations requiring detailed system information.
  • This product is beneficial for off-grid applications where precise monitoring is essential.
  • It is suitable for any setup that utilizes TriStar controllers and requires a reliable digital meter.

In the Box:

  • 1x Morningstar TS-M-2-600V TriStar Digital Meter

Documents:

Morningstar TS-M-2-600V TriStar Digital Meter - Datasheet

Product Specifications

MPN TS-M-2-600V
Brands Morningstar
Display interface LCD
Family TriStar MPPT 600V
Height 3.9
Length 17.7
Mounting Mounted to front of TS-MPPT-600V controller
Regulator type Accessory
Width 14.6
