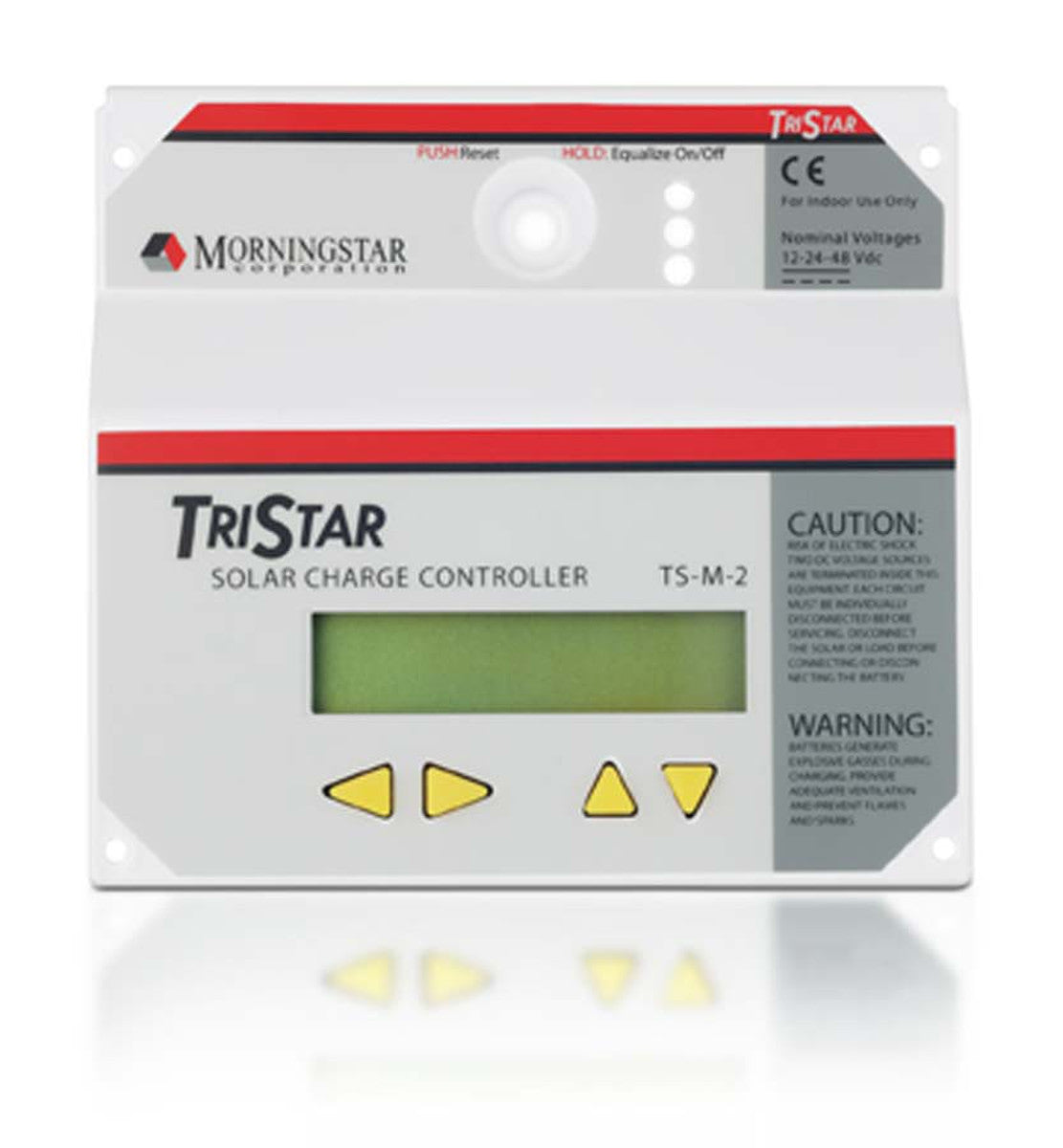

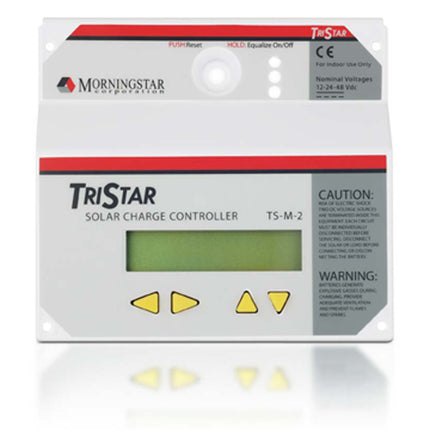

The Morningstar TS-M-2 TriStar Digital Meter is an advanced digital meter designed for use with PWM and 150V MPPT controllers. This meter provides comprehensive system and controller information, making it easy to monitor and troubleshoot solar power systems.

Product Features:

• This meter features a 2 x 16 character LCD display that shows system and controller information, logged data, bar graph metering, alarms, and faults.
• It is easy to install, using standard 6 conductor RJ-11 connectors.
• The device supports both data and meterbus power flow over a single cable, simplifying installation.
• It offers networking capability, displaying individual controller data from up to 15 TriStars with the optional Morningstar MeterHub.
• The meter aggregates system data to show total charge, load, and battery charge/discharge state.
• It auto-detects any device found on the network, ensuring seamless integration.
• The device is easy to use, with four directional pushbuttons for easy navigation of display screens.
• It includes backlighting to enhance readability, making it easy to monitor system status.

Application Areas:

• This meter is ideal for monitoring and troubleshooting solar power systems using PWM and 150V MPPT controllers.
• It is perfect for residential and commercial solar installations requiring detailed system information.
• This product is beneficial for off-grid applications where precise monitoring is essential.
• It is suitable for any setup that utilizes TriStar controllers and requires a reliable digital meter.

In the Box:

• 1x Morningstar TS-M-2 TriStar Digital Meter

Documents:

Morningstar TS-M-2 TriStar Digital Meter - Datasheet Morningstar TS-M-2 TriStar Digital Meter - Operation Manual
