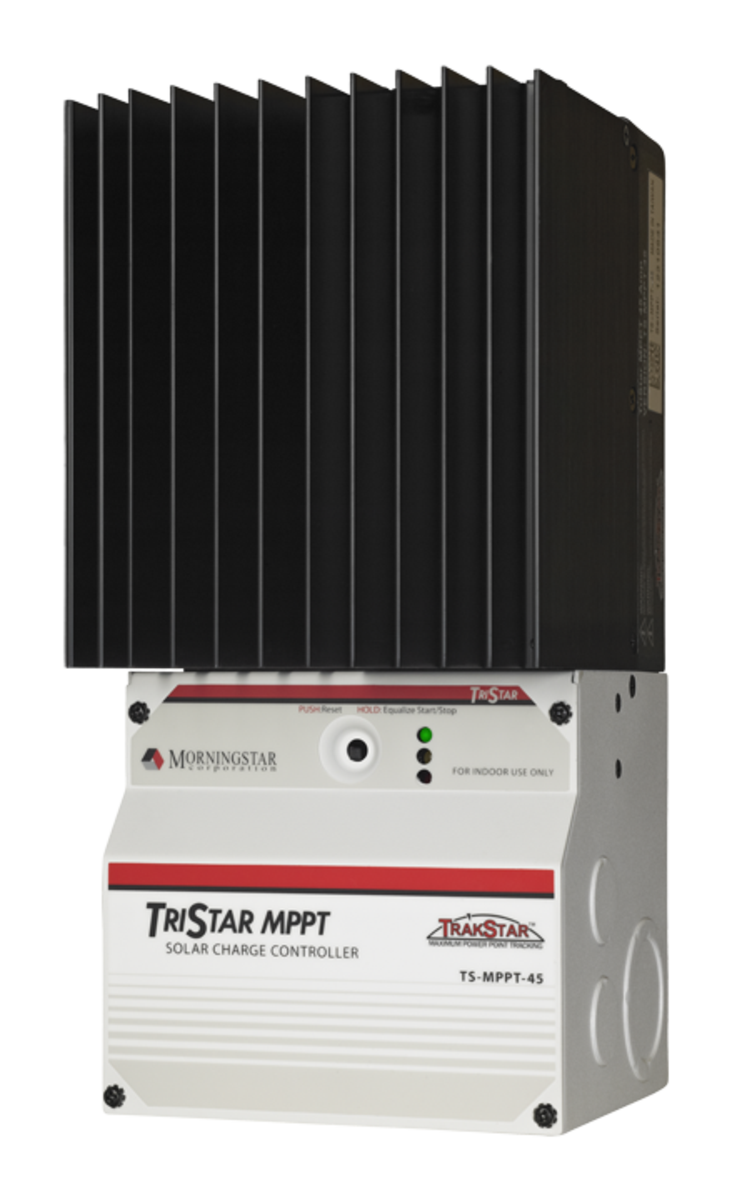

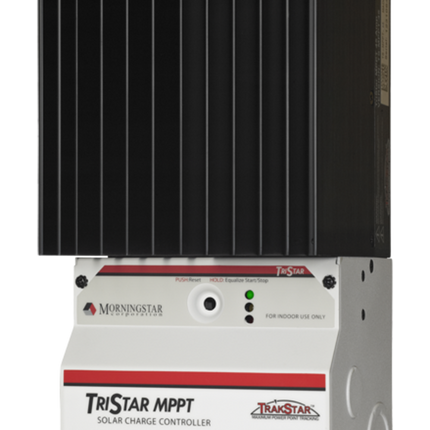

Morningstar TS-MPPT-45 TriStar Solar Regulator, 45A, 12-48V/150V

Morningstar TS-MPPT-45 TriStar Solar Regulator, 45A, 12-48V/150V

Available

Item ID:
168031686
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
TS-MPPT-45
Send Request for Quote (RFQ) Discount Offers
Morningstar TriStar MPPT Solar Regulator; 45A 12-48V / 150V, solar controller for off-grid photovoltaic (PV) systems up to 2.4kW.
Regular price $1,403.00
Regular price $0.00 Sale price $1,403.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Morningstar TS-MPPT-45 TriStar Solar Regulator is an advanced maximum power point tracking (MPPT) battery charger designed for off-grid photovoltaic (PV) systems. With TrakStar Technologyâ„¢, this controller maximizes energy harvest and provides the industry's highest peak efficiency of 99%, significantly reducing power loss.

Product Features:

  • This regulator maximizes energy harvest with a smart tracking algorithm that rapidly finds the solar array peak power point.
  • It features power point tracking with extremely fast sweeping of the entire I-V curve.
  • The device offers extremely high reliability, ensuring consistent performance in demanding conditions.
  • It includes metering and data logging capabilities, with up to 200 days of data logging.
  • The regulator provides extensive networking and communications capabilities, including on-board Ethernet for a fully web-enabled interface.
  • It supports detailed battery programming options for advanced battery support, including Lithium, Nickel Cadmium, and Lead Acid battery types.
  • The device operates at a nominal battery voltage of 12-48V and handles a maximum current of 45A.

Application Areas:

  • This regulator is ideal for off-grid PV systems requiring efficient energy harvest and reliable power management.
  • It is perfect for residential and commercial solar installations using high voltage modules.
  • This product is beneficial for off-grid applications where precise monitoring and data logging are essential.
  • It is suitable for any setup that requires a robust and versatile solar regulator with advanced networking capabilities.

In the Box:

  • 1x Morningstar TS-MPPT-45 TriStar Solar Regulator

Documents:

Morningstar TS-MPPT TriStar Solar Regulator - Datasheet Morningstar TS-MPPT TriStar Solar Regulator - Operation Manual Morningstar TS-MPPT TriStar Solar Regulator - Quick Start Guide

Product Specifications

Add gtin 719826772519
MPN TS-MPPT-45
Adjustable charging params Fully Programmable
Battery bank voltage 12, 24, 48
Brands Morningstar
Cec list category Power Conversion Equipment
Cec list expiry date 45514
Cec list model number TS-MPPT-45
Compatible battery types GEL, Flooded, AGM, Lithium, Other
Display interface LED & optional display
Family TriStar MPPT
Grounding polarity Negative
Height 2.91
Ip rating IP20
GTIN/EAN 719826772519
Length 14.2
Load control a dc Via Relay Driver RD-1 or TS controller
Low voltage disconnect lvd Via Relay & Accessory
Max solar array voc v dc 150
Mounting Wall
Regulator type MPPT Solar Regulator
Remote communications Yes
Suggested solar capacity w 2400 for 48V Batteries
Temperature compensated Yes - temp sensor included
Temperature range 45
Temperature range c -40?C to +80 (de-rates above 45?C)
Width 13
