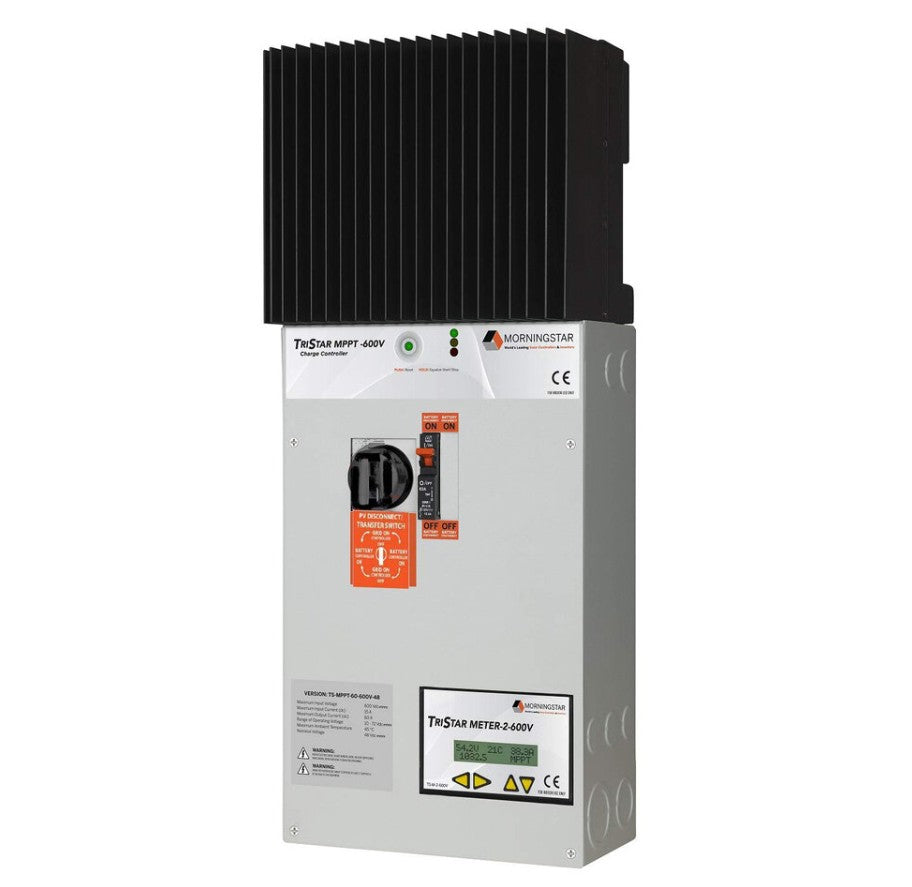

Morningstar TS-MPPT-60-600V-48-DB TriStar MPPT Solar Regulator, 60A, 12-48V/600V with Disconnect Box

Morningstar TS-MPPT-60-600V-48-DB TriStar MPPT Solar Regulator, 60A, 12-48V/600V with Disconnect Box

Low stock

Item ID:
168031694
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
TS-MPPT-60-60048DB
Send Request for Quote (RFQ) Discount Offers
Morningstar TS-MPPT-60-600V-48-DB TriStar MPPT Solar Regulator; 60A 12-48V / 600V; +Disconnect Box No meter (TS-M-2-600V is optional).
Regular price $3,696.00
Regular price $0.00 Sale price $3,696.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Morningstar TS-MPPT-60-600V-48-DB TriStar MPPT Solar Regulator is a breakthrough in charge controller design, offering high-voltage capacity and exceptional performance for solar system designers and installers. This controller enables the construction of systems with longer and fewer individual strings, reducing wiring, cable, and breaker costs, and simplifying installations.

Product Features:

  • This regulator supports high voltage capacity, accepting PV array input up to 600 Voc with 97.9% peak efficiency.
  • It features a fanless design, improving service life, increasing reliability, and raising efficiency.
  • The device maximizes energy harvest with agile control software and over-spec’d components optimized through advanced thermal and electronic engineering.
  • It provides extremely high reliability, ensuring consistent performance in demanding conditions.
  • The regulator offers very high efficiency, significantly reducing power loss compared to other MPPT controllers.
  • It includes extensive communications capabilities, allowing for seamless integration with other system components.
  • The device is uniquely suited for retrofitting existing grid-tied solar installations with energy storage for backup power in a DC-coupled configuration connected to batteries.
  • It supports detailed battery programming options for advanced battery support, including Lithium, Nickel Cadmium, and Lead Acid battery types.

Application Areas:

  • This regulator is ideal for high-voltage solar power systems requiring efficient energy harvest and reliable power management.
  • It is perfect for residential and commercial solar installations using high voltage modules.
  • This product is beneficial for retrofitting existing grid-tied solar installations with energy storage for backup power.
  • It is suitable for any setup that requires a robust and versatile solar regulator with advanced networking capabilities.

In the Box:

  • 1x Morningstar TS-MPPT-60-600V-48-DB TriStar MPPT Solar Regulator with Disconnect Box

Documents:

Morningstar TriStar MPPT 600V Solar Regulator - Datasheet Morningstar TriStar MPPT 600V Solar Regulator - Operation Manual

Product Specifications

MPN TS-MPPT-60-60048DB
Adjustable charging params Fully Programmable
Battery bank voltage 12, 24, 36, 48, 60
Brands Morningstar
Cec list category Not Listed
Cec list model number TS-MPPT-60-600V-48-DB
Compatible battery types GEL, Flooded, AGM, Lithium, Other
Display interface LED & optional display
Family TriStar MPPT 600V
Grounding polarity Negative
Height 54.2
Ip rating IP20 indoor and vented
Length 14.9
Load control a dc Via Relay Driver RD-1 or TS controller
Low voltage disconnect lvd Via Relay & Accessory
Max solar array voc v dc 600
Mounting Wall
Regulator type MPPT Solar Regulator
Remote communications Yes
Suggested solar capacity w 3200 for 48V Batteries
Temperature compensated Yes - temp sensor included
Temperature range 60
Temperature range c -40?C to +80 (de-rates above 45?C)
Width 22.1
