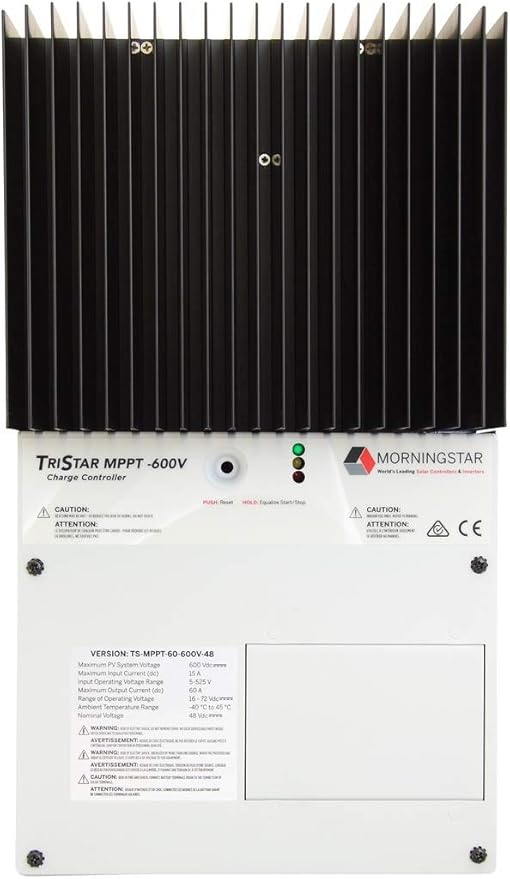

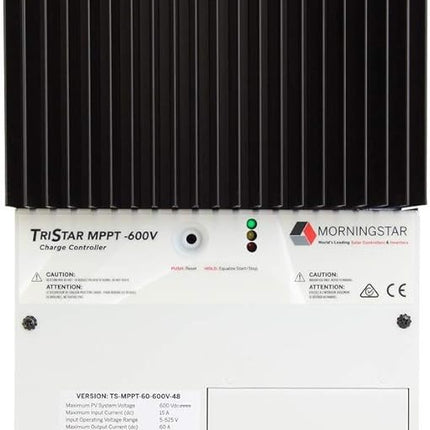

Morningstar TS-MPPT-60-600V-48 TriStar MPPT Solar Regulator, 60A, 12-48V/600V

Morningstar TS-MPPT-60-600V-48 TriStar MPPT Solar Regulator, 60A, 12-48V/600V

On backorder

Item ID:
168031691
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
TS-MPPT-60-600V-48
Send Request for Quote (RFQ) Discount Offers
Morningstar TS-MPPT-60-600V-48 TriStar MPPT Solar Regulator; 60A 12-48V / 600V, uses advanced power electronics to efficiently utilise up to 600 Voc PV
Regular price $3,230.00
Regular price $0.00 Sale price $3,230.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Morningstar TS-MPPT-60-600V-48 TriStar MPPT Solar Regulator is a high-voltage charge controller designed for 60A with 12-48V systems and a maximum input voltage of 600V. This breakthrough in charge controller design offers numerous benefits for solar system designers and installers, making it an ideal choice for various applications.

Product Features:

  • This Morningstar TS-MPPT-60-600V-48 Solar Regulator supports high voltage capacity, accepting PV array input up to 600 Voc, which allows for longer and fewer individual strings, reducing wiring, cable, and breaker costs.
  • It features extremely high reliability, with no cooling fans required, thanks to agile control software and over-spec’d components optimized through advanced thermal and electronic engineering.
  • The device achieves very high efficiency, with a peak efficiency of 97.9%, maximizing energy harvest.
  • It includes advanced communications capabilities, providing flexibility and integration with various monitoring systems.
  • The fanless design improves service life, increases reliability, and raises efficiency, making it a remarkable technical achievement in high-voltage controllers.
  • The regulator is uniquely suited for retrofitting existing grid-tied solar installations with energy storage for backup power in a DC-coupled configuration connected to batteries.

Application Areas:

  • This regulator is ideal for off-grid solar power systems, ensuring reliable and efficient energy management.
  • It is suitable for retrofitting existing grid-tied solar installations, providing backup power and energy storage solutions.
  • The device is perfect for industrial solar applications, offering robust performance in demanding environments.
  • It is beneficial for large residential solar installations, providing efficient energy solutions for homes.
  • This regulator is also suitable for solar-powered commercial buildings, ensuring versatile and reliable energy management.

In the Box:

  • 1x Morningstar TS-MPPT-60-600V-48 TriStar MPPT Solar Regulator.

Documents:

Morningstar TriStar MPPT 600V Solar Regulator - Datasheet Morningstar TriStar MPPT 600V Solar Regulator - Operation Manual

Product Specifications

MPN TS-MPPT-60-600V-48
Adjustable charging params Fully Programmable
Battery bank voltage 12, 24, 36, 48, 60
Brands Morningstar
Cec list category Power Conversion Equipment
Cec list expiry date 20/07/2025
Cec list model number TS-MPPT-60-600V-48
Compatible battery types GEL, Flooded, AGM, Lithium, Other
Display interface LED & optional display
Family TriStar MPPT 600V
Grounding polarity Negative
Height 39.2
Ip rating IP20 indoor and vented
Length 14.9
Load control a dc Via Relay Driver RD-1 or TS controller
Low voltage disconnect lvd Via Relay & Accessory
Max solar array voc v dc 600
Mounting Wall
Regulator type MPPT Solar Regulator
Remote communications Yes
Suggested solar capacity w 3200 for 48V Batteries
Temperature compensated Yes - temp sensor included
Temperature range 60
Temperature range c -40?C to +80 (de-rates above 45?C)
Width 22.1
