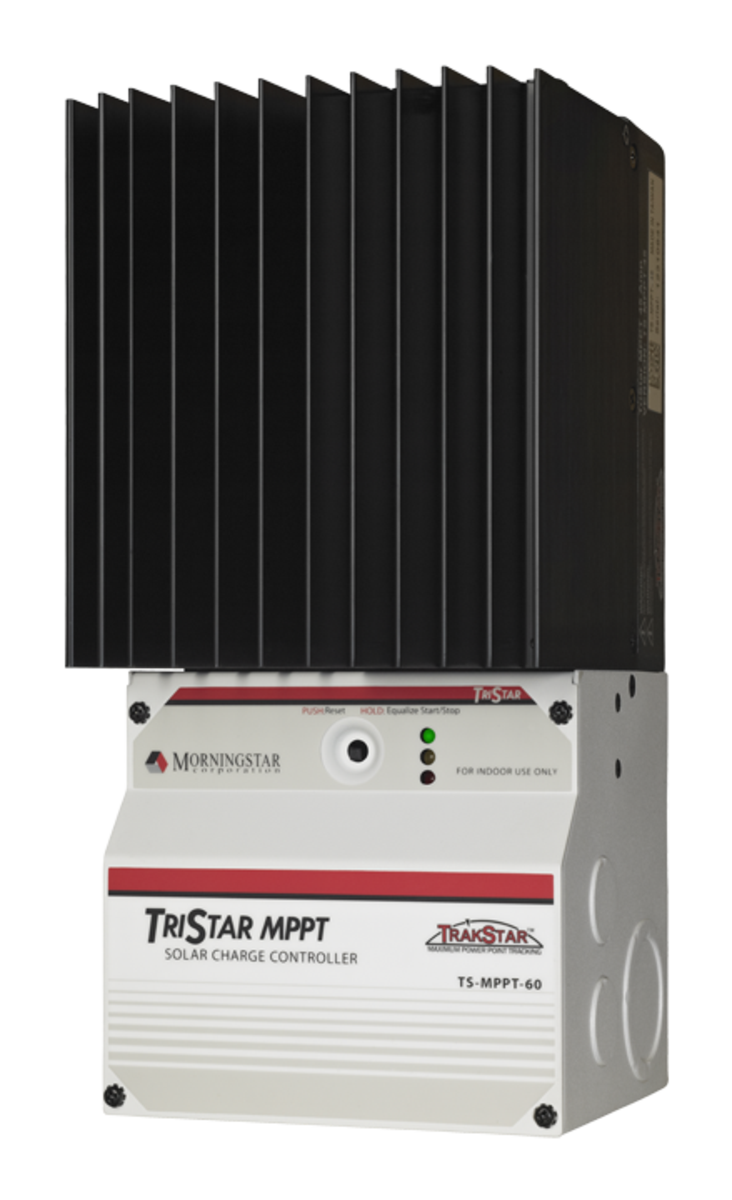

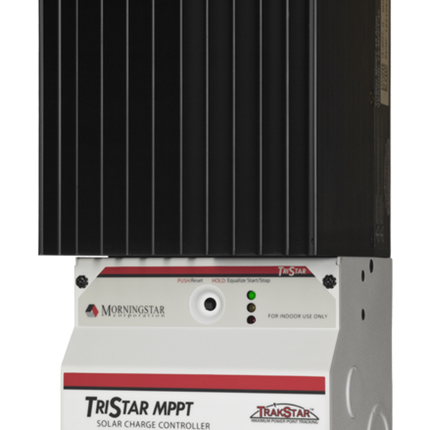

The Morningstar TS-MPPT-60 TriStar Solar Regulator is an advanced maximum power point tracking (MPPT) battery charger designed for off-grid photovoltaic (PV) systems. With TrakStar Technology, this controller maximizes energy harvest and provides the industry's highest peak efficiency of 99%, significantly reducing power loss.

Product Features:

• This regulator maximizes energy harvest with a smart tracking algorithm that rapidly finds the solar array peak power point.
• It features power point tracking with extremely fast sweeping of the entire I-V curve.
• The device offers extremely high reliability, ensuring consistent performance in demanding conditions.
• It includes metering and data logging capabilities, with up to 200 days of data logging.
• The regulator provides extensive networking and communications capabilities, including on-board Ethernet for a fully web-enabled interface.
• It supports detailed battery programming options for advanced battery support, including Lithium, Nickel Cadmium, and Lead Acid battery types.
• The device operates at a nominal battery voltage of 12-48V and handles a maximum current of 60A.

Application Areas:

• This regulator is ideal for off-grid PV systems requiring efficient energy harvest and reliable power management.
• It is perfect for residential and commercial solar installations using high voltage modules.
• This product is beneficial for off-grid applications where precise monitoring and data logging are essential.
• It is suitable for any setup that requires a robust and versatile solar regulator with advanced networking capabilities.

In the Box:

• 1x Morningstar TS-MPPT-60 TriStar Solar Regulator

Documents:

Morningstar TS-MPPT TriStar Solar Regulator - Datasheet Morningstar TS-MPPT TriStar Solar Regulator - Operation Manual Morningstar TS-MPPT TriStar Solar Regulator - Quick Start Guide
