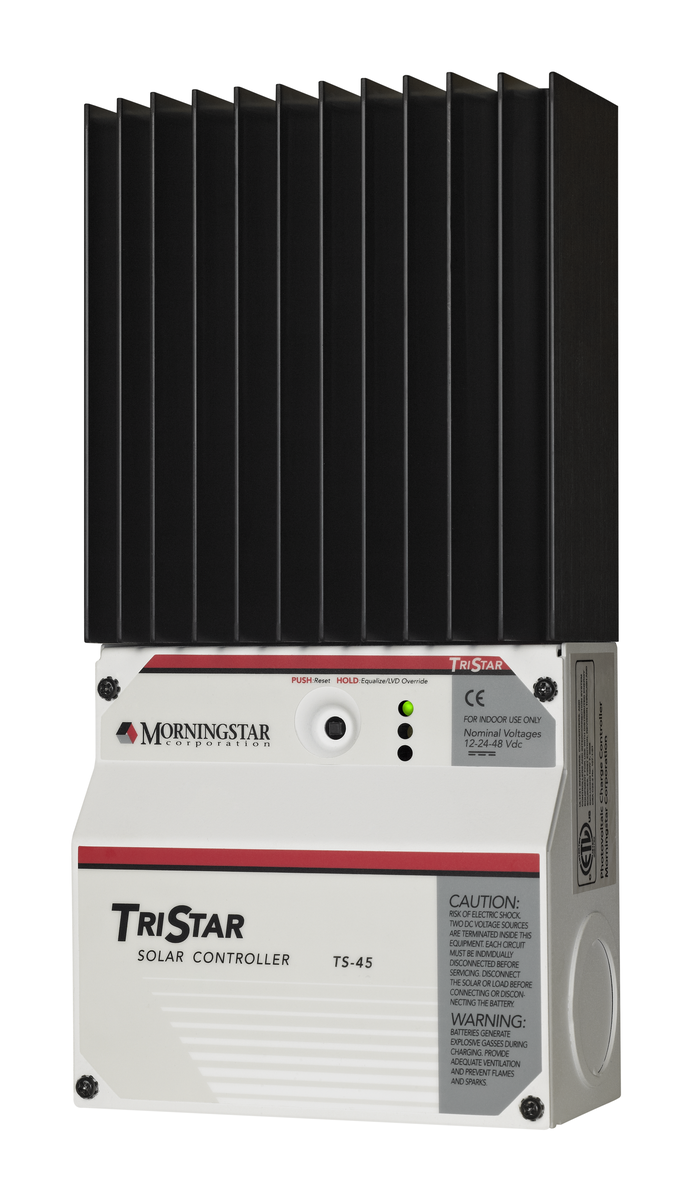

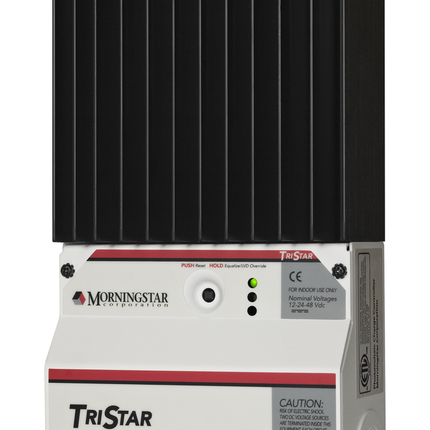

Morningstar TS45 TriStar PWM Solar Regulator, 12-48V, 48A

Morningstar TS45 TriStar PWM Solar Regulator, 12-48V, 48A

Low stock

Item ID:
168031670
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
TS45
Send Request for Quote (RFQ) Discount Offers
Morningstar TriStar TS-45 PWM Solar Regulator provides reliable solar battery charging, load control or diversion regulation. Rating: 12-48V, 48A.
Regular price $512.00
Regular price $0.00 Sale price $512.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Morningstar TS45 TriStar PWM Solar Regulator is a versatile three-function controller designed for larger solar systems. It provides reliable PWM solar battery charging, load control, or diversion regulation, making it ideal for various applications.

Product Features:

  • This regulator features a fanless design for long-term reliability, with no moving parts to fail.
  • It is fully adjustable with DIP switches for seven digital presets, allowing for customized settings.
  • The device is rated for operation at temperatures up to 60°C ambient, ensuring durability in harsh environments.
  • Additional custom settings can be configured via the RS-232 interface, providing flexibility.
  • The regulator offers high reliability, ensuring consistent performance in demanding conditions.
  • It supports more power, handling solar arrays of up to 48A at 12-48V.
  • The device includes extensive electronic protections, such as reverse polarity, short-circuit, overcurrent, and high temperature protection.
  • It provides better battery charging with detailed programming options and constant voltage series PWM algorithm.

Application Areas:

  • This regulator is ideal for agriculture, providing reliable power management for farming operations.
  • It is perfect for automation and control systems, ensuring efficient energy use.
  • This product is beneficial for lighting applications, offering precise control and protection.
  • It is suitable for mining operations, railroad systems, residential installations, and rural electrification projects.
  • The regulator is also ideal for RV-caravan and marine applications, security and surveillance systems, telecom setups, and traffic and signaling systems.

In the Box:

  • 1x Morningstar TS45 TriStar PWM Solar Regulator

Documents:

Morningstar TriStar PWM Solar Regulator - Datasheet Morningstar TriStar PWM Solar Regulator - Operation Manual Morningstar TriStar PWM Solar Regulator - Quick Start Guide

Product Specifications

MPN TS45
Adjustable charging params Fully Programmable
Battery bank voltage 12, 24, 48
Brands Morningstar
Cec list category Power Conversion Equipment
Cec list expiry date 45514
Cec list model number TS-45
Compatible battery types GEL, Flooded, AGM, Lithium, Other
Display interface LED & optional display
Family Tristar
Grounding polarity Negative
Height 10
Ip rating IP20
Length 30
Load control a dc 45A in charge control mode (two controllers required to do both charge and load control)
Low voltage disconnect lvd In Load Control Mode
Mounting Wall
Product height 7.1
Product length 26
Product width 12.7
Regulator type PWM Solar Regulator
Remote communications Yes
Suggested solar capacity w 2700 for 48V Batteries
Temperature compensated Yes - temp sensor sold separately
Temperature range 45
Temperature range c -40?C to +60?C
Width 15
